Samson TROVIS 5578-E - Page 7

KA 5578-E EN 7
Electrical connection
518
TROVIS 5578-E
15123
Type5257-5(x) Room Panel
1)
For RK1:
618
TROVIS 5578-E
16123
Type5257-5(x) Room Panel
1)
For RK2:
718
TROVIS 5578-E
17123
Type5257-5(x) Room Panel
1)
For RK3:
1)
Type5244 no longer available

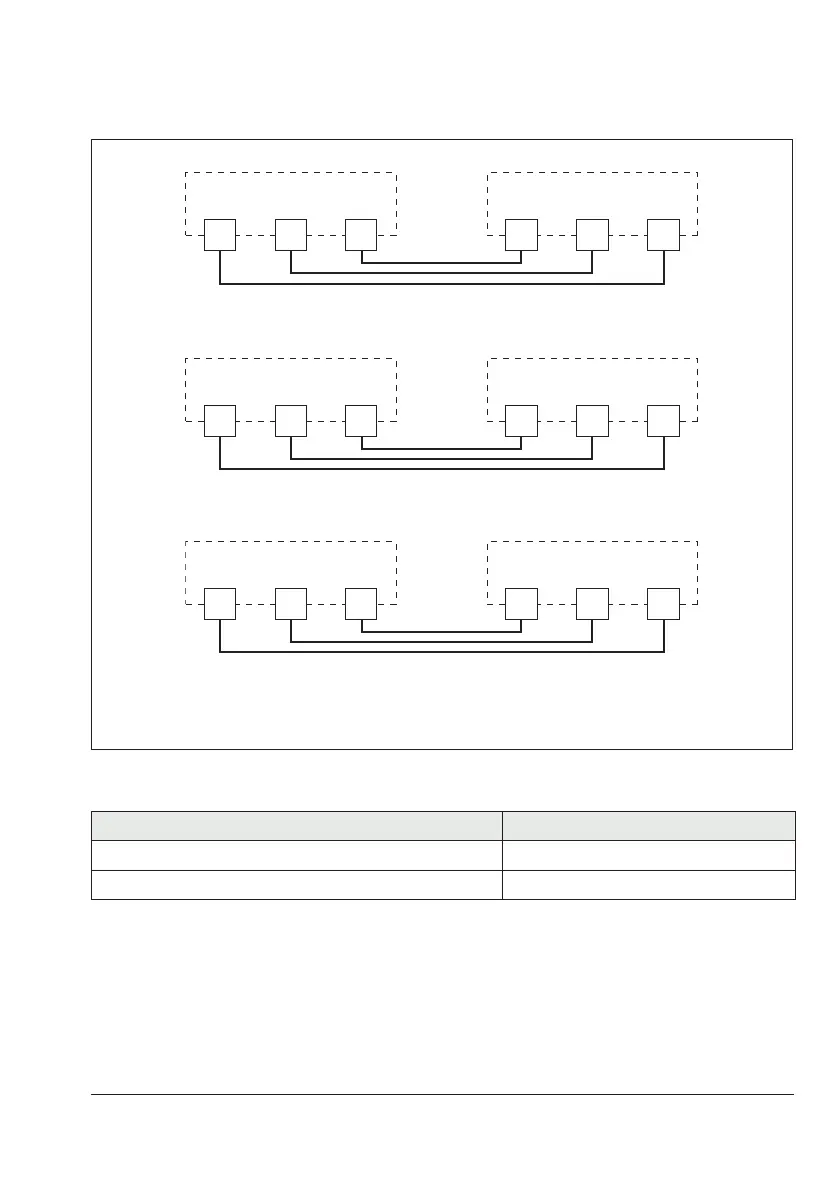

Fig.3: Wiring of a room panel for RK1, RK2 or RK3
Table1: Permissible wire cross-section for terminals
Cable Wire cross-section
Single-wire 0.33 to 2mm²
Multi-wire 0.33 to 2mm²
Length of insulation to be stripped off wire ends: 6mm
