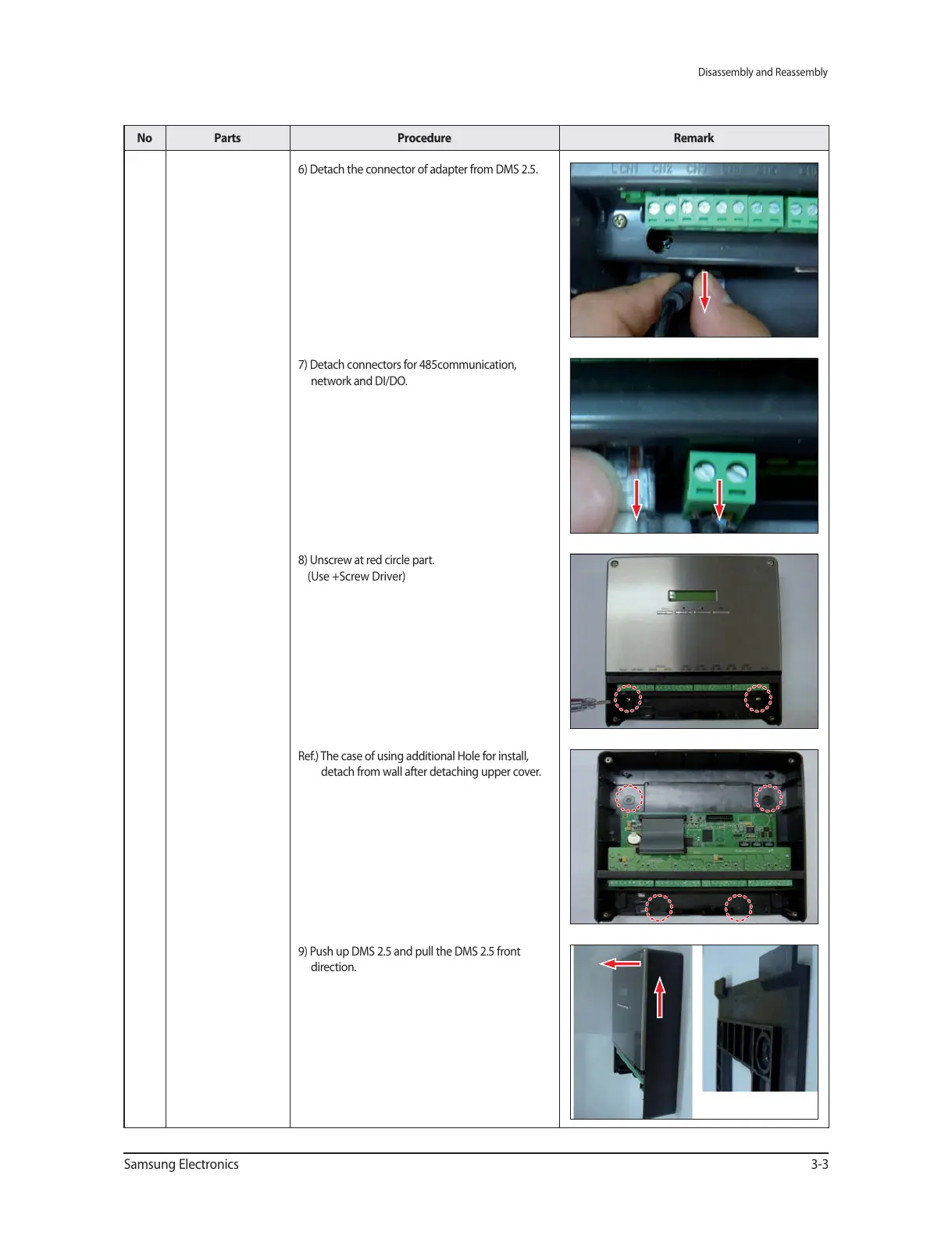

Disassembly and Reassembly
Samsung Electronics 3-3
No Parts Procedure Remark
6) Detach the connector of adapter from DMS 2.5.
7) Detach connectors for 485communication,
network and DI/DO.
8) Unscrew at red circle part.
(Use +Screw Driver)
Ref.) The case of using additional Hole for install,
detach from wall after detaching upper cover.
9) Push up DMS 2.5 and pull the DMS 2.5 front
direction.
