Samsung DMS2.5 User Manual

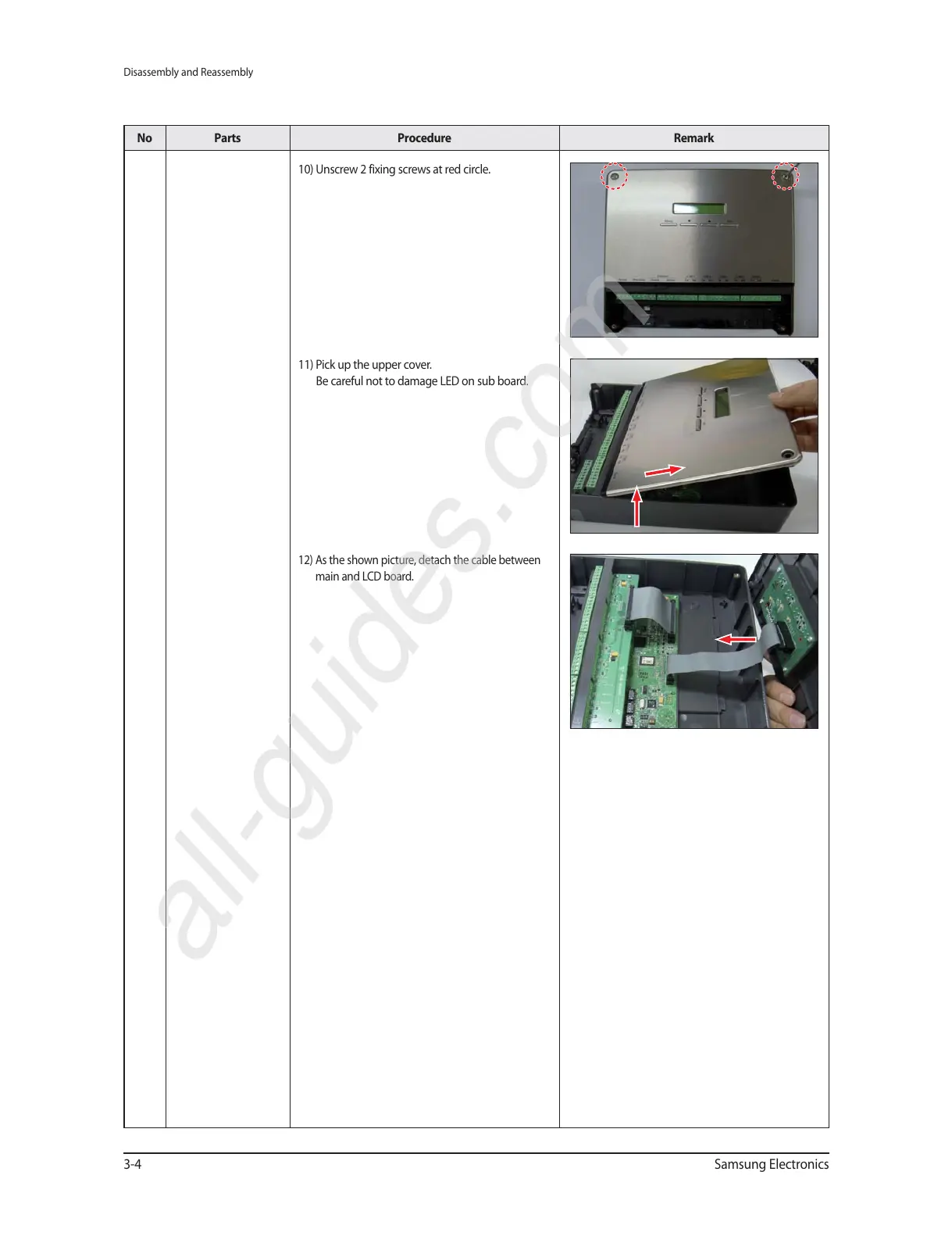

Disassembly and Reassembly
3-4 Samsung Electronics
No Parts Procedure Remark
10) Unscrew 2 fixing screws at red circle.
11) Pick up the upper cover.
Be careful not to damage LED on sub board.
12) As the shown picture, detach the cable between
main and LCD board.
