Disassembly and Reassembly
Samsung Electronics 3-5

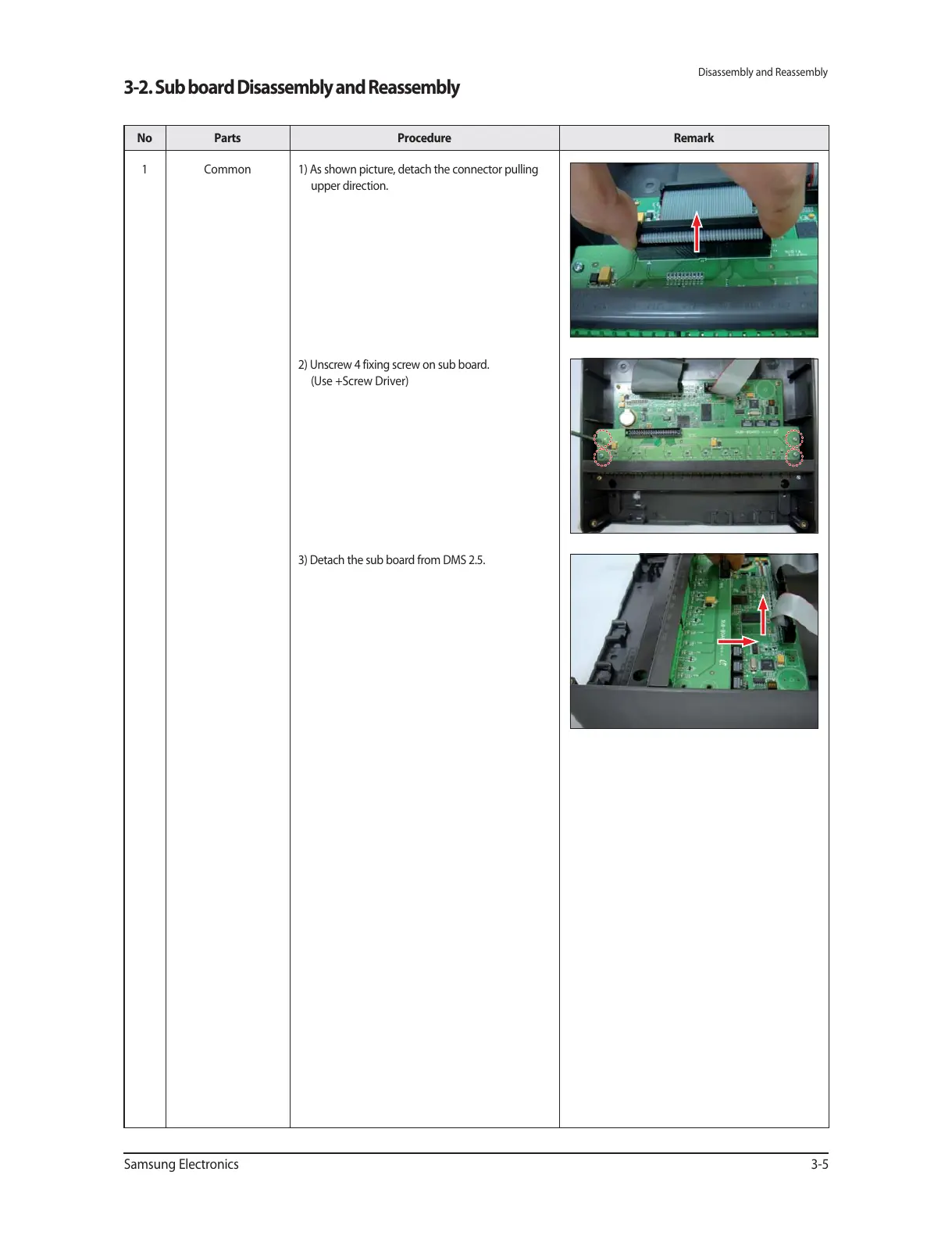

3-2. Sub board Disassembly and Reassembly
No Parts Procedure Remark
1 Common 1) As shown picture, detach the connector pulling
upper direction.
2) Unscrew 4 fixing screw on sub board.
(Use +Screw Driver)
3) Detach the sub board from DMS 2.5.
