5. Cabinet + Frame Installation
◇ Installation Guide of recessed screen
When installing recessed screen, minimal work space is needed from the edge of the
screen.
– In order to finish seam adjustment, fixation parts should be installed on the screen edge. If the parts
are not installed, seam between modules could be made.
– The parts can be fixed on the screen by tools and space for tools are needed on the edge. Though
it may be dependent on your tools, more than 50mm is required in general.

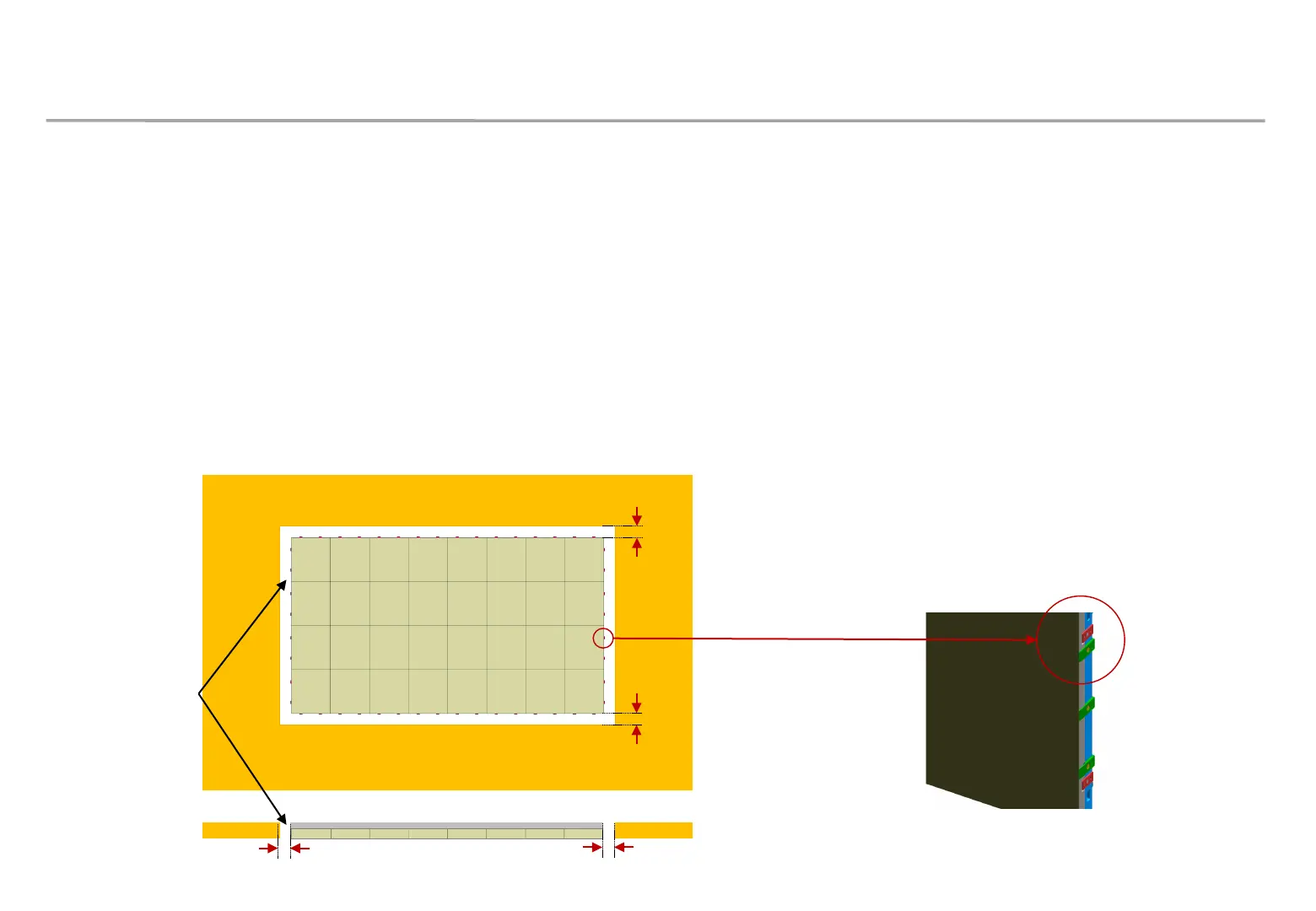

Top View
Front View
Left work space
[Fixation parts]
- The Wall : Holder PCB, Cover PCB
- IFH/IFJ/IER/IFR : Cover PCB
More than 50mm
Cabinet
Screen
