6. S-Box Installation and Connection
⑧ Cable recommendations for HDBaseT
 Do not use “comb” or “pinstripe” type cables.
 Use HDBaseT cables that are 15 m to 100 m long.
 Use HDBaseT Cables recommended at the following Alliance website.
HDBaseT Alliance website:
https://hdbaset.org/hdbaset-recommended-cables/
 Do not bend HDBaseT cables to ensure signal consistency.

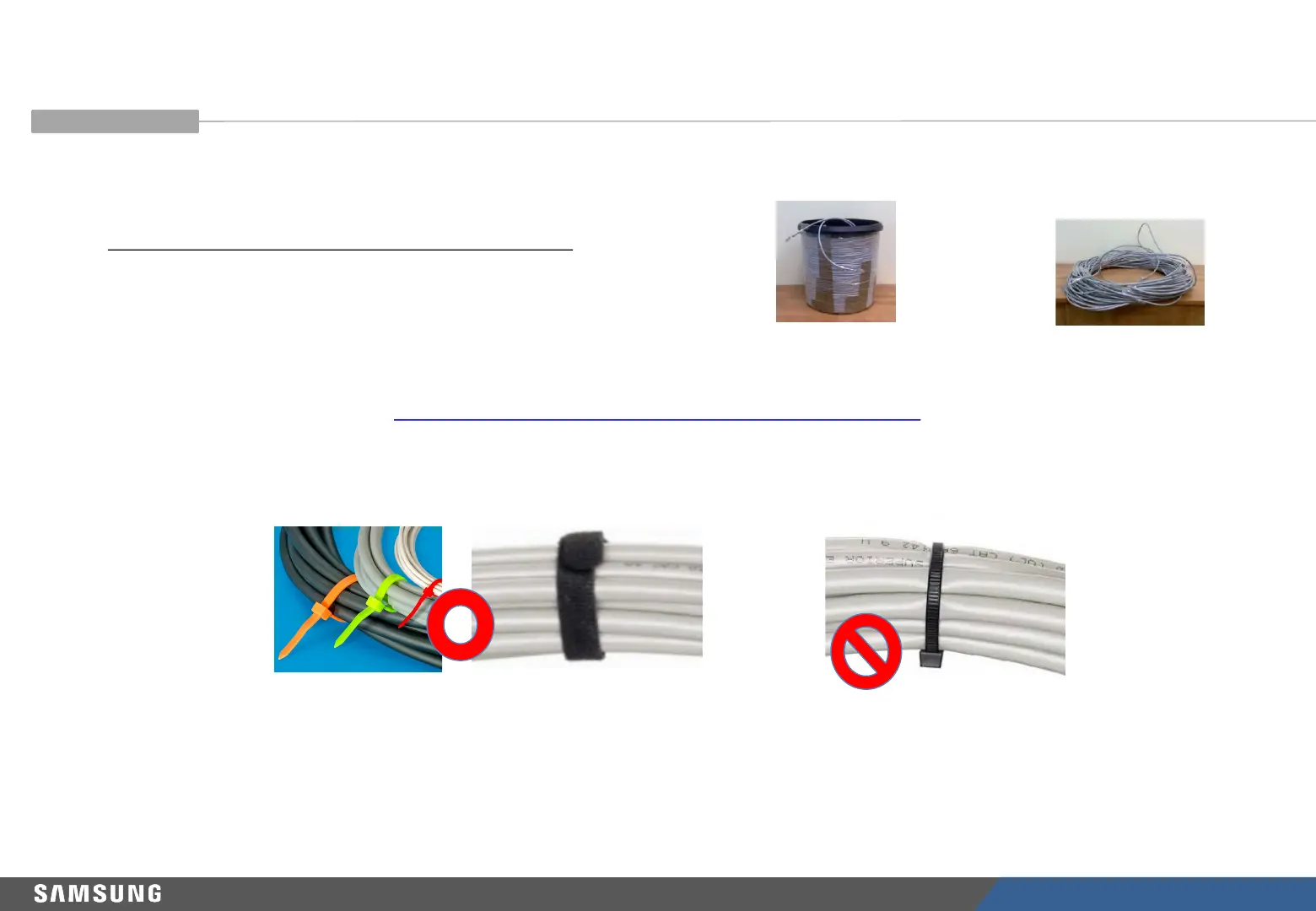

 When organizing HDBaseT cables, make sure the cables are not tied too tight.
 Do not bind HDBaseT cables and AC power cables together.
 EMI sources: Ensure that the product is placed away from the electromagnetic environment (e.g. high-voltage
wires, electric motor-based equipment such as an elevator or refrigerator, fluorescent lights, lighting fixture).
 Keep a distance of at least 12” (=30.48cm) between HDBaseT cables and AC power cables.
 A maximum of four cables connected to a single S-Box can be bounded together.
★ Orderly Rolled (Recommend) ★ Random Rolled
(Not Recommend)
• S-Box connection
