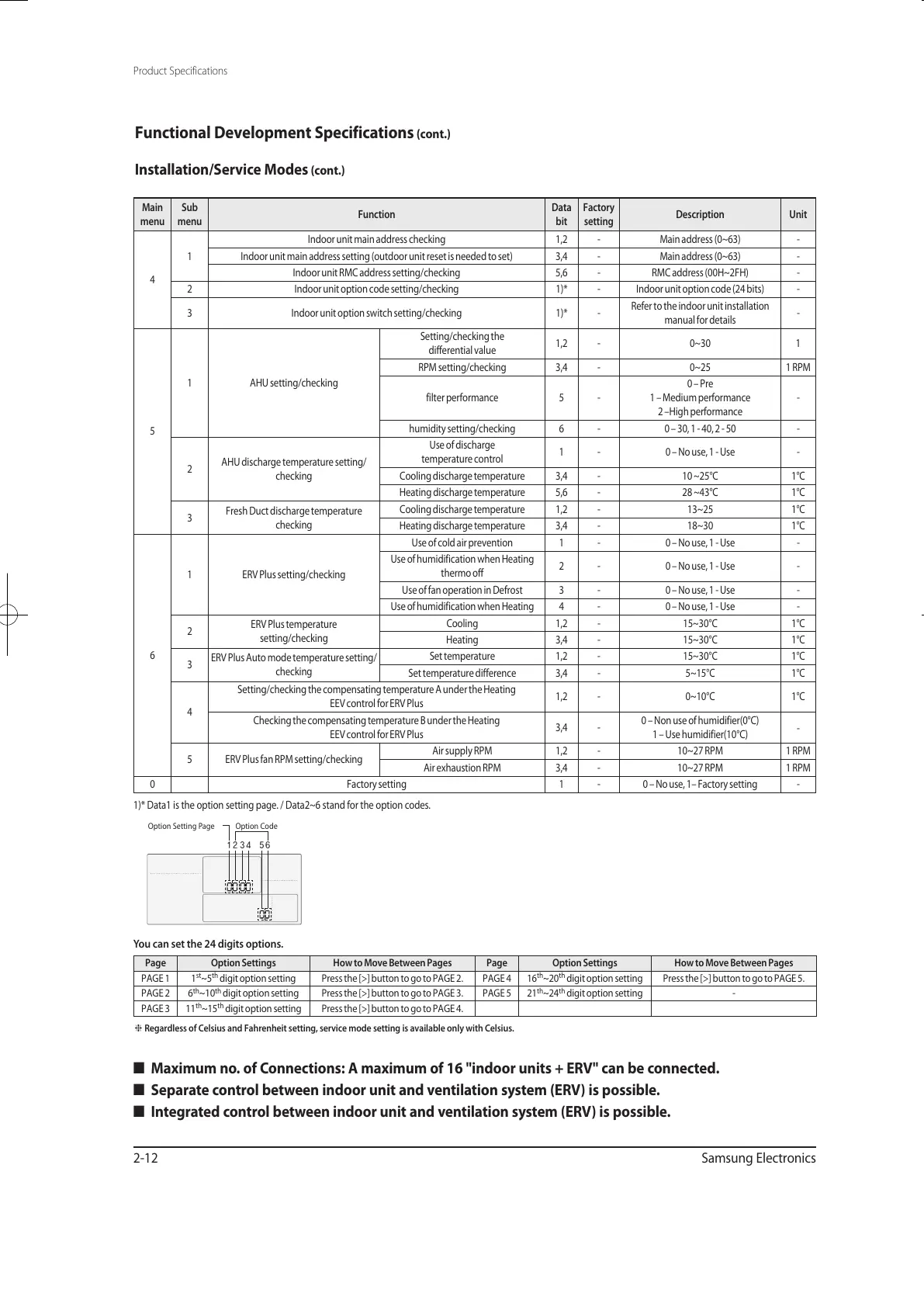

2-12 Samsung Electronics
Product Specifications
Functional Development Specifications (cont.)
Installation/Service Modes (cont.)
Main
menu
Sub
menu
Function
Data
bit
Factory
setting
Description Unit
4
1
Indoor unit main address checking 1,2 - Main address (0~63) -
Indoor unit main address setting (outdoor unit reset is needed to set) 3,4 - Main address (0~63) -
Indoor unit RMC address setting/checking 5,6 - RMC address (00H~2FH) -
2 Indoor unit option code setting/checking 1)* - Indoor unit option code (24 bits) -
3 Indoor unit option switch setting/checking 1)* -
Refer to the indoor unit installation
manual for details
-
5
1 AHU setting/checking
Setting/checking the
differential value
1,2 - 0~30 1
RPM setting/checking 3,4 - 0~25 1 RPM
filter performance 5 -
0 – Pre
1 – Medium performance
2 –High performance
-
humidity setting/checking 6 - 0 – 30, 1 - 40, 2 - 50 -
2
AHU discharge temperature setting/
checking
Use of discharge
temperature control
1 - 0 – No use, 1 - Use -
Cooling discharge temperature 3,4 - 10 ~25°C 1°C
Heating discharge temperature 5,6 - 28 ~43°C 1°C
3
Fresh Duct discharge temperature
checking
Cooling discharge temperature 1,2 - 13~25 1°C
Heating discharge temperature 3,4 - 18~30 1°C
6
1 ERV Plus setting/checking
Use of cold air prevention 1 - 0 – No use, 1 - Use -
Use of humidification when Heating
thermo off
2 - 0 – No use, 1 - Use -
Use of fan operation in Defrost 3 - 0 – No use, 1 - Use -
Use of humidification when Heating 4 - 0 – No use, 1 - Use -
2
ERV Plus temperature
setting/checking
Cooling 1,2 - 15~30°C 1°C
Heating 3,4 - 15~30°C 1°C
3
ERV Plus Auto mode temperature setting/
checking
Set temperature 1,2 - 15~30°C 1°C
Set temperature difference 3,4 - 5~15°C 1°C
4
Setting/checking the compensating temperature A under the Heating
EEV control for ERV Plus
1,2 - 0~10°C 1°C
Checking the compensating temperature B under the Heating
EEV control for ERV Plus
3,4 -
0 – Non use of humidifier(0°C)
1 – Use humidifier(10°C)
-
5 ERV Plus fan RPM setting/checking
Air supply RPM 1,2 - 10~27 RPM 1 RPM
Air exhaustion RPM 3,4 - 10~27 RPM 1 RPM
0 Factory setting 1 - 0 – No use, 1– Factory setting -
1)* Data1 is the option setting page. / Data2~6 stand for the option codes.
You can set the 24 digits options.
Page Option Settings How to Move Between Pages Page Option Settings How to Move Between Pages
PAGE 1 1
st
~5
th
digit option setting Press the [>] button to go to PAGE 2. PAGE 4 16
th
~20
th
digit option setting Press the [>] button to go to PAGE 5.
PAGE 2 6
th
~10
th
digit option setting Press the [>] button to go to PAGE 3. PAGE 5 21
th
~24
th
digit option setting -
PAGE 3 11
th
~15
th
digit option setting Press the [>] button to go to PAGE 4.
1 2 3 4 5 6
Option CodeOption Setting Page
Regardless of Celsius and Fahrenheit setting, service mode setting is available only with Celsius.
Maximum no. of Connections: A maximum of 16 "indoor units + ERV" can be connected.
Separate control between indoor unit and ventilation system (ERV) is possible.
Integrated control between indoor unit and ventilation system (ERV) is possible.
