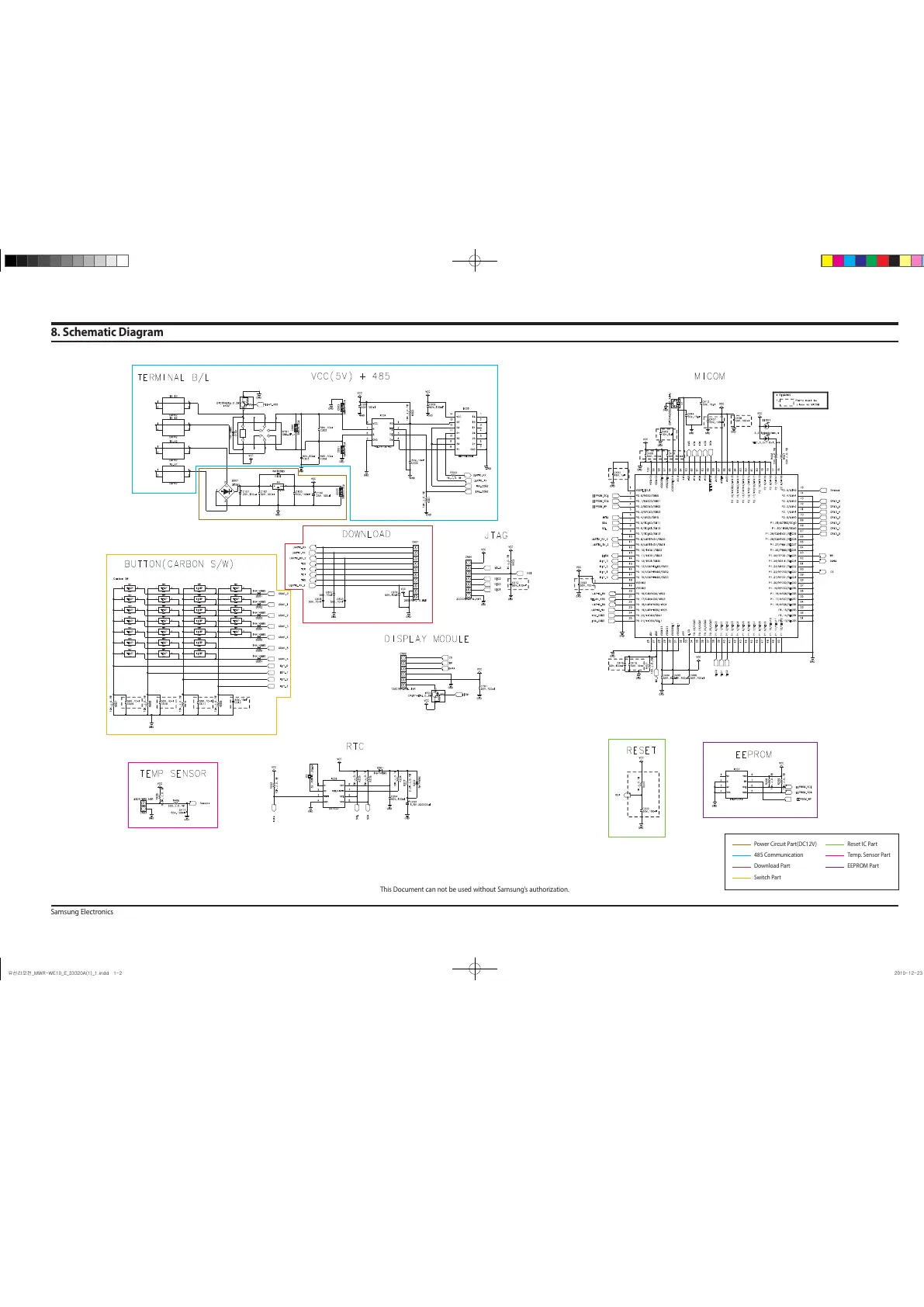

Samsung MWR-WE00 - Schematic Diagram

 Power Circuit Part(DC12V)
 485 Communication
 Download Part
 Switch Part
 Reset IC Part
 Temp. Sensor Part
 EEPROM Part
8. Schematic Diagram
