Samsung Electronics 5-2
Exploded Views and Parts List

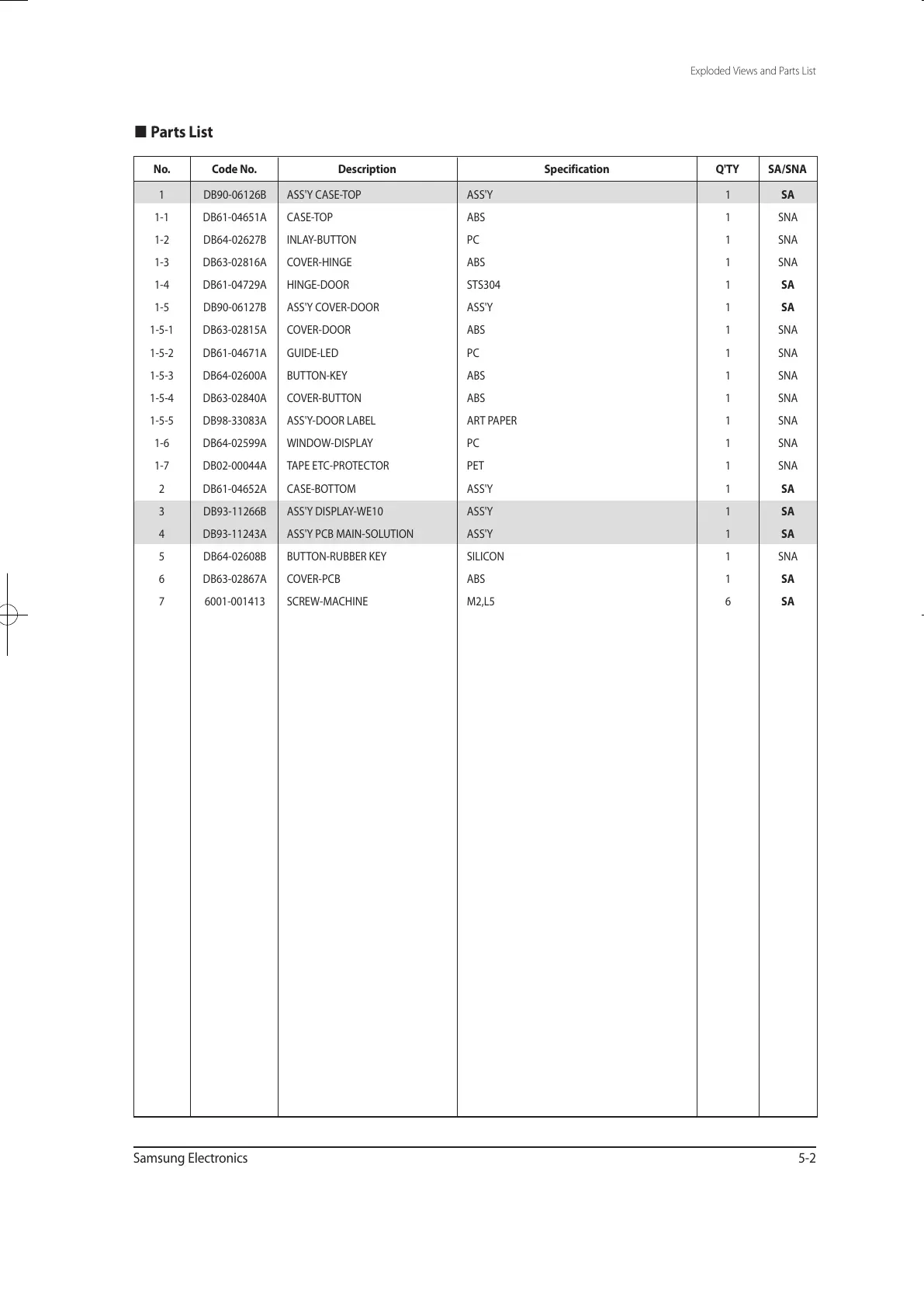

■ Parts List
1 DB90-06126B ASS'Y CASE-TOP ASS'Y 1 SA
1-1 DB61-04651A CASE-TOP ABS 1 SNA
1-2 DB64-02627B INLAY-BUTTON PC 1 SNA
1-3 DB63-02816A COVER-HINGE ABS 1 SNA
1-4 DB61-04729A HINGE-DOOR STS304 1 SA
1-5 DB90-06127B ASS'Y COVER-DOOR ASS'Y 1 SA
1-5-1 DB63-02815A COVER-DOOR ABS 1 SNA
1-5-2 DB61-04671A GUIDE-LED PC 1 SNA
1-5-3 DB64-02600A BUTTON-KEY ABS 1 SNA
1-5-4 DB63-02840A COVER-BUTTON ABS 1 SNA
1-5-5 DB98-33083A ASS'Y-DOOR LABEL ART PAPER 1 SNA
1-6 DB64-02599A WINDOW-DISPLAY PC 1 SNA
1-7 DB02-00044A TAPE ETC-PROTECTOR PET 1 SNA
2 DB61-04652A CASE-BOTTOM ASS'Y 1 SA
3 DB93-11266B ASS'Y DISPLAY-WE10 ASS'Y 1 SA
4 DB93-11243A ASS'Y PCB MAIN-SOLUTION ASS'Y 1 SA
5 DB64-02608B BUTTON-RUBBER KEY SILICON 1 SNA
6 DB63-02867A COVER-PCB ABS 1 SA
7 6001-001413 SCREW-MACHINE M2,L5 6 SA
Code No.No.
SA/SNA
Description
Specification
Q'TY
