Samsung Electronics 2-1
∙∙∙
A maximum of two wired remote controls
can be connected; these can be controlled as
one group. (Master/Slave)
A maximum of 16 “indoor units and ERV” can
be connected to the wired remote control as
one group and controlled.
Master wired remote control
Slave wired remote control

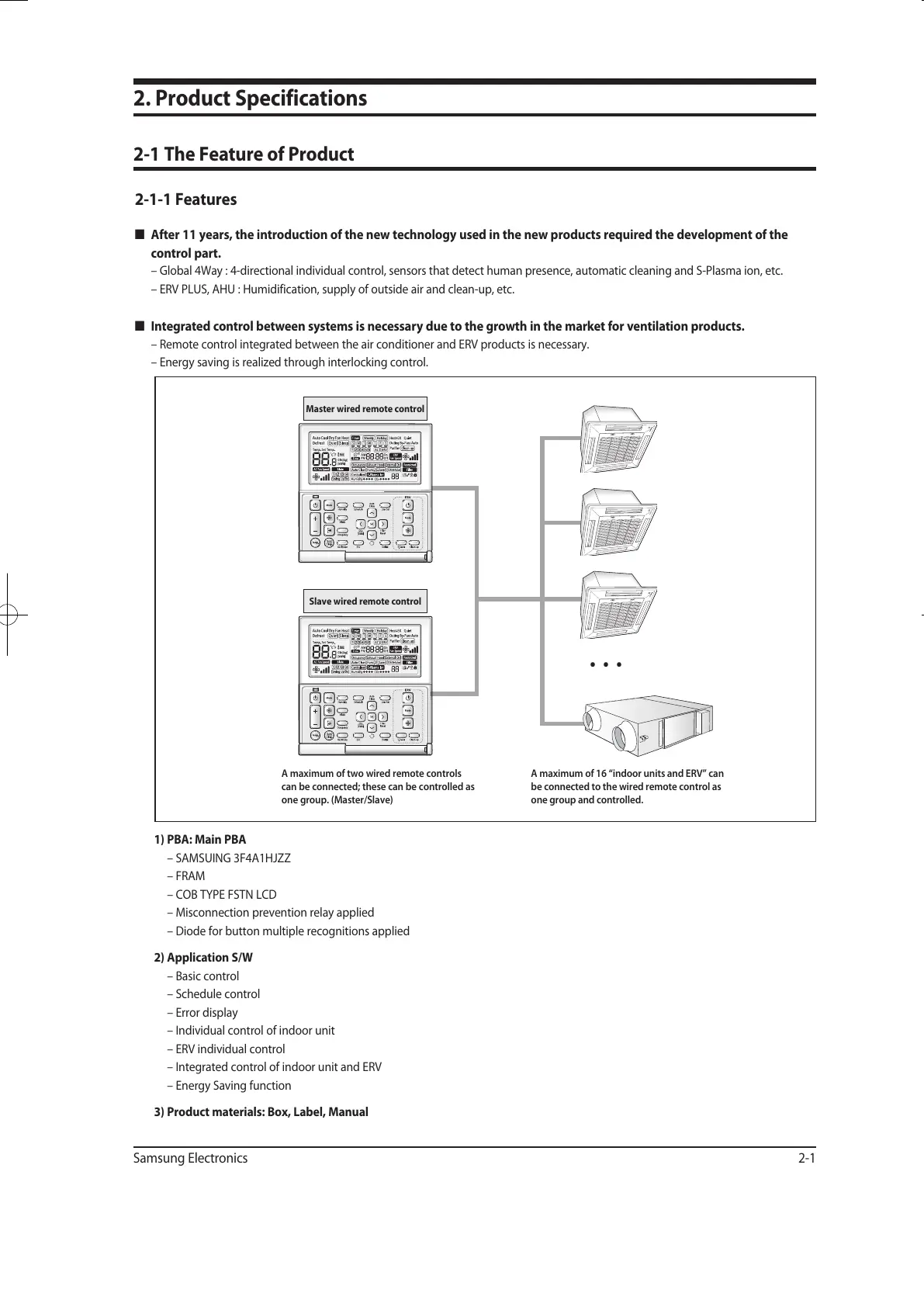

2. Product Specifications
2-1 The Feature of Product
2-1-1 Features
After 11 years, the introduction of the new technology used in the new products required the development of the
control part.
– Global 4Way : 4-directional individual control, sensors that detect human presence, automatic cleaning and S-Plasma ion, etc.
– ERV PLUS, AHU : Humidification, supply of outside air and clean-up, etc.
Integrated control between systems is necessary due to the growth in the market for ventilation products.
– Remote control integrated between the air conditioner and ERV products is necessary.
– Energy saving is realized through interlocking control.
1) PBA: Main PBA
– SAMSUING 3F4A1HJZZ
– FRAM
– COB TYPE FSTN LCD
– Misconnection prevention relay applied
– Diode for button multiple recognitions applied
2) Application S/W
– Basic control
– Schedule control
– Error display
– Individual control of indoor unit
– ERV individual control
– Integrated control of indoor unit and ERV
– Energy Saving function
3) Product materials: Box, Label, Manual
