6-1 Samsung Electronics
①
S3F4H Micro controller
②
EEPROM memory
③
Clock for scheduler
④
Prevents misconnection of
communication/power
⑤
485 Communication with indoor unit
⑥
Supply of power in the case of power
suspension for Clock IC
⑦ ⑧
In charge of non-polar function for
power
⑨ ⑩
MICOM FRAM Clock IC Relay
485 Communication part Battery 5V Power Doide
Temperature sensor LCD Control IC
102 1 4 5
89 763

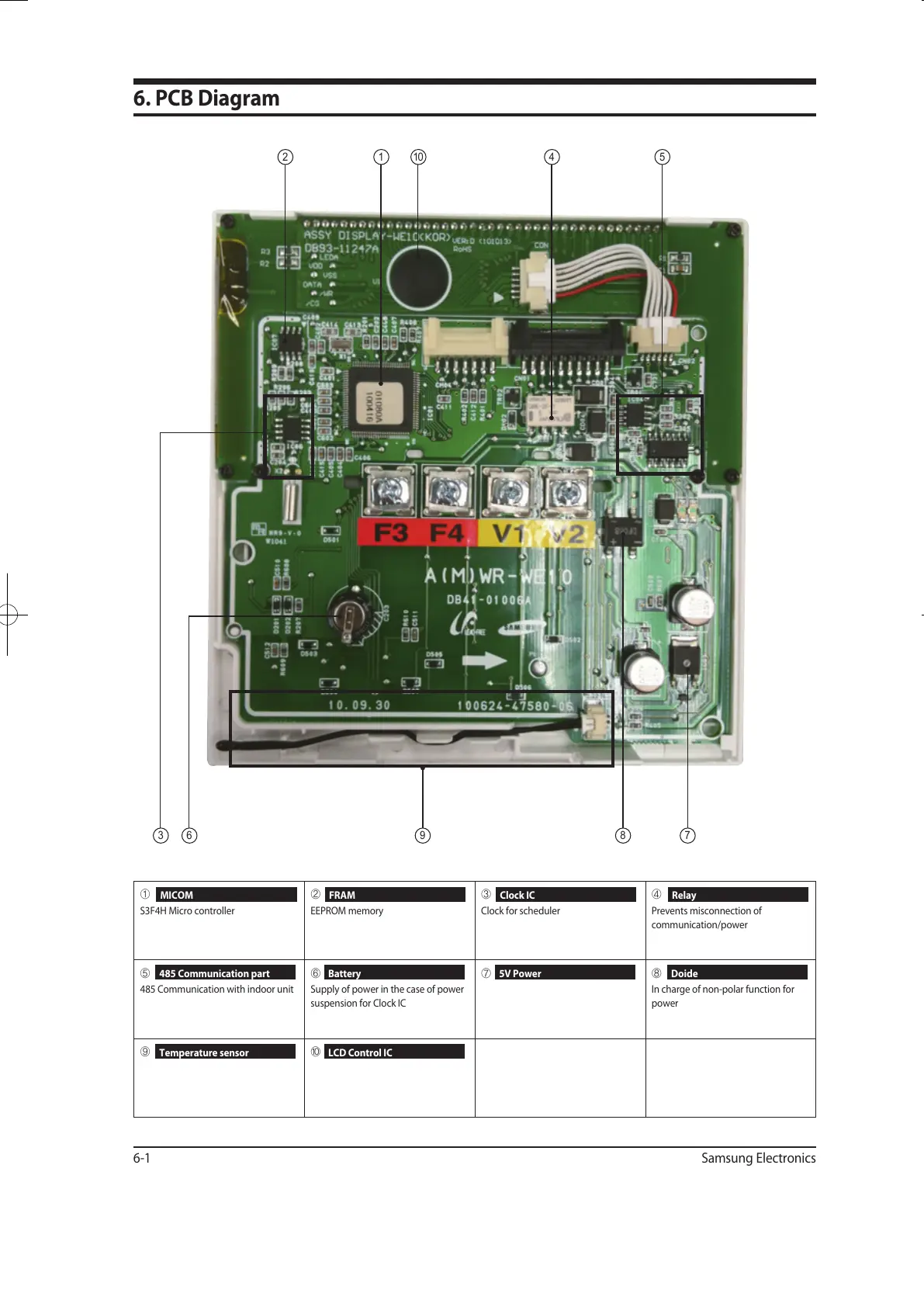

6. PCB Diagram
