4. Troubleshooting
Connecting the Bathroom Speakers
You can connect the Bathroom Speakers in one of the following 2 methods.

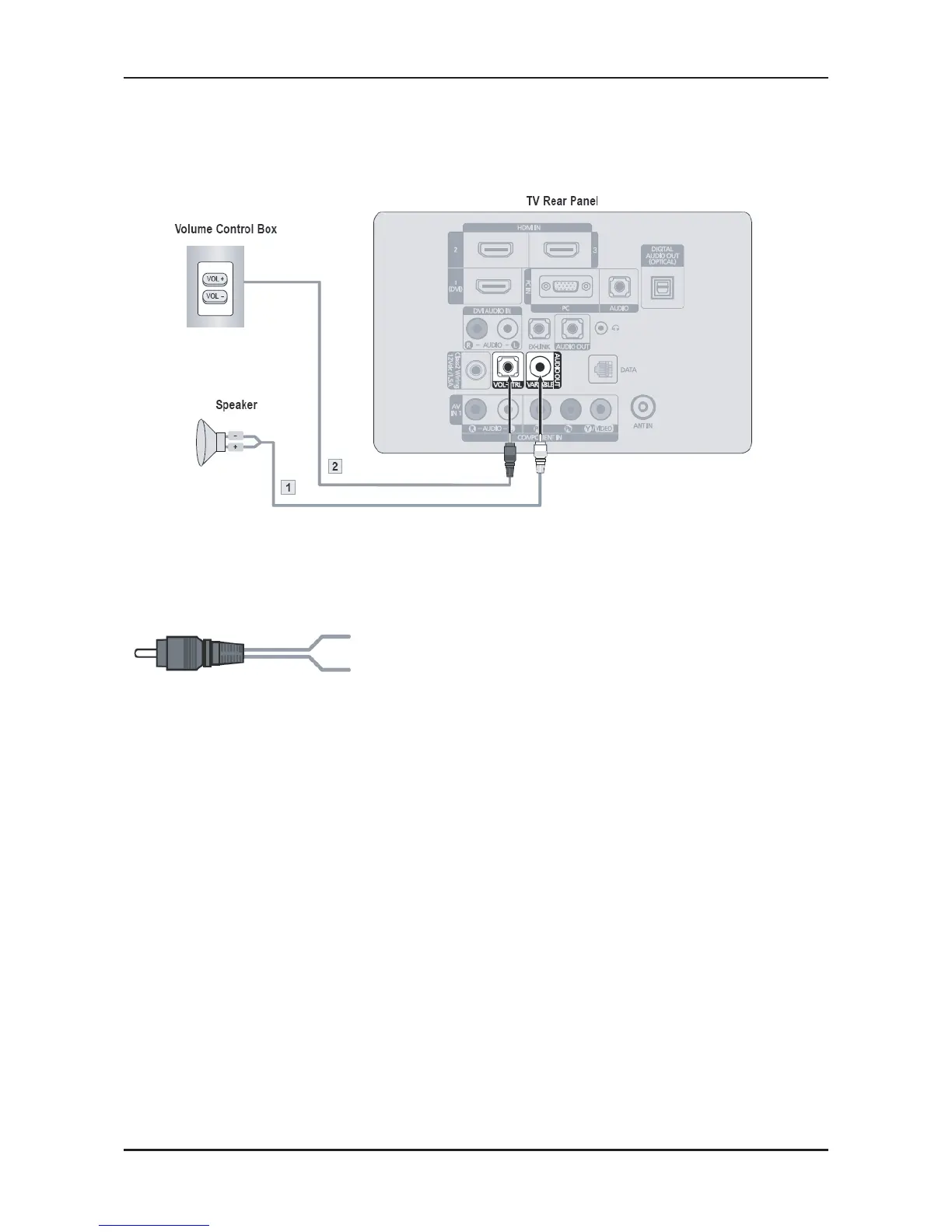

Connecting through the Variable Output (available without an external amplier)
Connect the VARIABLE AUDIO [R-AUDIO-L] port of the TV to the Bathroom Wall Speakers of the hotel.
Connect the [VOL-CTRL] jack of the TV to the Volume Control Box Switch port of the Bathroom Wall of the hotel.
Signal wire : Speaker +
Shield wire : Speaker -
- The maximum speaker output is 4W (2W+2W), 8Ω.
1.
2.
