3-2) Refrigerator Door
Refrigerator Door

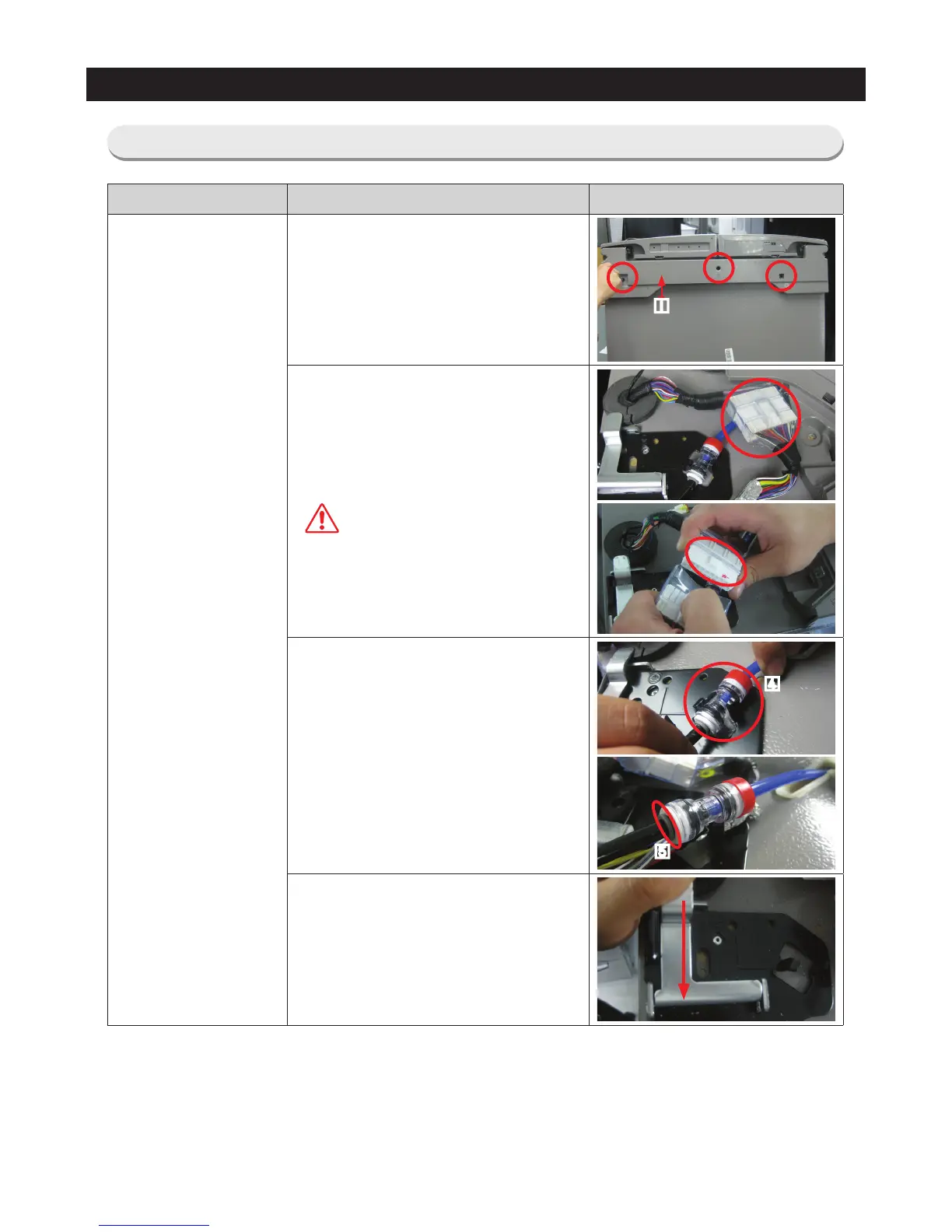

1. Remove the 3 screws holding down the Top
Table and remove the Top Table ()
2. Disconnect the electrical () above the
upper left door hinge To disconnect the
connector () more easily, press the end of
the hook () and pull connector.
CAUTION
Make sure unit is unplugged.
3. As shown in the picture, Remove water tube
from hinge () by holding at the both sides
of the Tube Fitting and pulling it out. And,
remove the Tube Fitting () by pulling the
water hose after pushing in the locking ring
tab at the end of the Tube Fitting.
4. After pulling the Hinge Lever, remove the
Hinge.
To Next Page
