1. When the IR sensor is defective, ice is not produced even if there is no Ice Maker Error, Ice
Maker Sensor Error or the Ice Maker Function Error.
(When turning on the Self Diagnosis Function, it does not produce ice even if there is no 14E, 15E
or 39E being displayed.)
2. Proceed with the Fridge Door being open and the Ice Bucket being removed.

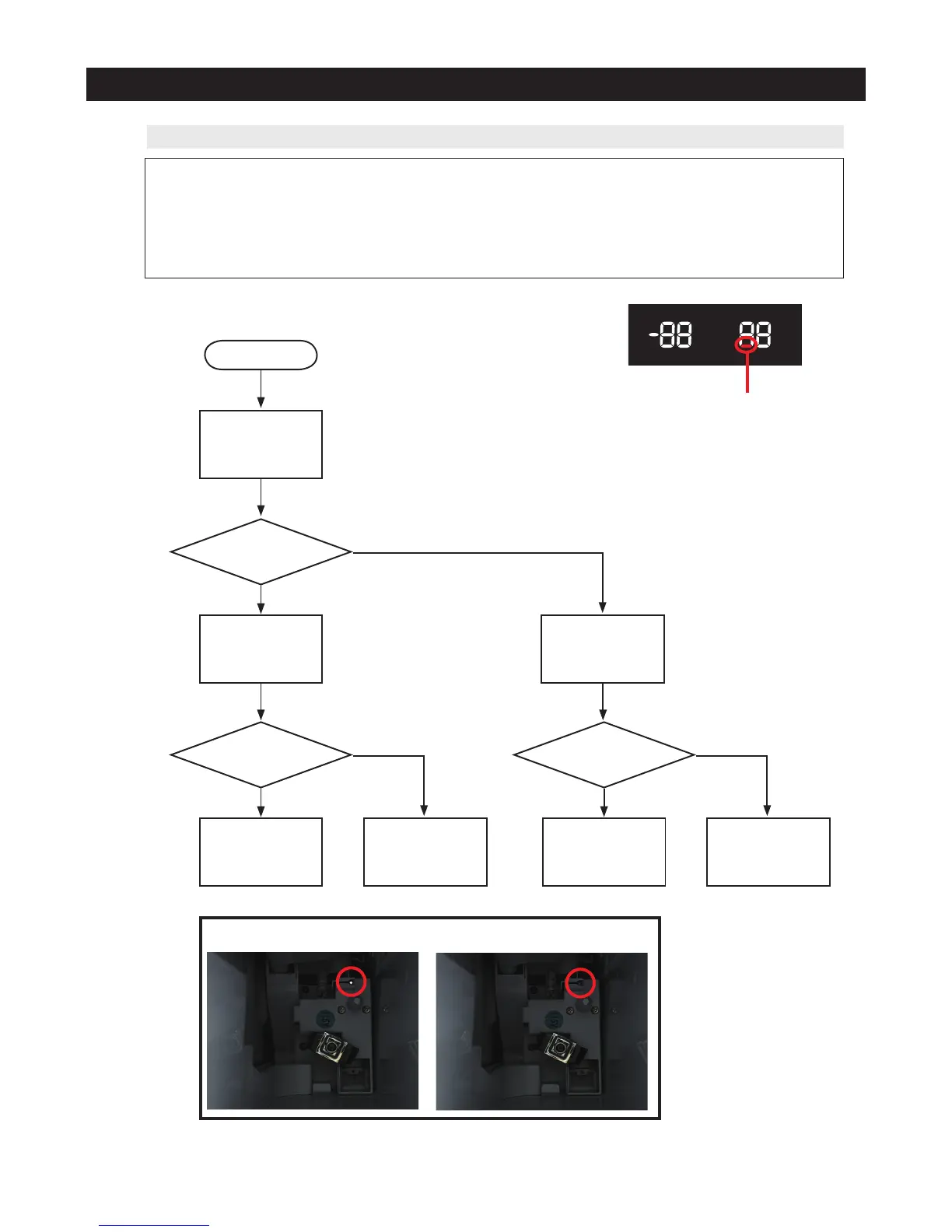

4-2-16. IR Sensor Trouble-Shooting
Start
Ice Full in Fridge Room
The Emitter is on. Fridge : Changes to Ice Full
Remove the Ice Bucket
and turn on the Load
Status Display Function.
Take a photo of the
Emitter with the Cell
Phone.
Receiver Defect
Receiver Normal
Emitter Normal
Block the Receiver with
a hand.
Emitter Defect Receiver Defect
Yes
Yes Yes
No
No No
Emitter Normal Emitter Defect
Indicator Location for Ice
Full in Fridge
Blinking : Ice Full
Keep On : Not Ice Full
To Next Page
