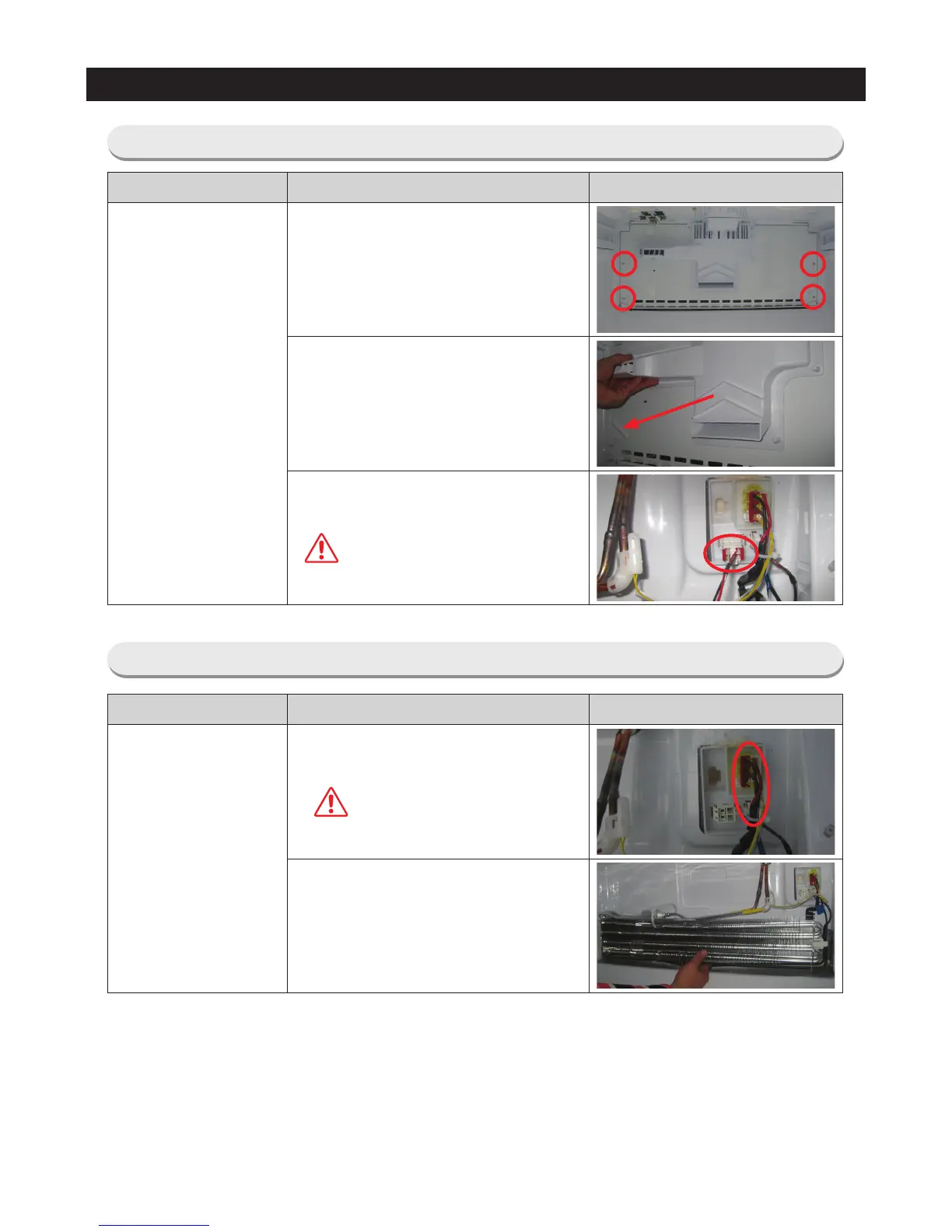

3-24) Evaporator Cover In Freezer
3-25) Evaporator In Freezer
  
Evaporator Cover In
Freezer
1. Loosen the 4 screws, which fix the
Evaporator cover.
2. Lift up the evaporator cover.
3. Disconnect the housing connector on right
and remove the evaporator cover.
CAUTION
Before doing the above, make
sure that the unit is unplugged
  
Evaporator In Freezer
1. Disconnect the 2 housing connectors on
right side.
CAUTION
Before doing the above, make
sure that the unit is unplugged
2. Remove the evaporator by pulling the lower
part of the evaporator while lifting it up.
