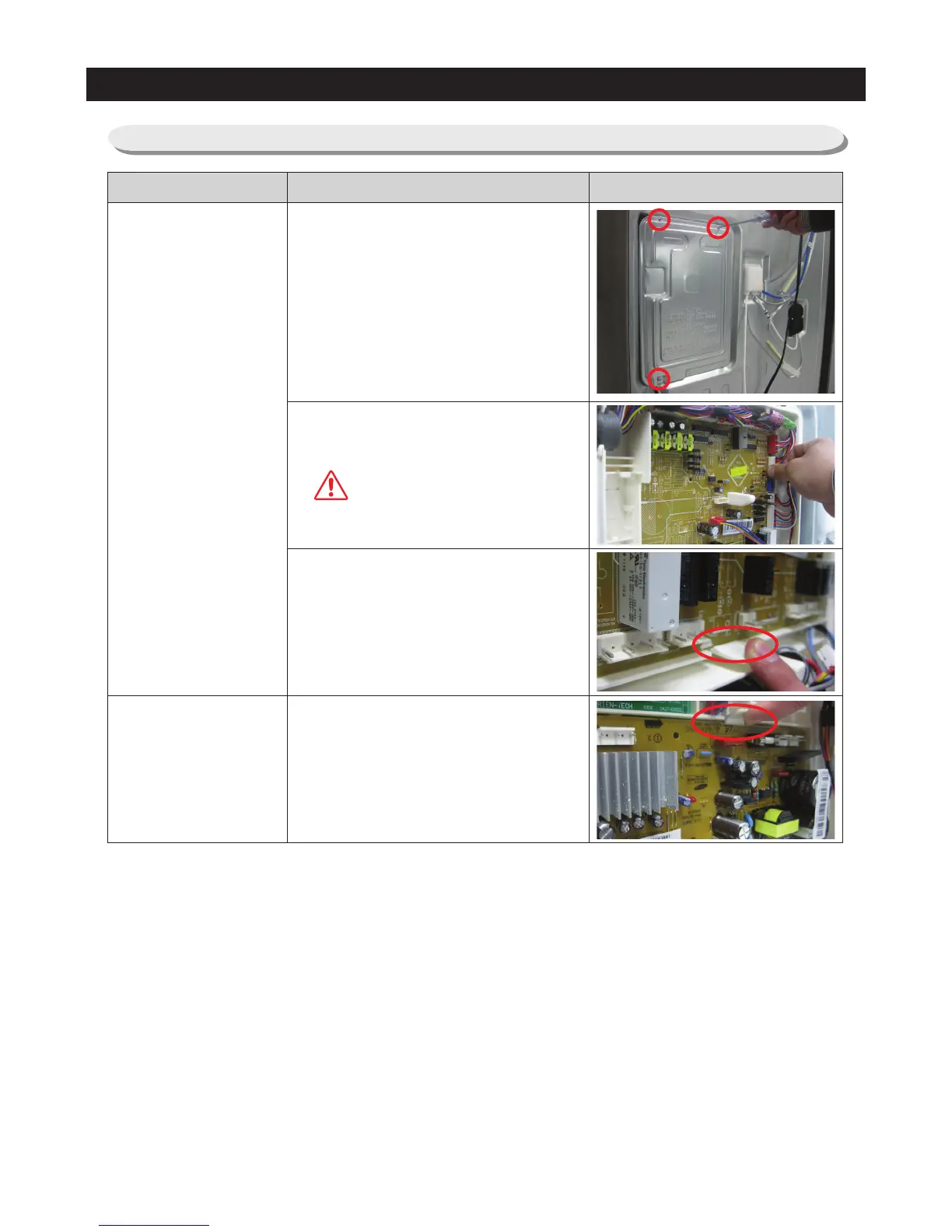

3-28) Electric Box
PBA Main
1. Remove the 2 screw attached to the upper
left and right Case PCB Panel with a phillips
screwdriver(+).
2. Disengage all housing connectors from the
main PCB.
CAUTION
Before doing the above, make
sure that the unit is unplugged.
3. Press the lower locking hook down and
remove the Main PBA by pulling it out.
(Refer to the picture)
PBA INVERTER
1. Remove the INVERTER PBA by lifting the
upper part of the hook up.
