2.2.1 Machine overview

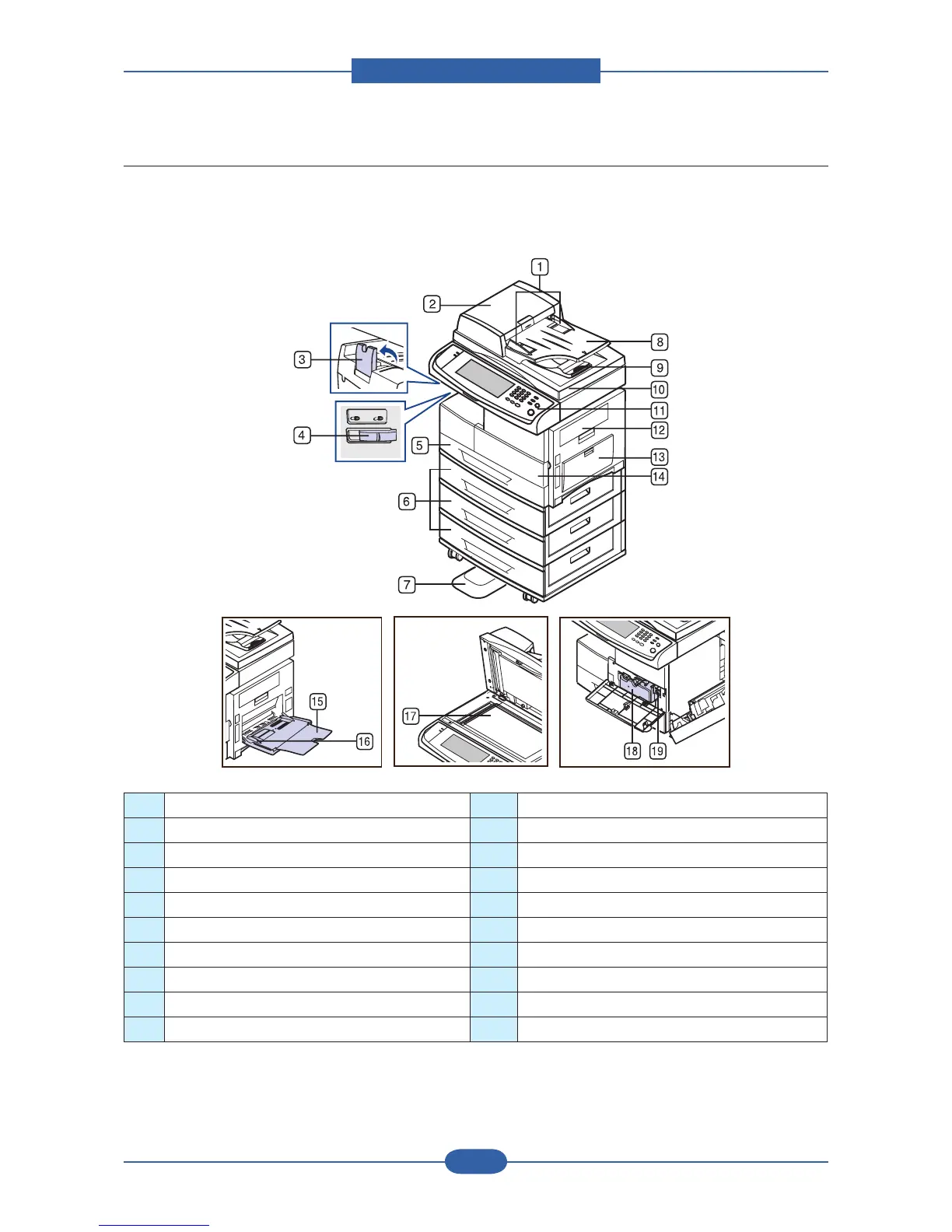

■ Front view
1 DADF
a
document width guides 11 control panel
2 DADF cover 12 side cover
3 output support 13 multi-purpose tray
4 CCD Lock
b
14 front cover
5 tray 1 15 multi-purpose tray extension
6 optional tray
c
16 multi-purpose tray paper width guides
7 stand
c
17 scanner glass
8 DADF document input tray 18 toner cartridge
9 DADF document output tray 19 drum cartridge
10 scanner lid
a.DADF (Duplex Automatic Document Feeder): The machine with this feature scans both sides of a paper.
b. CCD (Charge Coupled Device) Lock: It is the hardware which enables the scan job. It is also used to hold the CCD
module to prevent any damage when you move the machine.
c. The symbol
c
is a mark for the optional device.
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA

Samsung SCX-6555N Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto/Manual
Time to first page (black, normal)	8 s
Duplex print speed (ISO/IEC 24734) mono	48 ipm
Print speed (black, normal quality, A4/US Letter)	55 ppm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	Scan
Digital sender	No
Maximum duty cycle	250000 pages per month
Optional functions	Fax
Page description languages	PCL 5e, PCL 6, PDF 1.4, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2
Time to first copy (black, normal)	5 s
Copy speed (black, normal, US Letter)	55 cpm
Scan to	E-mail, FTP
Scanner type	Flatbed & ADF scanner
Maximum scan area	Legal (216 x 356) mm
Image formats supported	TIF
Maximum scan resolution	4800 x 4800 DPI
Document formats supported	PDF
Paper input type	Paper tray, Sheetfed
Total input capacity	720 sheets
Total output capacity	500 sheets
Maximum input capacity	3240 sheets
Total number of input trays	3
Auto document feeder (ADF) input capacity	100 sheets
Envelopes sizes	10, B5, C5, C6, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper, Thin paper, Transparencies
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Letterhead
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	0 - 80 g/m²
Auto Document Feeder (ADF) media weight (imperial)	0 - 20 lbs
Display	LCD
Product color	White
Display resolution	640 x 240 pixels
Market positioning	Business
Direct printing	-
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Authentication method	LDAP
Mobile printing technologies	Not supported
Internal memory	256 MB
Maximum internal memory	512 MB
Internal storage capacity	80 GB
Sound power level (standby)	43 dB
Sound pressure level (copying)	62 dB
Sound pressure level (printing)	60 dB
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64
Windows operating systems supported	Windows 2000, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	489 mm
Width	635 mm
Height	616 mm
Weight	44500 g
