Samsung SNP-6320RH User Manual

installation & connection
24_ installation & connection
`
When combining the main body and the ceiling mounting adaptor for
installation on the wall
1. Wrap the screw part of the housing
with a sufficient amount of Teflon tape
for assembly.
2. Please make sure that the gasket is
not disassembled from the shield cover
when the shield cover is separated and
mounted on the housing body.
3. Install the ceiling mount adapter for
waterproofing, and apply the silicon
sealant between and around the wall
and ceiling mount for sealing.
J
`
Take particular caution to ensure that
there is proper sealing if the installed side
is not flat.
Optional Accessories for Installation
For your easier installation, you can purchase appropriate optional accessories available.

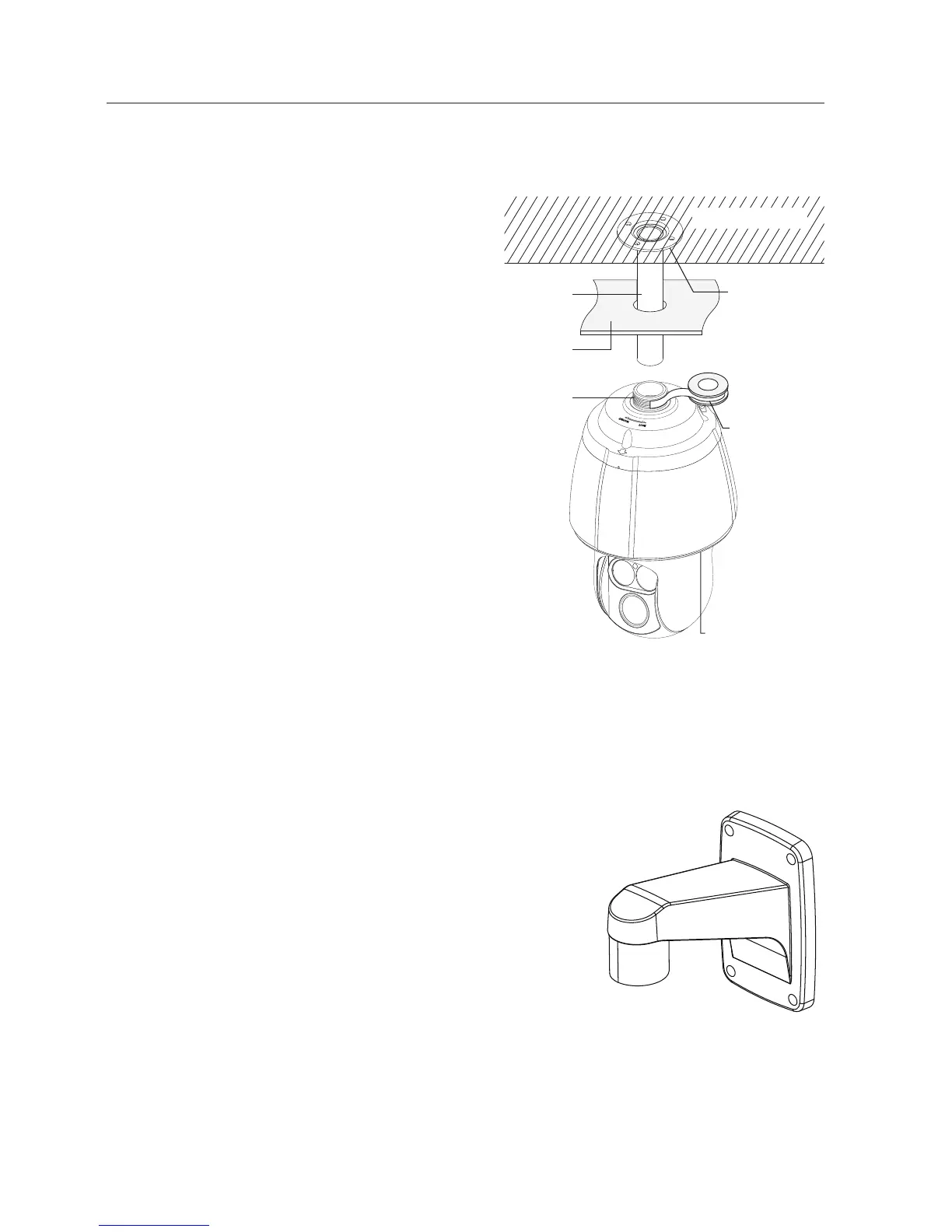

1. If installing the camera on the wall
• Wall mount (SBP-300WM1)
Ceiling mount
adapter
Screw
unit
Ceiling board
Silicon
sealant
Teflon tape
Concrete ceiling
Shield gasket

Samsung SNP-6320RH Specifications

General

Resolution	1920 x 1080
Connectivity Technology	Wired
Form Factor	Dome
Optical Zoom	32x
Digital Zoom	16x
Pan Range	360° endless
Ingress Protection	IP66
Vandal Proof	IK10
Video Compression	H.264, MJPEG
Signal-to-Noise Ratio	50 dB
Lens	Varifocal
Device Type	PTZ dome camera
Infrared Distance	150m (492ft)
Sensor Size	1/2.8 inch
Tilt Range	190°
Protocols	TCP/IP, UDP/IP, RTP/RTSP, HTTP, HTTPS, FTP, SMTP, DHCP, PPPoE, DDNS, NTP, UPnP, Bonjour, ONVIF
Power Source	AC 24V, PoE+
Network Interface	RJ45
Operating Temperature	-50°C ~ +55°C (-58°F ~ +131°F)
Sensor	CMOS
Minimum Illumination	0 Lux (IR LED on)
Power Supply	PoE+ (IEEE 802.3at), 24V AC
