Samsung SNP-6320RH User Manual

appendix
138_ appendix

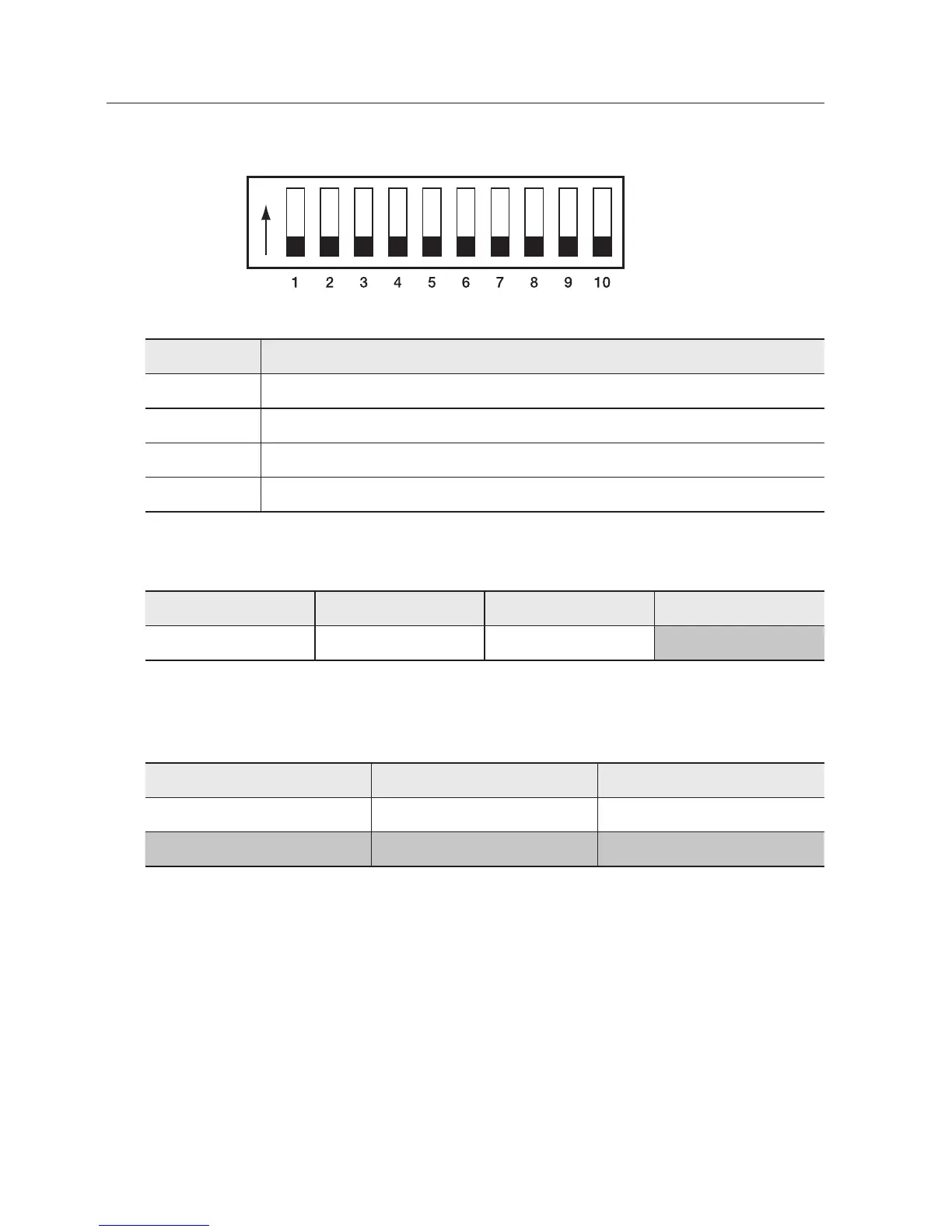

Communication Protocol DIP Switch Settings (SW1)
SW1 Pin No. Purpose
7 Set transmission protocol (RS-485/422)
8 Termination setting 1
9 Termination setting 2
1~6, 10 Reserved
• Communication Method Settings
Select a communication method for the camera.
Function ON OFF
SW1-#7 Transfer Mode Switch RS-422(4Wire) RS-485(2Wire)
• Termination Settings
To prevent the attenuation of communication signals between the camera and controller,
the items at the end of line must be set up with the termination settings.
Camera Input Position SW1-#8 SW1-#9
Termination of Longest Path ON ON
On the Path OFF OFF
M
`
The default value is shaded in each setting table.
`
To use a third party controller with this product, please contact our After-Sales Service or
Technology Department.
ON
OFF
SW1
ON

Samsung SNP-6320RH Specifications

General

Resolution	1920 x 1080
Connectivity Technology	Wired
Form Factor	Dome
Optical Zoom	32x
Digital Zoom	16x
Pan Range	360° endless
Ingress Protection	IP66
Vandal Proof	IK10
Video Compression	H.264, MJPEG
Signal-to-Noise Ratio	50 dB
Lens	Varifocal
Device Type	PTZ dome camera
Infrared Distance	150m (492ft)
Sensor Size	1/2.8 inch
Tilt Range	190°
Protocols	TCP/IP, UDP/IP, RTP/RTSP, HTTP, HTTPS, FTP, SMTP, DHCP, PPPoE, DDNS, NTP, UPnP, Bonjour, ONVIF
Power Source	AC 24V, PoE+
Network Interface	RJ45
Operating Temperature	-50°C ~ +55°C (-58°F ~ +131°F)
Sensor	CMOS
Minimum Illumination	0 Lux (IR LED on)
Power Supply	PoE+ (IEEE 802.3at), 24V AC
