17. Communication environment setting
Parameter Initial value
PROTOCOL
BAUD RATE
PARITY
STOP BIT
DATA LENGTH
ADDRESS
RESPONSE TIME
Setting range Unit
PCLINK, PCLINK+SUM, MODBUS ASC, MODBUS RTU
9600, 19200, 38400, 57600, 115200
NONE, EVEN, ODD
1, 2
7, 8
1 ~ 99
0 ~ 10
ABS
ABS
ABS
ABS
ABS
ABS
ABS
PCLINK+SUM
115200
NONE
1
8
1
0

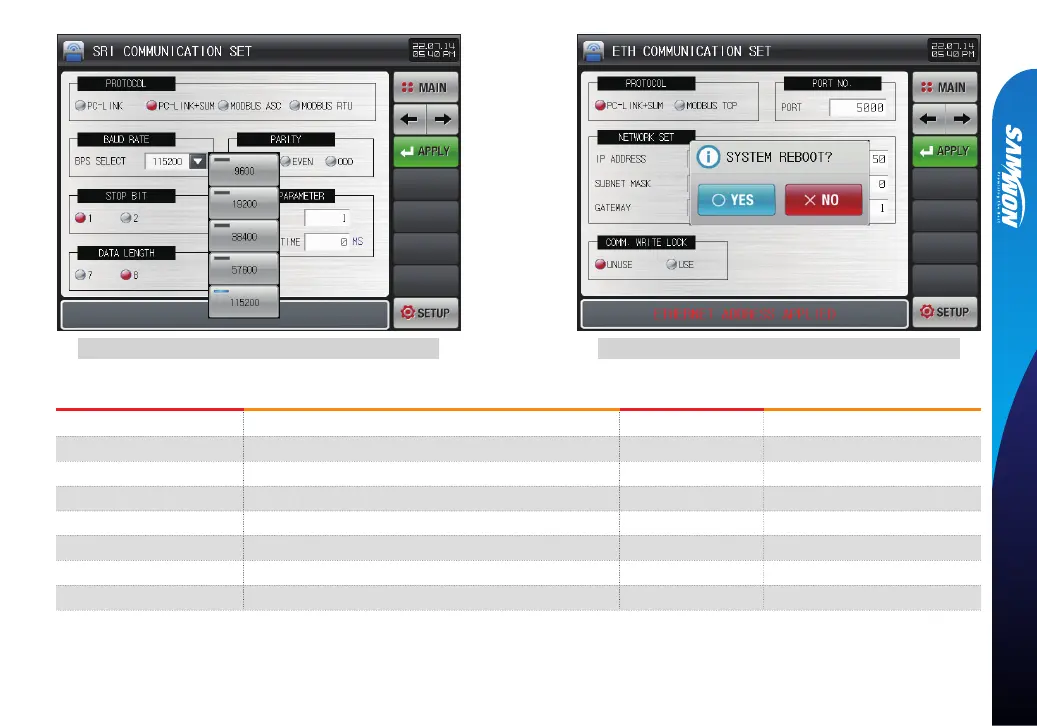

[Fig. 17-5] Communication speed setting screen in communication environment [Fig. 17-6] When the Apply button is clicked, the system restart selection screen
