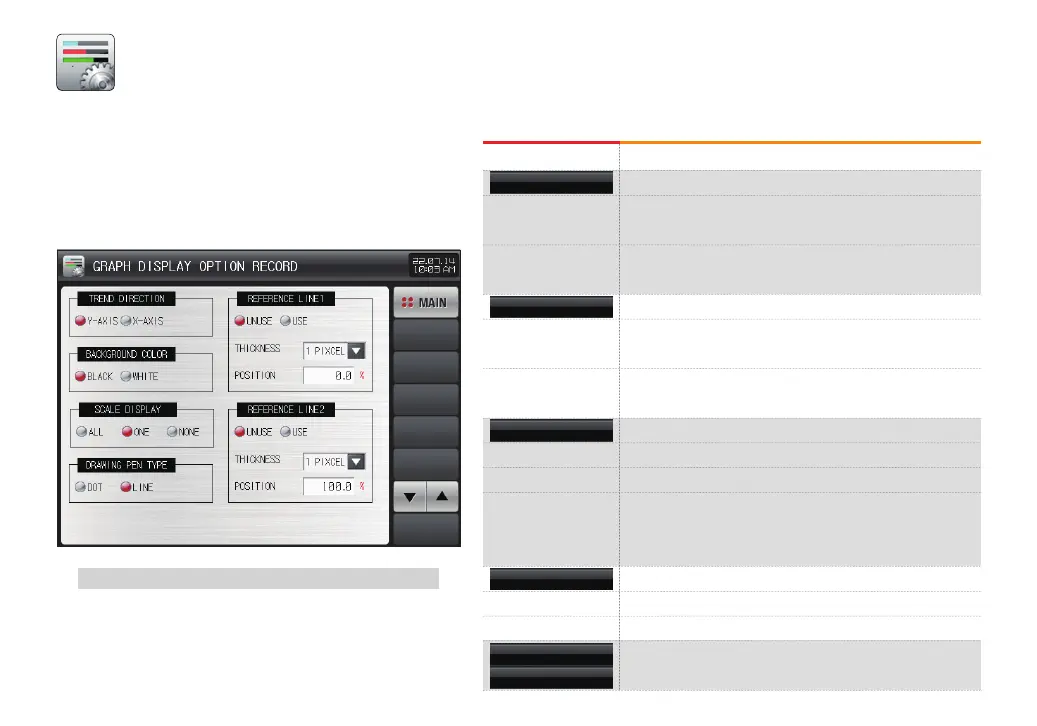

[Fig. 7-1] Graph display option (Graph recording screen)
07. Graph option
7-1. Graph display option (Graph recording screen)
● When “Graph option” is selected from [Fig. 3-1 Main screen],
it is converted to “Graph display option screen.”
● It is the screen for setting the parameter adopted for the graph
recording screen.
Instruction Description
Setting of the direction of graph recording screen
The direction of the graph recording screen is
displayed vertically. Refer to [Fig. 4-13]
The direction of the graph recording screen is
displayed horizontally. Refer to [Fig. 4-12]
Setting of the background color of graph recording screen
Setting of the background color of graph recording screen
in black. Refer to [Fig. 4-1]
Setting of the background color of graph recording screen
in white. Refer to [Fig. 4-3]
Setting of the scale bar display
Setting of scale bar
Display of scale bar and data for each channel
No display for the scale bar and range
●
When it is set “One” it is operated as “Tag” regardless
of the set data of “PV display type” in each channel
PV graph display type setting
PV is displayed in dot
PV is displayed in line
Setting of Y/N and location of the display at the basic line at the ends
of the left, right, upper and lower of the graph. Refer to [Fig. 7-3]
Y-AXIS
X-AXIS
BLACK
WHITE
ALL
ONE
NONE
DOT
LINE
TREND DIRETION
BACKGROUND COLOR
SCALE DISPLAY
DRAWING PEN TYPE
REFERENCE LINE1
REFERENCE LINE2
