7-2. Graph display option (Graph searching screen)
● It is the screen for setting the parameter adopted for the graph recording screen.
Instruction Description
Y-AXIS
X-AXIS
BLACK
WHITE
ALL
ONE
NONE
DOT
LINE
TREND DIRETION
BACKGROUND COLOR
SCALE DISPLAY
DRAWING PEN TYPE
REFERENCE LINE1
REFERENCE LINE2
07. Graph option

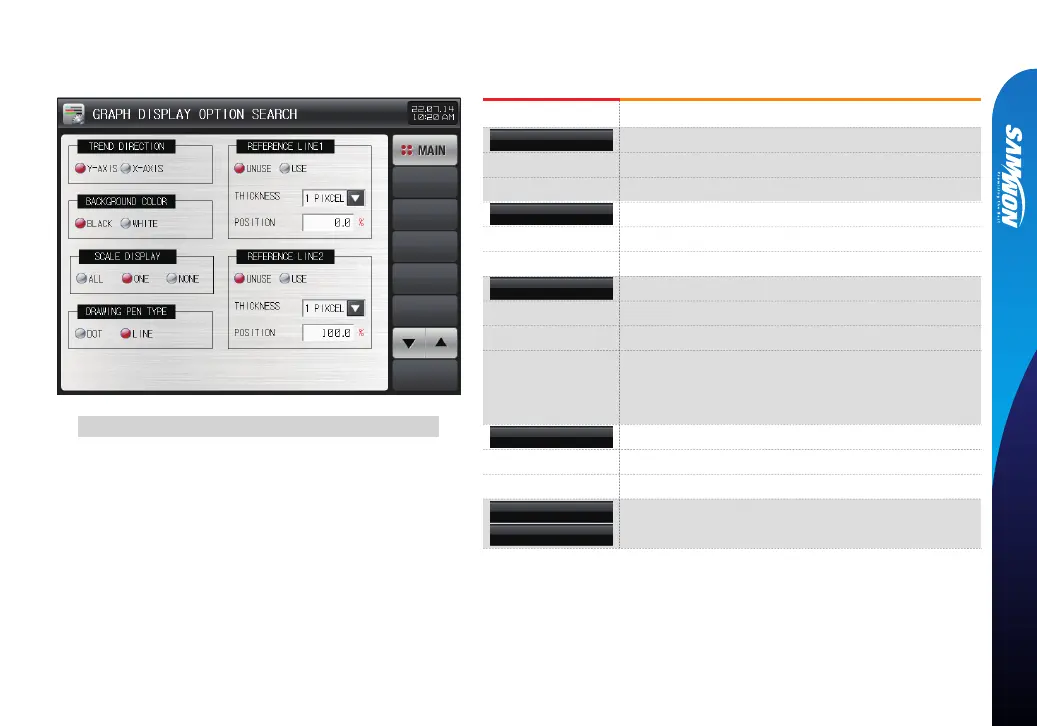

[Fig. 7-2] Graph display option (Graph searching screen)
Setting of the direction of graph searching screen
The direction of the graph searching screen is displayed vertically.
The direction of the graph searching screen is displayed horizontally.
Setting of the background color of graph searching screen
Setting of the background color of graph searching screen in black
Setting of the background color of graph searching screen in white
Setting of the scale bar display
Setting of scale bar
Display of scale bar and data for each channel
No display for the scale bar and range
●
When it is set “One” it is operated as “Tag” regardless
of the set data of “PV display type” in each channel
PV graph display type setting
PV is displayed in dot
PV is displayed in line
Setting of Y/N and location of the display at the basic line at the ends
of the left, right, upper and lower of the graph. Refer to [Fig. 7-4]
