17. Communication environment setting
17-2. Ethernet communication environment setting screen
ԙ
This is the screen to set the relevant parameters for Ethernet communication(TCP/IP).
ԙ
Ethernet communication is provided as standard.

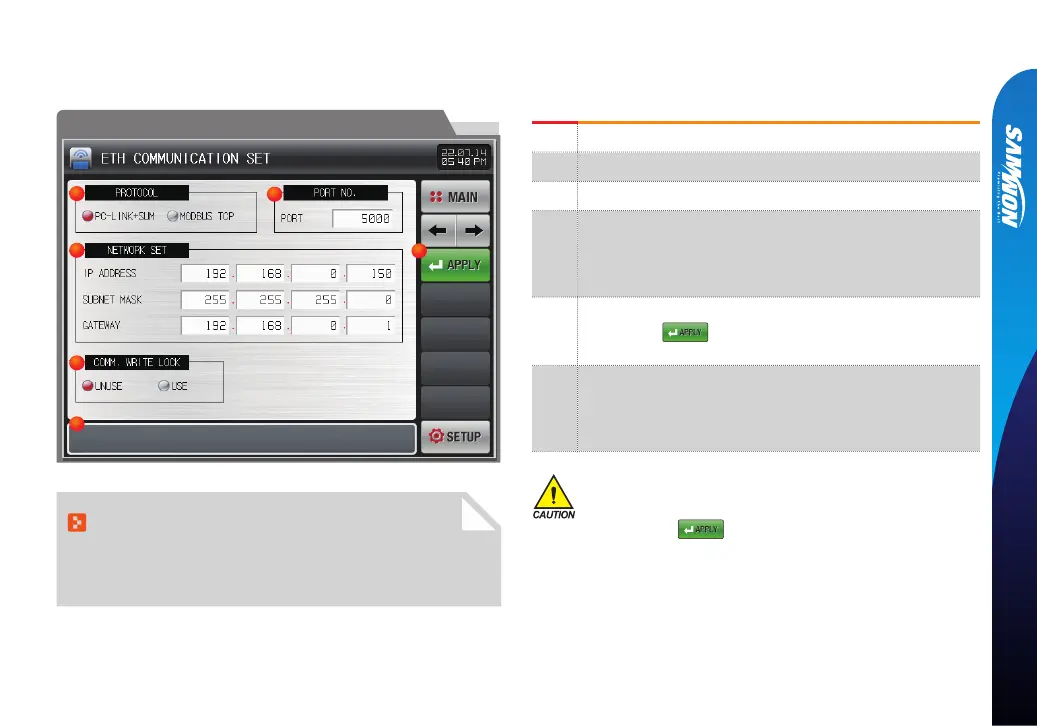

[Fig. 17-3] Ethernet communication environment setting screen
1
3
4
5
6
2
①
Communication protocol setting
②
Communication port setting
③
IP settings for the network
④
Setting lock action for communication-related COMMAND sending/
receiving
●
Parameter cannot be changed through communication when
set to action
⑤
Message box
●
When the button is operated after changing the address,
the message “Ethernet address has been modified” is displayed.
⑥
Used to apply the contents after changing Ethernet related
parameters
●
Press the button to display the system restart selection screen
Refer to
[Fig. 17-6]
Cautions
ԙ
If not pushing the button after changing network setting,
parameter will not be changed.
ԙ
After changing the parameter, be sure to turn the power “OFF” → “ON”.
Reference
▶ Serial and Ethernet can be used simultaneously.
▶ The settings changed in serial/Ethernet communication are applied only
after resetting the power of the display unit.
