05. Graph searching
05. Graph searching
5-1. Graph view
● When the “Graph search” is selected from the [Fig.3-1 Main screen], it converted to ‘Graph searching screen.”
● It is a screen to search the file stored in the internal memory and SD card.
● The function of , is not operated in case of 1 page for recorded data.
● The searching scroll bar is not displayed in case of smaller recorded data.
1
①
Blue navigation line on the graph
●
Displays the measurement value for each channel with the current
position of the search line
●
You can freely move up and down after selecting the navigation line
②
Go to the beginning (time) and the end (time) of the recorded graph
③
Move to up and down by one page
④
① is moved up and down by 1 dot
⑤
The time axis is expanded or reduced.
⑥
View All Recorded Graph / View Section
⑦
User memo
⑧
It displays the file stored into the internal memory and SD card
⑨
Channel name / unit / measurement value displayed for each channel
●
If you press (active box) on each channel, the corresponding
channel is not displayed, and if you press it once more, the
corresponding channel is displayed.
●
When selecting the measurement value of each channel, the
corresponding graph is selected
2
3
4
5
6
8
9
7

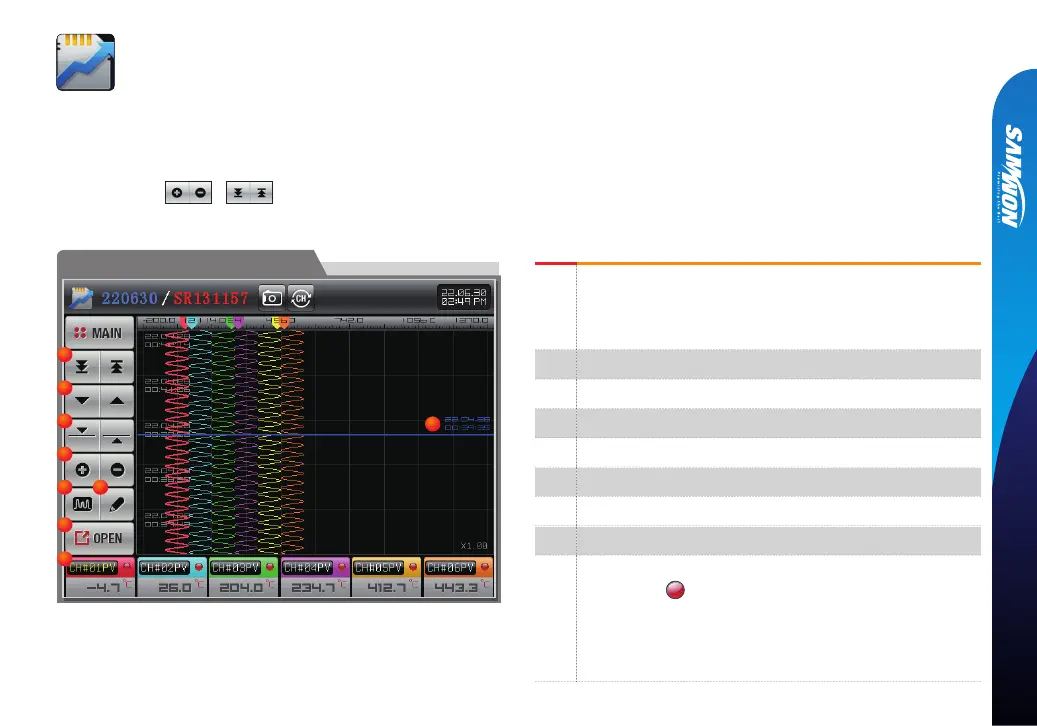

[Fig. 5-1] Graph searching screen
