14 S&C Instruction Sheet 461-502
If the TripSaver II Recloser Has
Dropped Open
Follow these steps if the TripSaver II recloser has dropped
open:
STEP 1. Determine and resolve the cause of the fault
with assistance from the information on the
display screen. Refer to the “Display Screen”
section on pages 15 through 17.
STEP 2. After the cause of the fault has been resolved
and any necessary repairs completed, repeat
Steps 5 and 6 on page 11 to close the TripSaver II
recloser back into the mounting.
If Line Work Is to Be Performed Downstream
of a TripSaver II Recloser
Follow these steps if line work is to be done downstream
of the TripSaver II recloser:
STEP 1. Place the MODE-SELECTOR lever in the NR
position. Rotate the MODE-SELECTOR lever
downward using the straight prong of a Talon
Handling Tool or a distribution prong, as shown
in Figure 15a, until the lever locks into the
vertical position, as shown in Figure 15b.
Springs help guide the MODE-SELECTOR lever
to the NR position, and labels provide visual
guidance. The label on the lever must align with
the label on the body. See Figure 15c.
Note: With the MODE-SELECTOR lever in
the NR position, the TripSaver II recloser will
operate using the NR Curve and then drop
open. It will not go through the reclosing
sequence.
Operation

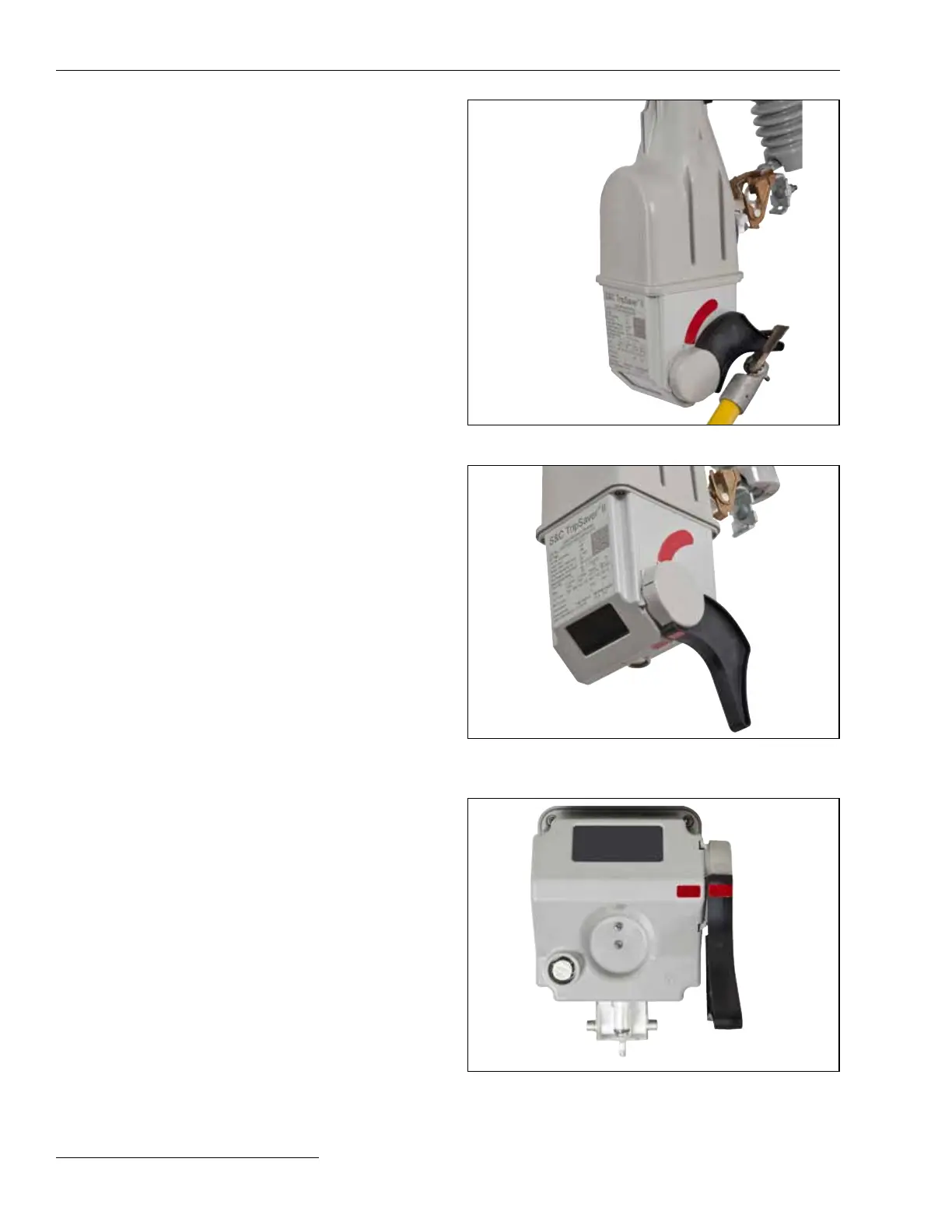

Figure 15c. Align the lever with the label on the body.
Figure 15b. A TripSaver II recloser with the MODE-SELECTOR
lever locked in the vertical position.
Figure 15a. A TripSaver II recloser entering NR mode.
