S&P NEMBUS 210 User Manual

12
5.2.5. Installation of outdoor air and extract air
ducts
NOTE
It is indispensable install insulated duct on the out-
door air and extract air in order to avoid condensa-
tion.

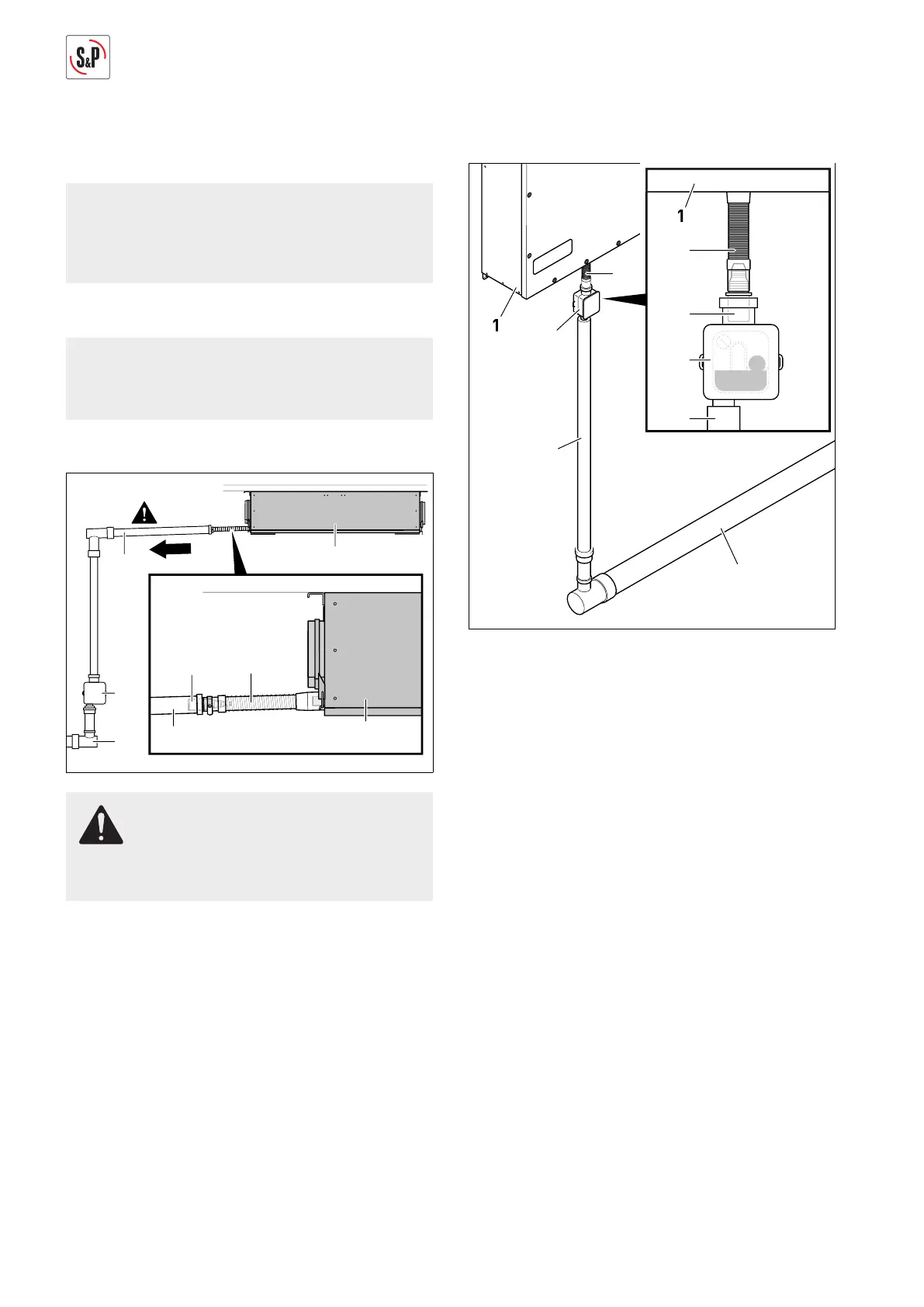

5.2.6. Connect condensate duct
NOTE
The following description is a suggestion for installa-
tion of the condensate duct.
Ceiling installation
66
66
15/1 15
1
1
> 1%
67
68
CAUTION
When installing the condensate line, a gradient > 1%
must necessarily be observed.
1. Fasten fl exible connection tube (15) with connection
end DN23 onto the ventilation system (1) with a stan-
dard hose clamp, e.g. 12-20 mm.
2. Attach standard waste pipe DN32 (66) to the connec-
tion nipple (15/1).
3. Insert the fl exible connection hose (15) into the shor-
tened connection nipple (15/1), and fasten with a stan-
dard hose clamp, e.g. 23-35 mm.
4. Connect standard waste pipe DN32 (66) with dry si-
phon (67, reference 5800015700 DSI) and insert it into
the waste water line (68).
Wall installation
1
1
15/1
15
67
66
67
15
66
68
1. Fasten fl exible connection hose (15) with the connec-
ting end DN23 onto the ventilation system (1) with the
standard hose clamp, e.g., 12-20 mm.
2. Insert dry siphon (optional) (67) with connection nipple
(15/1) into the fl exible connection hose (15), and fasten
with the standard hose clamp, e.g., 23-35 mm.
3. Connect standard waste pipe DN32 (66) with the dry
siphon (optional) (67) and insert into the waste water
line (68).
