13. REPAIRS SPECIALISTS
CAUTION
All repairs to the ventilation system may only be ca-
rried out by qualifi ed specialists, otherwise there is
risk of injuries or damages.
13.1. CHANGE FANS
NOTE
The following representations of the ventilation sys-
tem are schematic diagrams. The device is mounted
permanently on the ceiling for all maintenance tas-
ks. The installation position shown is not possible.
RISK OF INJURY
Before changing fans, disconnect all poles of the
ventilation system from the power network, otherwi-
se there is risk of injuries.
58
9
57
56
2
1
13
55
1
3
4
60
6
60
5
5
M+P-26A-2069

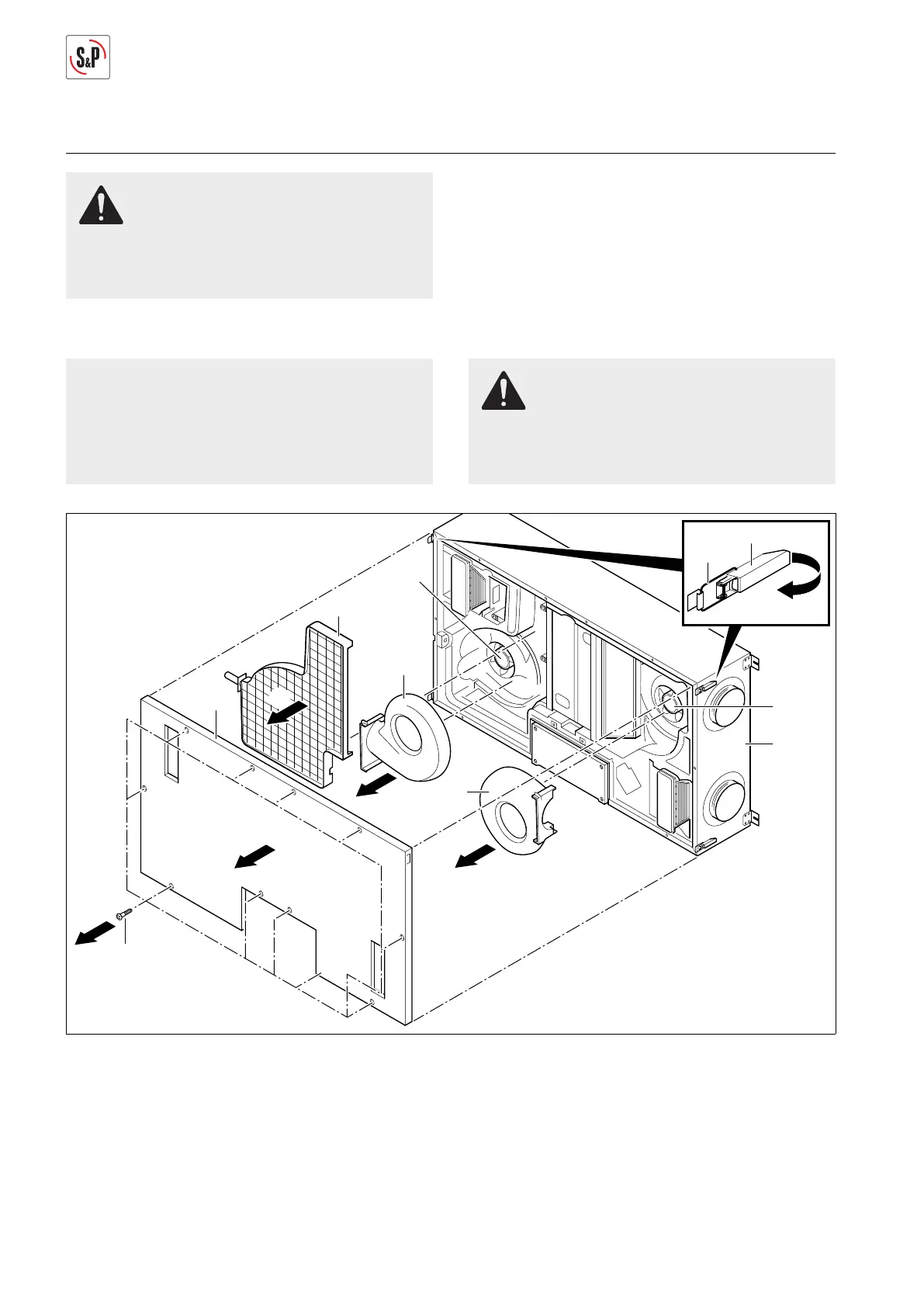

1. Remove screws Torx 25 (55) (Arrow 1).
2. Open all locks (56) and unhook brackets (57) (Arrow 2).
3. Remove cover (58) (Arrow 3).
4. Remove condensate line, see page 12.
5. Take out condensate tray (9) (Arrow 4).
6. Take off covers (60) (Arrow 5).
