12.3.3. Cleaning fan blade
NOTE

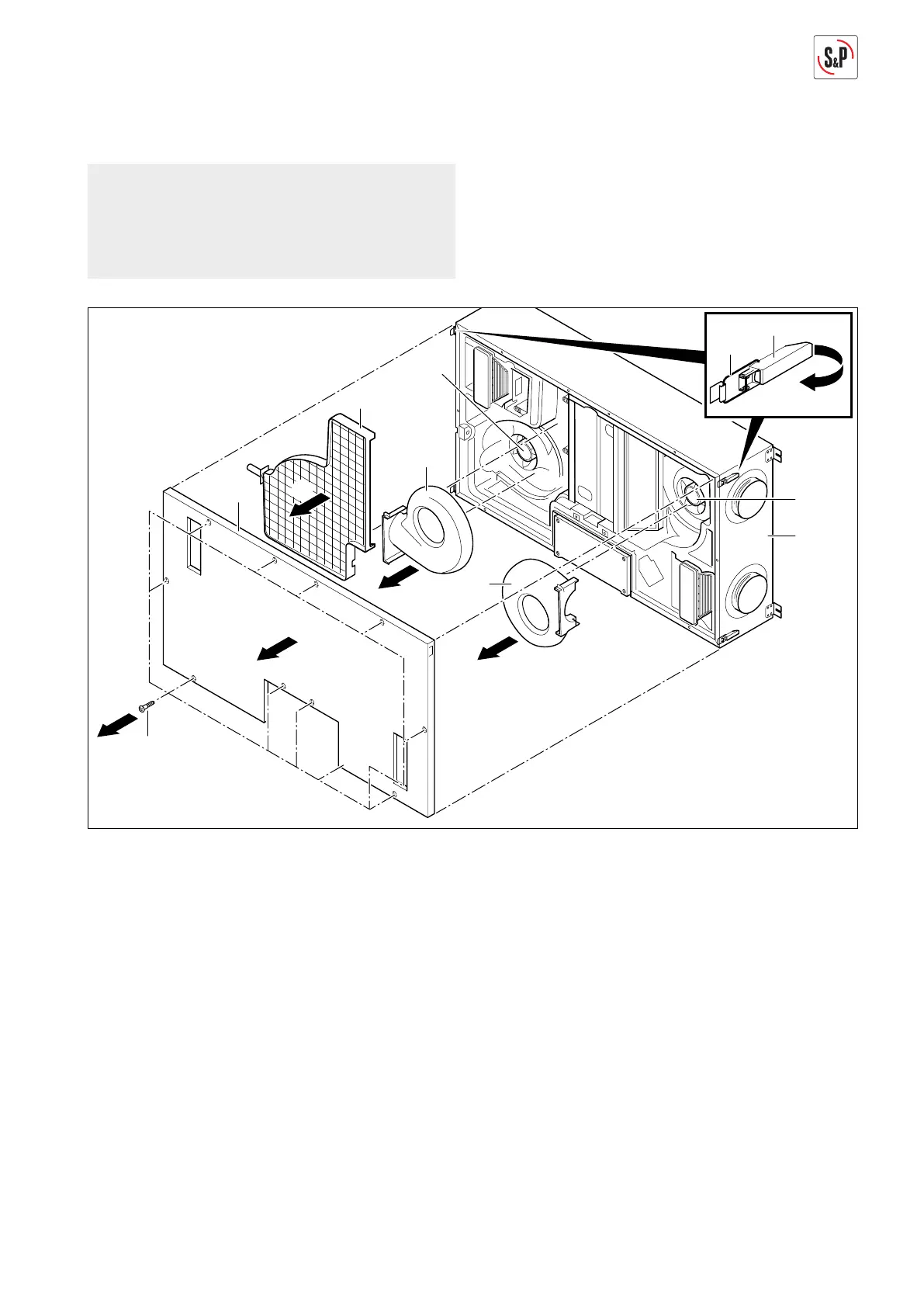

The following representations of the ventilation sys-
tem are schematic diagrams. The device is mounted
permanently on the ceiling for all maintenance tas-
ks. The installation position shown is not possible.
58
9
57
56
2
1
13
55
1
3
4
60
6
60
5
5
M+P-26A-2069
1. Remove screws Torx 25 (55) (Arrow 1).
2. Open all locks (56) and unhook brackets (57) (Arrow 2).
3. Remove cover (58) (Arrow 3).
4. Remove condensate line, see page 12.
5. Take out condensate tray (9) (Arrow 4).
6. Remove covers (60) (Arrow 5).
7. Clean fan blades of the extract air fan (6) and the su-
pply air fan (13) with a brush.
8. The installation takes place in the reverse sequence.
9. Reconnect condensate line, see page 12.
