520-202-000 9/03 Model S20 Non-Metallic Design Level 2 Page 16
RuppGUARD
™
Option for TPE
Equipped Pumps Drawing
59
36
55
36
49
27
41
36
55
36
41
27
49
36
55
36
36
55
36

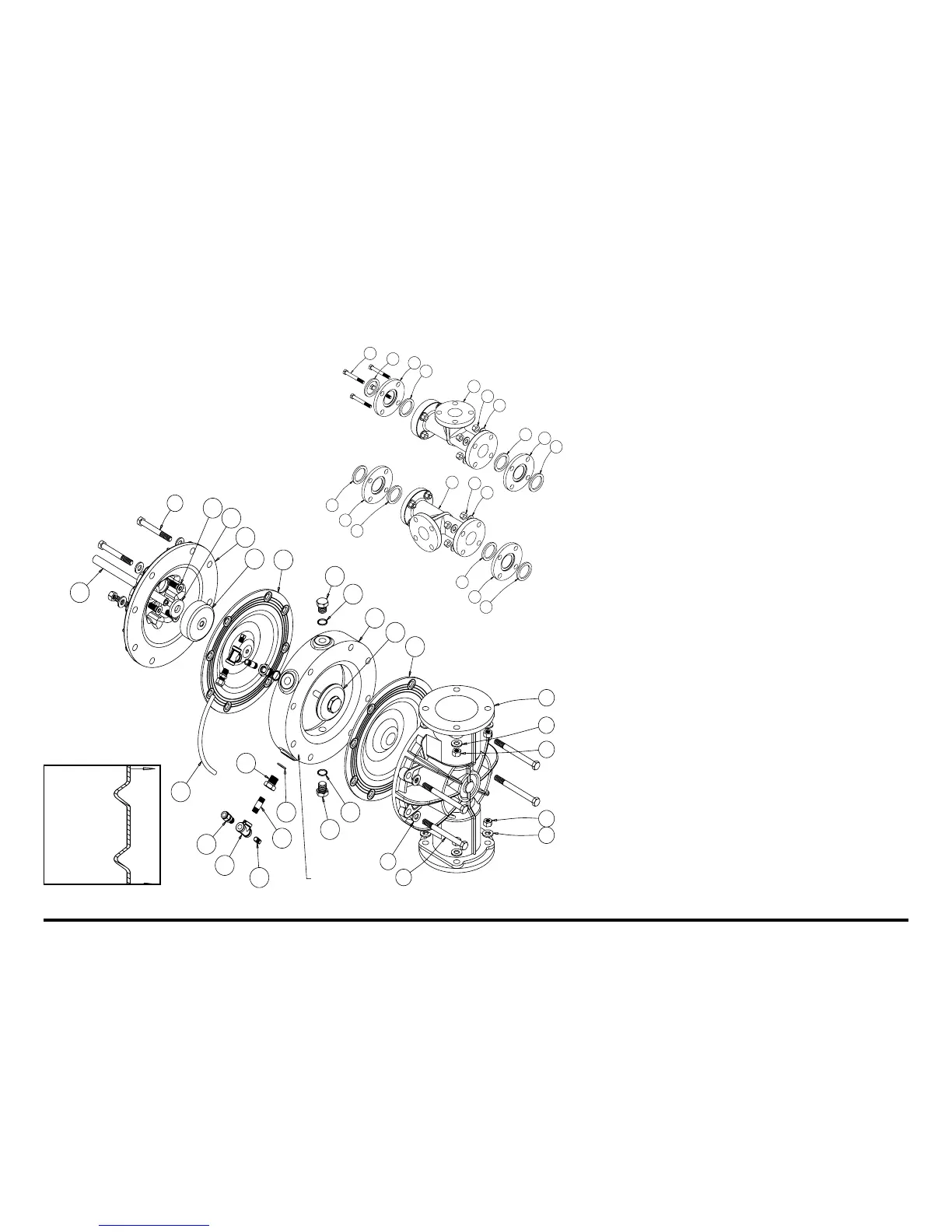

S20 Spill Prevention for
TPE Equipped Pumps Repair Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 031-146-000 Air Valve Assembly 1
(replaces 031-140-000)
031-147-000 Air Valve Assembly 1
(replaces 031-141-000)
45 170-092-115 Capscrew, Hex HD 1/2-13 x 4.00 8
170-092-308 Capscrew, Hex HD 1/2-13 x 4.00 8
(replaces 170-068-115)
46 170-108-115 Capscrew, Hex HD 1/2-13 x 5.50 8
(replaces 170-095-115)
170-108-308 Capscrew, Hex HD 1/2-13 x 5.50 8
(replaces 170-095-115)
47 196-149-520 Chamber, Spill Prevention 2
196-149-552 Chamber, Spill Prevention 2
48 286-081-354 Diaphragm, Pumping 2
49 518-134-520 Manifold, Spill Prevention 2
(replaces 518-132-520)
518-134-520E Manifold, 50mm DIN 2
518-134-552 Manifold, Spill Prevention 2
(replaces 518-132-552)
518-134-552E Manifold, 50mm DIN 2
50 538-022-110 Pipe, Nipple 4
538-022-308 Pipe, Nipple 4
51 560-078-611 O-ring 8
52 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
53 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
54 618-031-110 Plug, Boss 4
618-031-308 Plug, Boss 4
55 770-057-600 Spacer, Manifold 4
770-057-552 Spacer, Manifold 4
56 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
57 860-055-606 Tube, Sight 2
58 866-060-110 Connector, Tube 4
59 170-111-115 Capscrew, Hex HD 5/8-11 x 3.25 16
(replaces 170-110-600)
Note: The diaphragms are to be installed with the concave
side facing toward the outer chambers. See drawing.
33
45
13
6
16
30
18
57
51
50
52
56
58
54
53
51
40
46
40
26
26
40
17
29
47
51
53
48
Note:
All of
the diaphragms
are to be
installed with
the concave
side facing
toward the
outer
chambers.
Suction
Manifold
Discharge
Manifold
Flat side of spill
prevention chamber
(item 47), to face outer
chamber (item 17)
