Sandpiper S20 - SOLENOID SHIFTED AIR VALVE PARTS LIST

520-202-000 9/03 Model S20 Non-Metallic Design Level 2 Page 22
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes all items used on Composite Repair Parts List except as shown)
ITEM PART NUMBER DESCRIPTION QTY
60 893-097-000 Solenoid Valve, NEMA4 1
61 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
62 241-001-000 Connector, conduit 1
63 170-061-115 Capscrew, Hex HD 3/8-16 x 1.75 4
64 618-052-506 Plug 2
For Explosion Proof Solenoid Valve
(Connector not required for explosion proof coil; coil is integral with valve)
60 893-098-001 Solenoid Valve, NEMA 7/9, 24VDC 1
893-098-002 Solenoid Valve, NEMA 7/9, 24VAC/12VDC 1
893-098-003 Solenoid Valve, NEMA 7/9, 120VAC 1
893-098-004 Solenoid Valve, NEMA 7/9, 220VAC 1

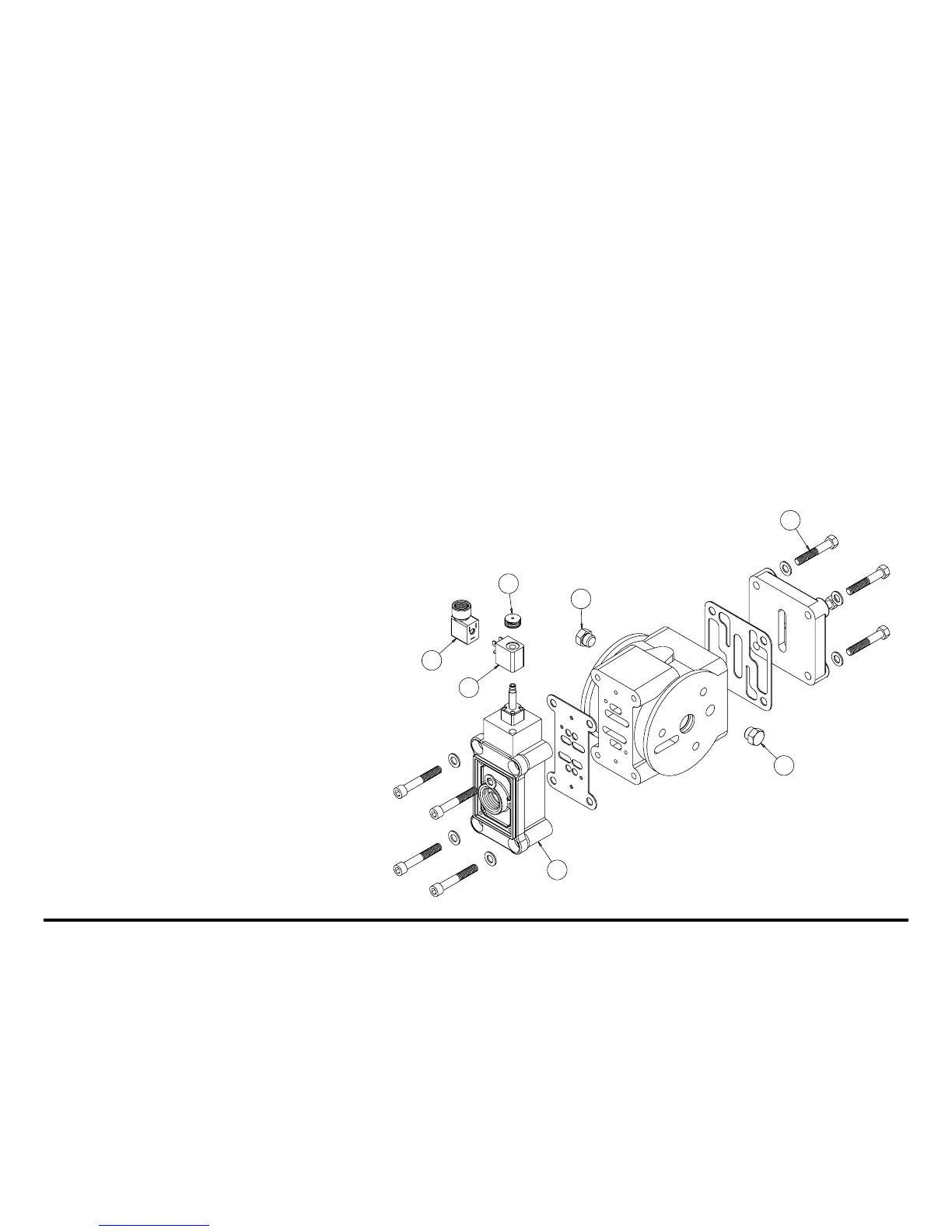

Solenoid Shifted Air Valve Drawing
62
60
64
64
63
61
60
