520-202-000
9/03
Model S20 Non-Metallic Design Level 2 Page 6

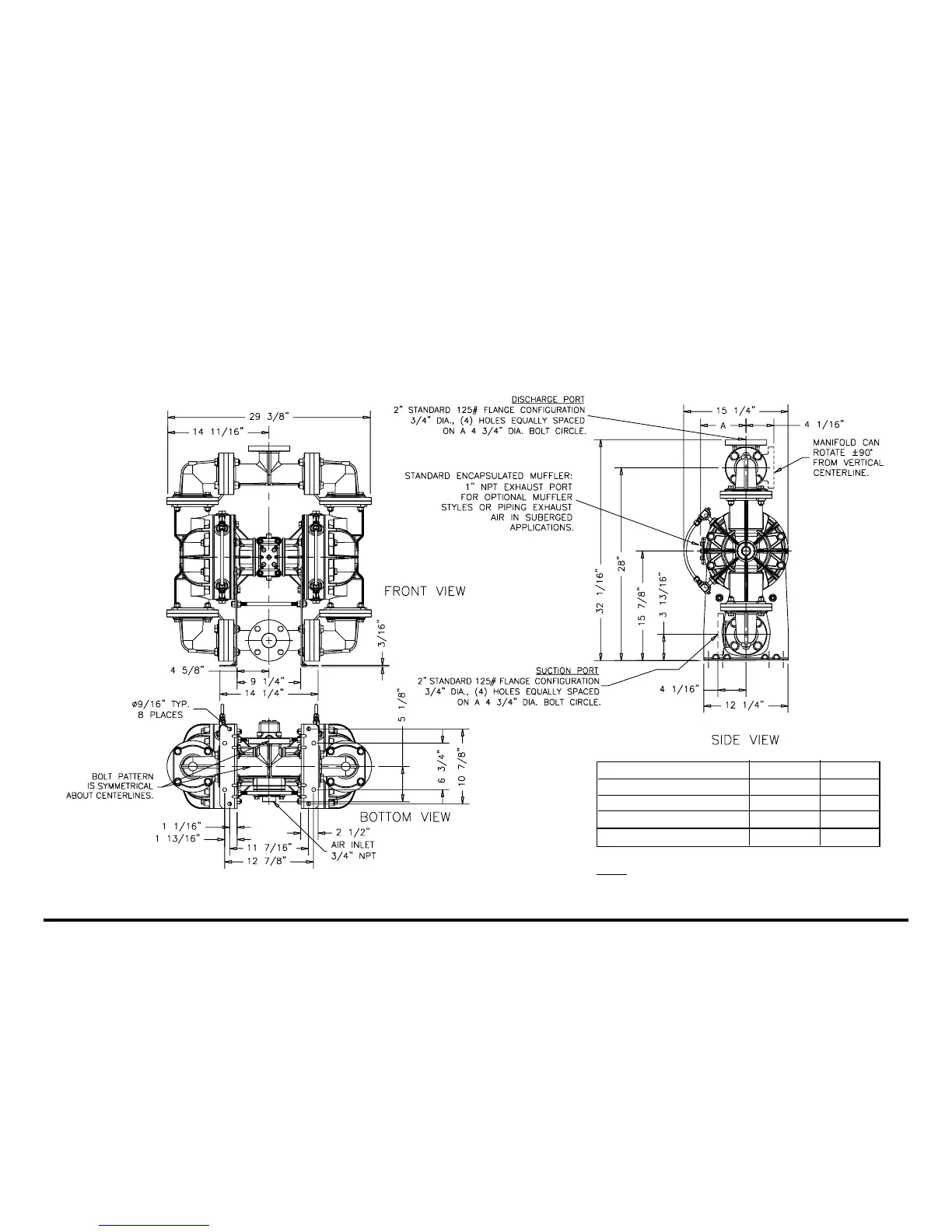

Dimensions: S20 Non-Metallic
with RuppGU
ARD™ Spill Prevention
Dimension
Standard Pump
A
B
6 9/16"
7 15/16"
Pulse Output Kit
3M Muffler
Mesh Muffler
12 11/16"
14 1/16"
12 9/16"
18 11/16"
8 13/16"
14 15/16"
Note:
P
or
ting Flanges are also a
vaible with
PN10 40mm DIN bolting configuration.
Dimensions in Inches
Dimensional tolerance: ±
1
/
8
"
7
9
Table of Contents
Table of Contents
1
Engineering Data and Temperature Limitations
3
Model S20 Non-Metallic Design Level
4
Explanation of Pump Nomenclature
4
Performance Curve, Model S20 Non-Metallic Design Level 2
5
Dimensions: S20 Non-Metallic
6
Metric Dimensions: S20 Non-Metallic
7
Dimensions: S20 Non-Metallic with Spill Prevention
8
Metric Dimensions: S20 Non-Metallic with Spill Prevention
9
Principle of Pump Operation
10
Installation and Start-Up
10
Air Supply
10
Air Valve Lubrication
10
Air Line Moisture
10
Air Inlet and Priming
10
Between Uses
10
Installation Guide
11
Important Safety Information
12
Material Codes
12
Troubleshooting
13
Warranty
13
Composite Repair Parts Drawing
14
Overlay Option Drawing
14
Composite Repair Parts List
15
Ruppguard™ Spill Prevention Option for Virgin PTFE Equipped Pumps
16
Ruppguard™ Spill Prevention Repair Parts List
16
Ruppguard™ Spill Prevention Concept
17
Ruppguard™ Spill Prevention Option Diaphragm Servicing
17
Filling Ruppguard™ Chambers with Liquid
17
Ruppguard™ Spill Prevention Option for TPE Equipped Pumps
18
Ruppguard™ Spill Prevention Repair Parts List
18
Ruppguard™ Spill Prevention Concept with TPE Diaphragms
19
Ruppguard™ Spill Prevention Option with TPE Diaphragm
19
Air Distribution Valve Assembly Drawing
20
Main Air Valve Assembly Parts List
20
Air Distribution Valve Servicing
21
Air Distribution Valve with Stroke Indicator Options
22
Air Distribution Valve with Stroke Indicator Parts List
22
Air Distribution Valve with Stroke Indicator Servicing
23
Solenoid Shifted Air Valve Drawing
24
Solenoid Shifted Air Valve Parts List
24
Solenoid Shifted Air Distribution Valve Option
25
Pilot Valve Assembly Drawing
26
Pilot Valve Assembly Parts List
26
Pilot Valve Servicing
27
Diaphragm Service Drawing, Non-Overlay
28
Diaphragm Service Drawing, with Overlay
28
Diaphragm Servicing
29
Overlay Diaphragm Service
29
Pumping Hazardous Liquids
30
Converting the Pump for Piping the Exhaust Air
30
Exhaust Conversion Drawing
30
Converted Exhaust Illustration
30
Modular Check Valve Servicing
31
Modular Check Valve Drawing
31
Dual Port Option Drawing
32
Dual Porting Options
33
Dual Porting of both Suction and Discharge Ends of the Pump
33
Single Porting of the Suction and Dual Porting of the Pump Discharge
33
Dual Porting of the Suction and Single Porting of the Pump Discharge
33
Leak Detection Options Drawing
34
Rupptech® Electronic Leak Detector Installation
34
Mechanical Leak Detector Installation
34
Rupptech® Pulse Output Kit Drawing
35
Rupptech® Pulse Output Kit Option
35
Exhaust Port or Auxiliary Muffler Setup
35
Integral Muffler Setup
35
Declaration of Conformity
36
Warren Rupp
36
