13
Connections
GB
Connecting an AV Device with an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) and supports HDCP (High-Bandwidth Digital Content
Protection) Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI1 /
HDMI2 input socket to the external AV device’s HDMI
output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the bottom under the frame.
3. Press the
button on the bottom panel of the TV or
the
POWER button on the remote control to turn
on your TV.
4. Press the SOURCE button on the remote control
to display the Input Source. Use the
buttons
to select HDMI1 or HDMI2 and then press the OK
button to confirm.

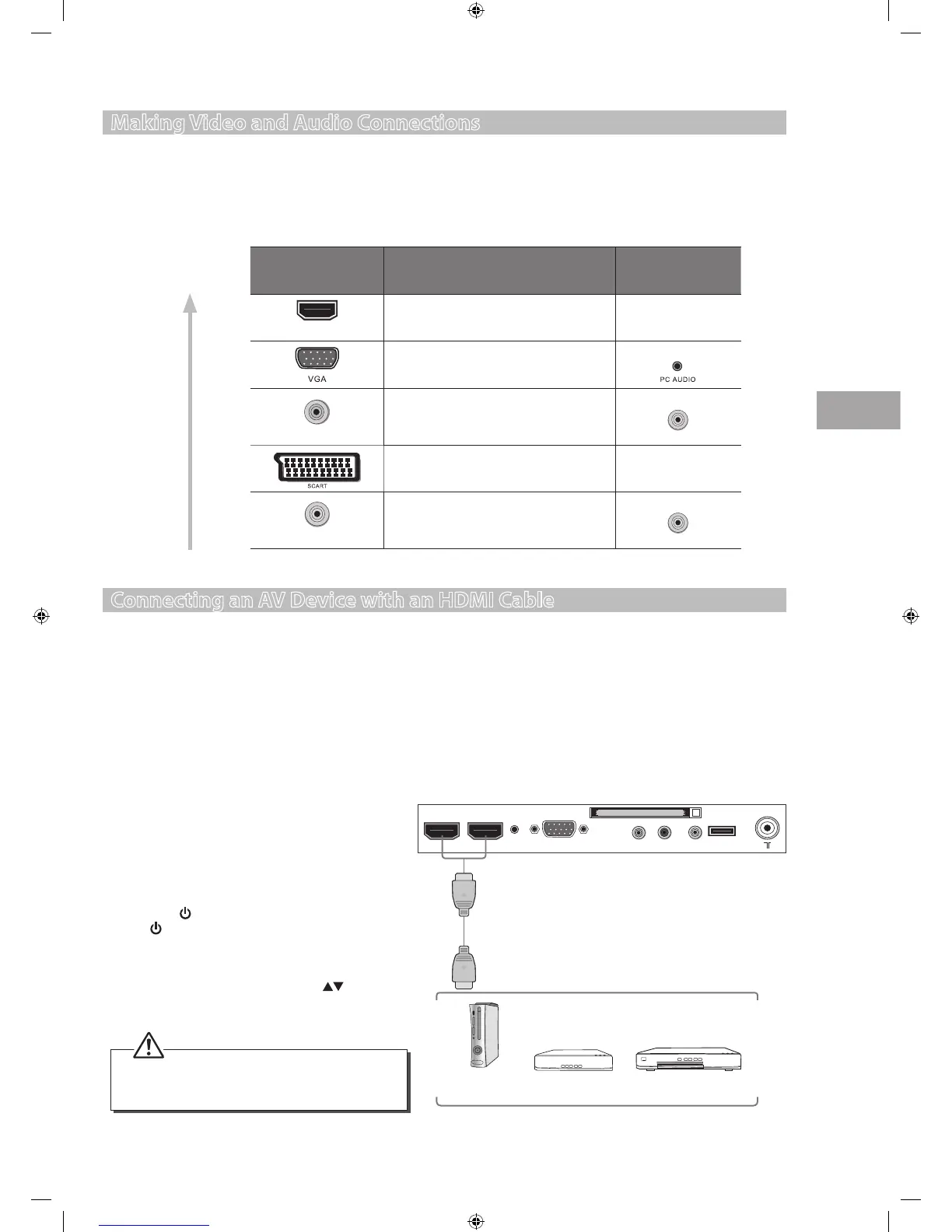

Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
HDMI
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
VGA
Yes
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Yes
A/V IN
SCART (RGB Input) No
A/V IN
Composite Video
Yes
A/V IN
Best Video
Performance
Connections
Rear Left side of TV
HDMI1 HDMI2 VGA Y/Pb/Pr A/V IN HP USB
Common Interface
PC
audio
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
HDMI Cable
(not included)
Although this TV is able to connect to an HDMI
device, it is possible that some devices may not
operate correctly.
S24LED11_IB_111014_Zell.indd 13 14/10/2011 3:36 PM
