14
Connections
GB

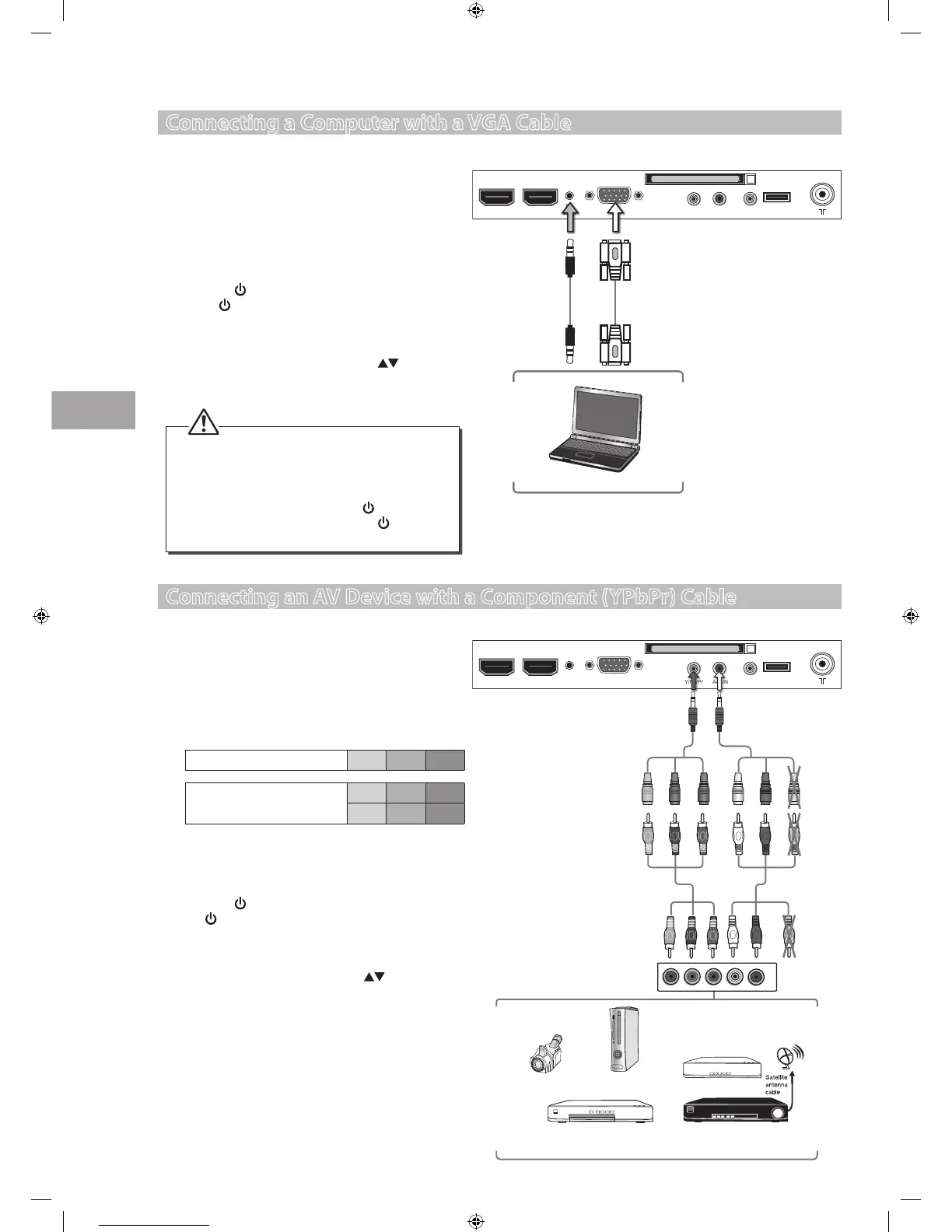

Connecting an AV Device with a Component (YPbPr) Cable
1. Connect the component adapter cable and a
component cable from the TV’s YPbPr input socket to
an external AV device’s component output sockets.
2. Connect the A/V adapter cable and an AV cable to
the TV’s A/V IN socket to the external AV device’s
component audio sockets. (Audio Left = white, and
Audio Right = red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the bottom under the frame.
4. Press the
button on the bottom panel of the TV or
the
POWER button on the remote control to turn
on your TV.
5. Press the SOURCE button on the remote control to
display the Input Source. Use the
buttons to
select Component and then press the OK button to
confirm.
Connecting a Computer with a VGA Cable
1. Use a VGA cable to connect the TV’s VGA input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the bottom under the frame.
3. Press the
button on the bottom panel of the TV
or the
POWER button on the remote control to
turn on your TV.
4. Press the SOURCE button on the remote control
to display the Input Source. Use the
buttons
to select PC-RGB and then press the OK button to
confirm.
Rear Left side of TV
VGA Cable
(not included)
Audio Cable
(not included)
HDMI1 HDMI2 VGA Y/Pb/Pr A/V IN HP USB
Common Interface
PC
audio
Computer
• The best resolution is 1920 x 1080.
• If your computer is set to shut down after a few
minutes of idle mode, the TV will also switch
to standby due to no signal being received,
this is to save energy. Press the
button on
the bottom panel of the TV or the
POWER
button on the remote control to restart the TV.
HDMI1 HDMI2 VGA Y/Pb/Pr A/V IN HP USB
Common Interface
PC
audio
Rear Left side of TV
L
R
COMPONENT
OUT
Y
Pr
Pb
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
Component Cable
(not included)
Component
Adapter Cable
(not included)
Pb/Cb
Pr/Cr
Y
A/V Cable
(not included)
A/V Adapter Cable
(not included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
Red (R)
Yellow (Video)
White (L)
Blue (Pb/Cb)Blue (Pb/Cb)
Red (Pr/Cr)Red (Pr/Cr)
Green (Y)Green (Y)
S24LED11_IB_111014_Zell.indd 14 14/10/2011 3:36 PM
