16
TV GAME
IN VIDEO-3
IN VIDEO-3

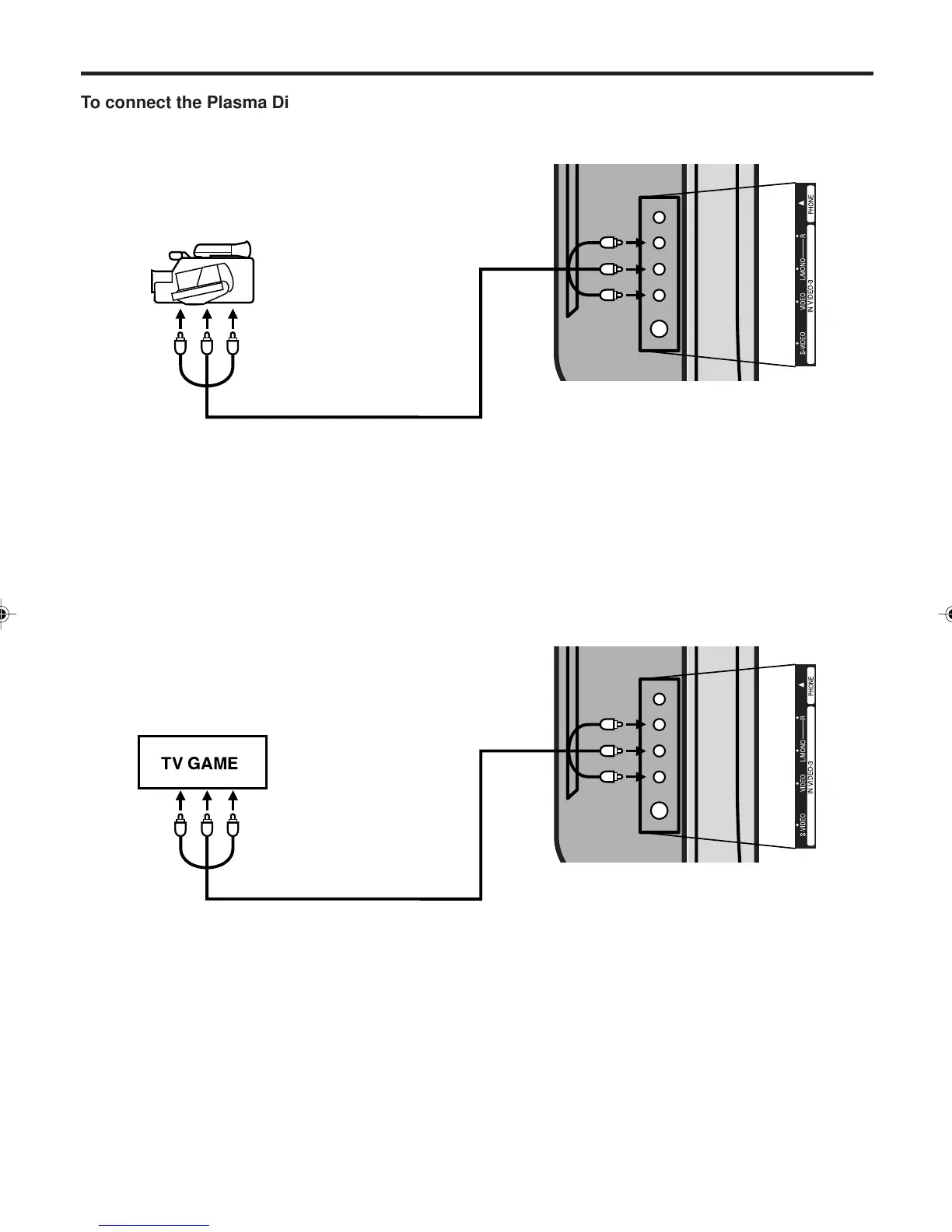

To connect the Plasma Display to a camcorder
To connect the Plasma Display to a Game
The Plasma Display can also be used as a display device for many video games. However, due to the wide
variety of signals generated by these devices and subsequent hook-up variations required, they have not all
been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual
for additional information.
To playback from a camcorder, connect the camcorder to the Plasma Display as shown.
Side of the Plasma Display
Audio/Video cord (not supplied)
To Audio/Video OUT
Side of the Plasma Display
To Audio/Video OUT
Audio/Video cord (not supplied)
Connections to other equipment
