SANY SY60C - Switches

MACHINE CONTROLS
3-17
SY60C Excavator OMM
Switches
0002750, 0002751

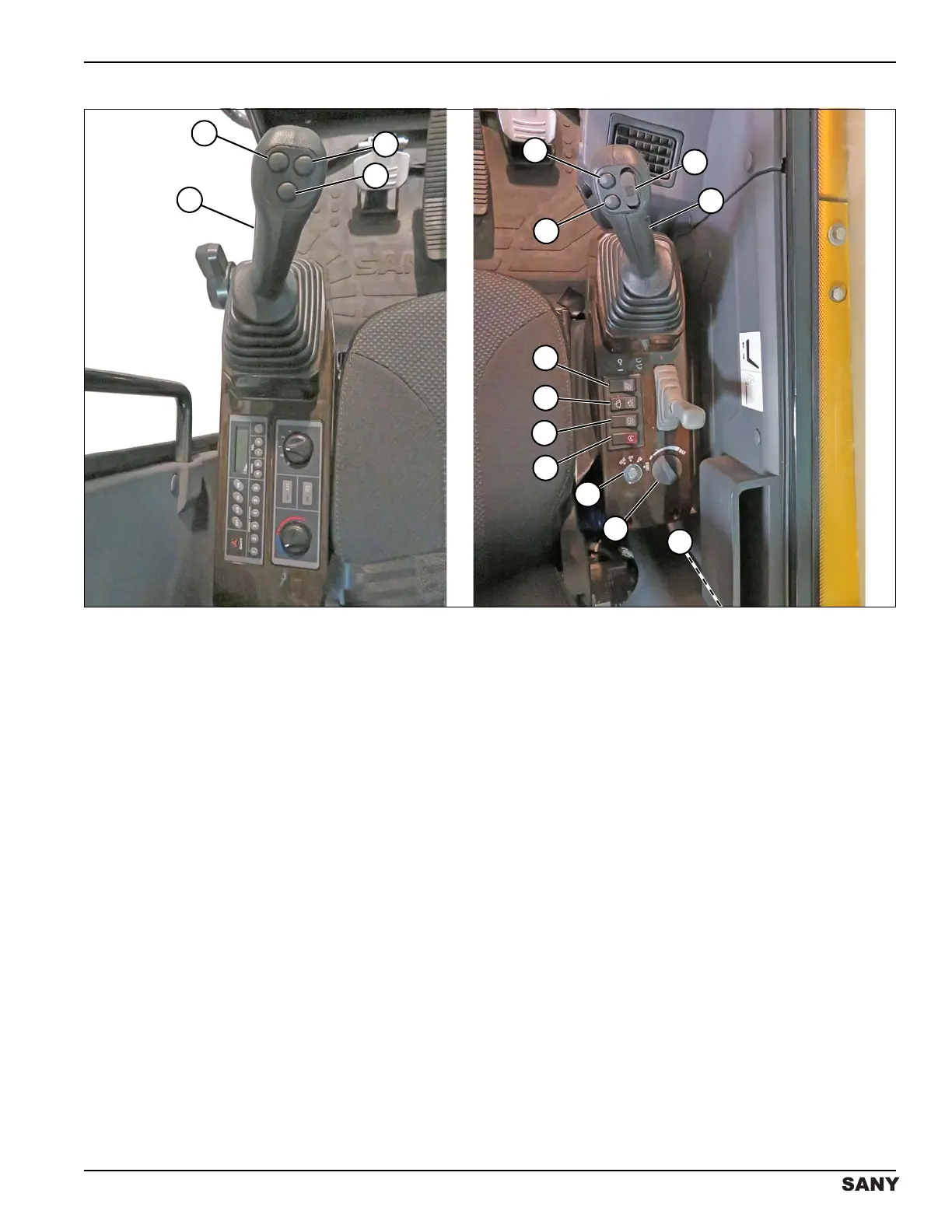

Figure 3-23
1 Left joystick (page 3-23) 9 Work light switch (page 3-18)
2 Quick coupler function lock (page 3-13) 10 Windshield wiper switch (page 3-18)
3 Quick coupler function unlock (page 3-13) 11 Windshield washer switch (page 3-19)
4 Not used 12 Emergency stop switch (page 3-19)
5 Horn button (page 3-18) 13 Key switch (page 3-19)
6 Not used 14 Throttle control dial (page 3-20)
7 Auxiliary hydraulic switch (page 3-18) 15 Travel alarm switch (not shown, page 3-20)
8
Right joystick (page 3-23)
