Sanyo MPR-721 - Refrigerator Components

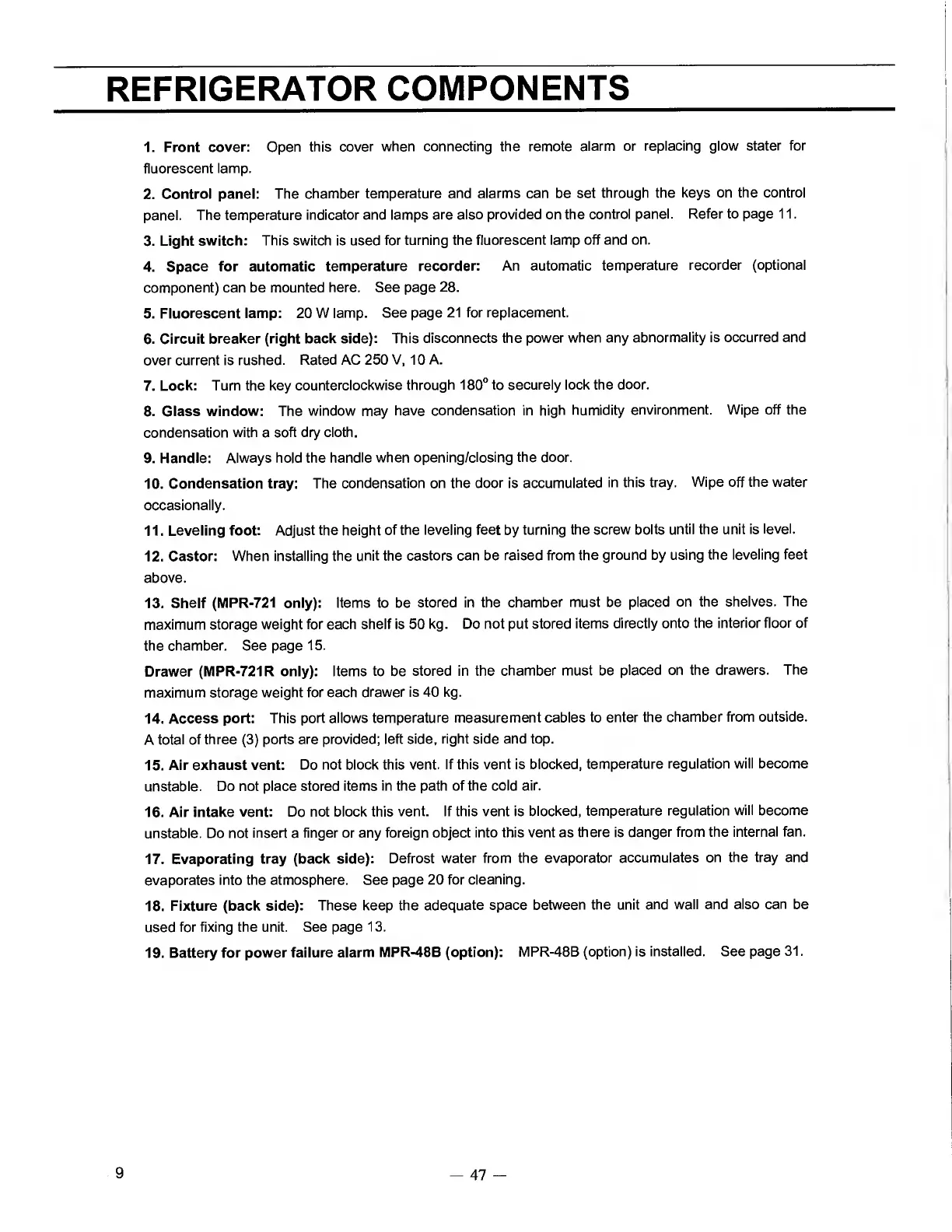

REFRIGERATOR COMPONENTS
1. Front cover: Open this cover when connecting the remote alarm or replacing glow stater for
fluorescent lamp.
2. Control panel: The chamber temperature and alarms can be set through the keys on the control
panel. The temperature indicator and lamps are also provided on the control panel. Refer to page 11.
3. Light switch: This switch is used for turning the fluorescent lamp off and on.
4. Space for automatic temperature recorder: An automatic temperature recorder (optional
component) can be mounted here. See page 28.
5. Fluorescent lamp: 20 W lamp. See page 21 for replacement.
6. Circuit breaker (right back side): This disconnects the power when any abnormality is occurred and
over current is rushed. Rated AC 250 V, 10 A.
7. Lock: Turn the key counterclockwise through 180° to securely lock the door.
8. Glass window: The window may have condensation in high humidity environment. Wipe off the
condensation with a soft dry cloth.
9. Handle: Always hold the handle when opening/closing the door.
10. Condensation tray: The condensation on the door is accumulated in this tray. Wipe off the water
occasionally.
11. Leveling foot: Adjust the height of the leveling feet by turning the screw bolts until the unit is level.
12. Castor: When installing the unit the castors can be raised from the ground by using the leveling feet
above.
13. Shelf (MPR-721 only): Items to be stored in the chamber must be placed on the shelves. The
maximum storage weight for each shelf is 50 kg. Do not put stored items directly onto the interior floor of
the chamber. See page 15.
Drawer (MPR-721 R only): Items to be stored in the chamber must be placed on the drawers. The
maximum storage weight for each drawer is 40 kg.
14. Access port: This port allows temperature measurement cables to enter the chamber from outside.
A total of three (3) ports are provided; left side, right side and top.
15. Air exhaust vent: Do not block this vent. If this vent is blocked, temperature regulation will become
unstable. Do not place stored items in the path of the cold air.
16. Air intake vent: Do not block this vent. If this vent is blocked, temperature regulation will become
unstable. Do not insert a finger or any foreign object into this vent as there is danger from the internal fan.
17. Evaporating tray (back side): Defrost water from the evaporator accumulates on the tray and
evaporates into the atmosphere. See page 20 for cleaning.
18. Fixture (back side): These keep the adequate space between the unit and wall and also can be
used for fixing the unit. See page 13.
19. Battery for power failure alarm MPR-48B (option): MPR-48B (option) is installed. See page 31.
