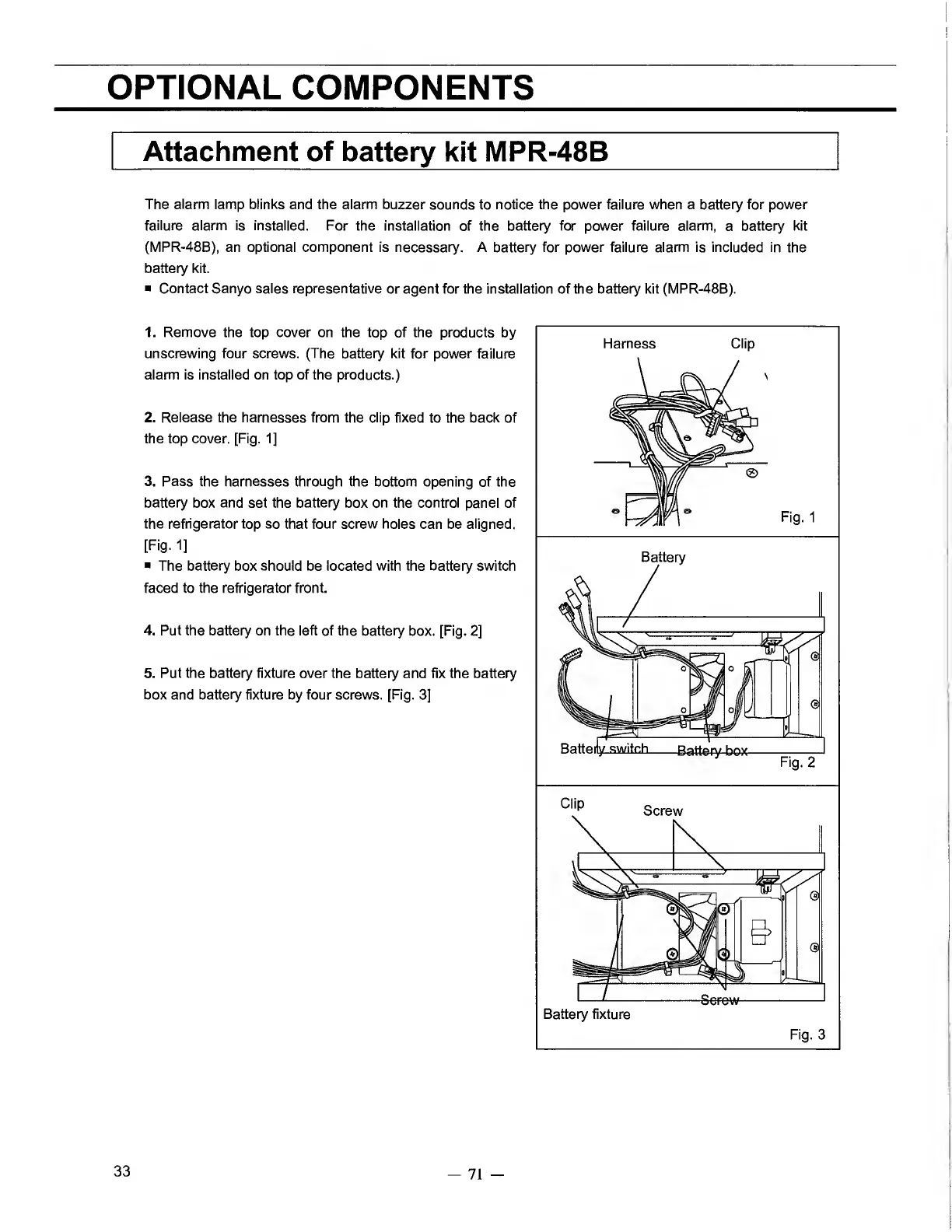

Sanyo MPR-721 - OPTIONAL COMPONENTS; Attachment of battery kit MPR-48 B

OPTIONAL COMPONENTS
Attachment of battery kit MPR-48B
The alarm lamp blinks and the alarm buzzer sounds to notice the power failure when a battery for power
failure alarm is installed. For the installation of the battery for power failure alarm, a battery kit
(MPR-48B), an optional component is necessary. A battery for power failure alarm is included in the
battery kit.
■ Contact Sanyo sales representative or agent for the installation of the battery kit (MPR-48B).
1. Remove the top cover on the top of the products by
unscrewing four screws. (The battery kit for power failure
alarm is installed on top of the products.)
2. Release the harnesses from the clip fixed to the back of
the top cover. [Fig. 1]
3 . Pass the harnesses through the bottom opening of the
battery box and set the battery box on the control panel of
the refrigerator top so that four screw holes can be aligned.
[Fig. 1]
■ The battery box should be located with the battery switch
faced to the refrigerator front.
4 . Put the battery on the left of the battery box. [Fig. 2]
5. Put the battery fixture over the battery and fix the battery
box and battery fixture by four screws. [Fig. 3]
