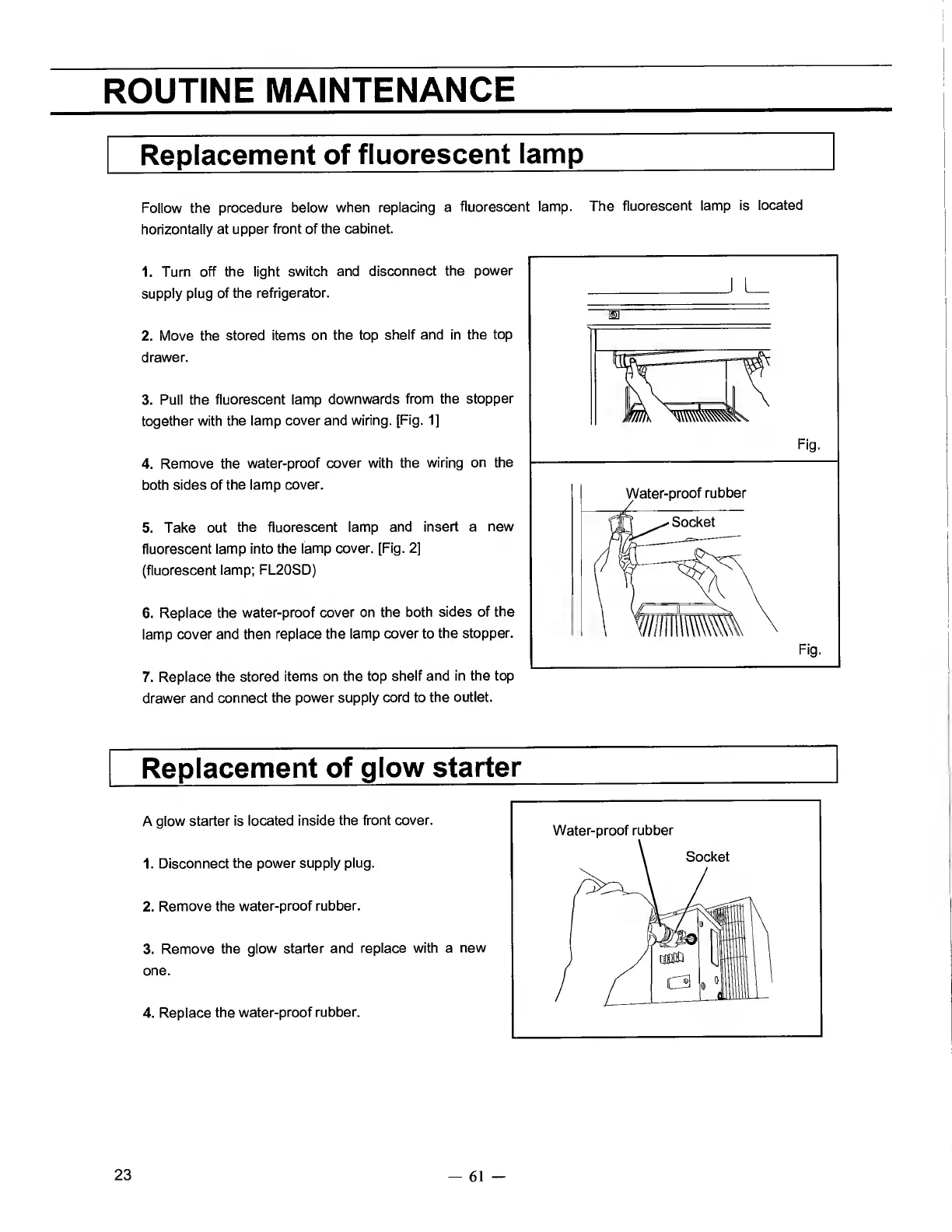

ROUTINE MAINTENANCE
Replacement of fluorescent lamp
Follow the procedure below when replacing a fluorescent lamp. The fluorescent lamp is located
horizontally at upper front of the cabinet.
1. T urn off the light switch and disconnect the power
supply plug of the refrigerator.
2. Move the stored items on the top shelf and in the top
drawer.
3. Pull the fluorescent lamp downwards from the stopper
together with the lamp cover and wiring. [Fig. 1]
4. Remove the water-proof cover with the wiring on the
both sides of the lamp cover.
5. T ake out the fluorescent lamp and insert a new
fluorescent lamp into the lamp cover. [Fig. 2]
(fluorescent lamp; FL20SD)
6. R eplace the water-proof cover on the both sides of the
lamp cover and then replace the lamp cover to the stopper.
7. R eplace the stored items on the top shelf and in the top
drawer and connect the power supply cord to the outlet.
J L_
Replacement of glow starter
A glow starter is located inside the front cover.
1. Disconnect the power supply plug.
2. Remove the water-proof rubber.
3. Remove the glow starter and replace with a new
one.
4. Replace the water-proof rubber.
Water-proof rubber
