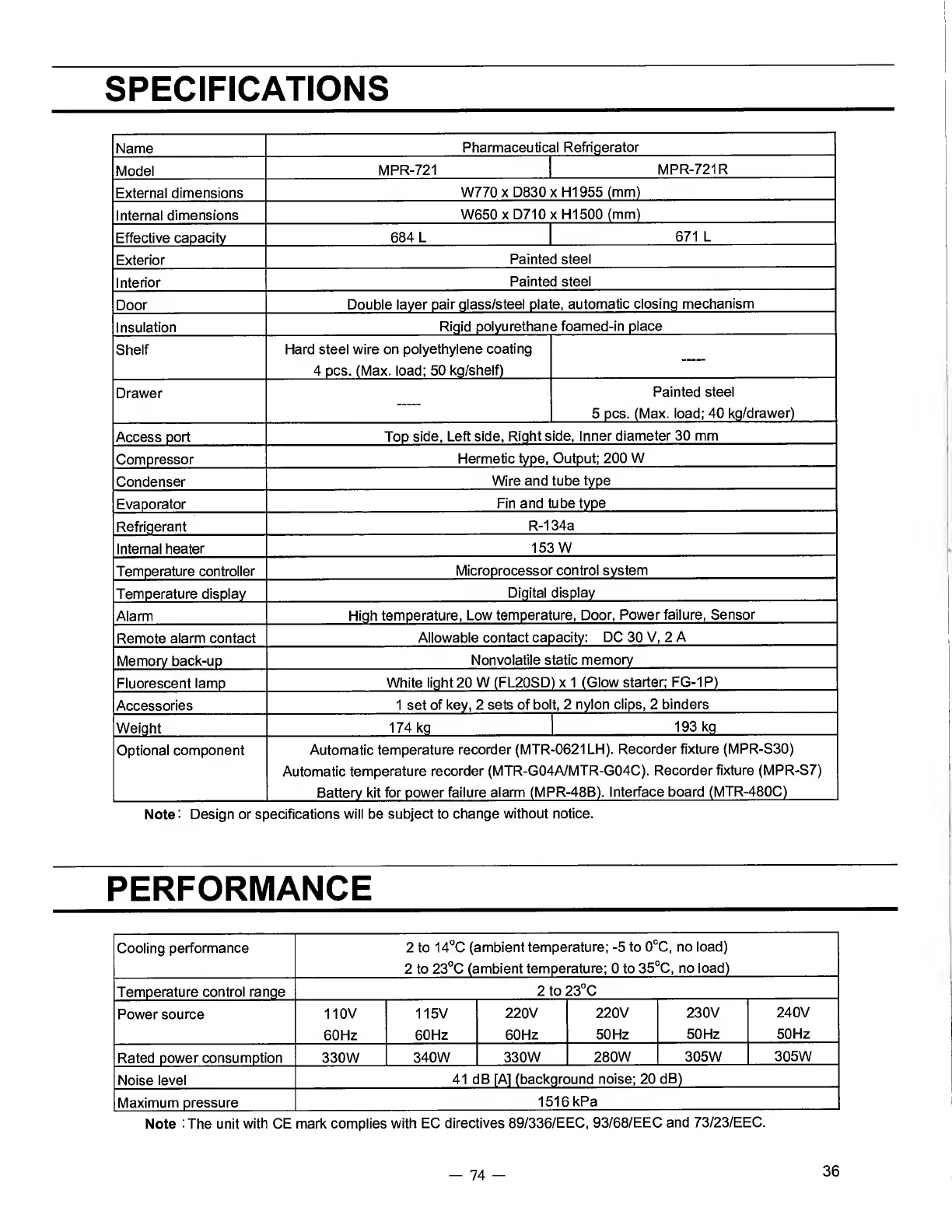

Sanyo MPR-721 - SPECIFICATIONS; PERFORMANCE

SPECIFICATIONS
Model
External dimensions
Internal dimensions
MPR-721
Pharmaceutical Refrigerator
W770 x D830 x HI955 (mm
W650 x D710 x H1500 (mm
MPR-721 R
Exterior
Interior
Condenser
Evaporator
Refrigerant
Internal heater
Temperature controller
Alarm
Remote alarm contact
Painted steel
Painted steel
Double layer pair qlass/steel plate, automatic closing mechanism
Rigid polvurethane foamed-in place
Hard steel wire on polyethylene coating
4 pcs. (Max. load; 50 kg/shelf)
Painted steel
5 pcs. (Max. load; 40 kq/drawer)
Top side, Left side, Right side, Inner diameter 30 mm
Hermetic type, Output; 200 W
Wire and tube type
Fin and tube type
R-134a
153 W
Microprocessor control system
Digital displa
High temperature, Low temperature, Door, Power failure, Sensor
Allowable contact capacity: DC 30 V, 2 A _
Nonvolatile static memo
White light 20 W (FL20SD) x 1 (Glow starter; FG-1P
1 set of key, 2 sets of bolt, 2 nylon clips, 2 binders
193 k
Optional component
Automatic temperature recorder (MTR-0621LH). Recorder fixture (MPR-S30)
Automatic temperature recorder (MTR-G04A/MTR-G04C). Recorder fixture (MPR-S7)
Battery kit for power failure alarm (MPR-48B). Interface board (MTR-480C)
Note : Design or specifications will be subject to change without notice.
PERFORMANCE
Cooling performance
2 to 14°C (ambient temperature; -5 to 0°C, no load)
2 to 23°C (ambient temperature; 0 to 35°C, no load)
Temperature control range
2 to 23°C
Power source
110V
60Hz
115V
60Hz
220V
60Hz
220V
50 Hz
230V
50 Hz
Rated power consumption 330W
340W
330W
280W 305W
305W
Noise level
41 dB [A] (background noise; 20 dB)
Maximum pressure
1516 kPa
Note :The unit with CE mark complies with EC directives 89/336/EEC, 93/68/EEC and 73/23/EEC.
— 74 -
36
