Step from previous procedure.
3 Remove 6 screws C to take the Optical Unit upward upward off.
To mount optical unit, mount optical unit first then mount the Lamp assembly
and Lamp Cover.
-12-
Mechanical Disassemblies
1 Remove 8 screws A to take the Power Board ass’y
upward off.
2 Remove 4 screws B to take the P. F. Board from the
Power Board.
3 Remove 3 screws C to take the Power Board holder
from the Cabinet Bottom.

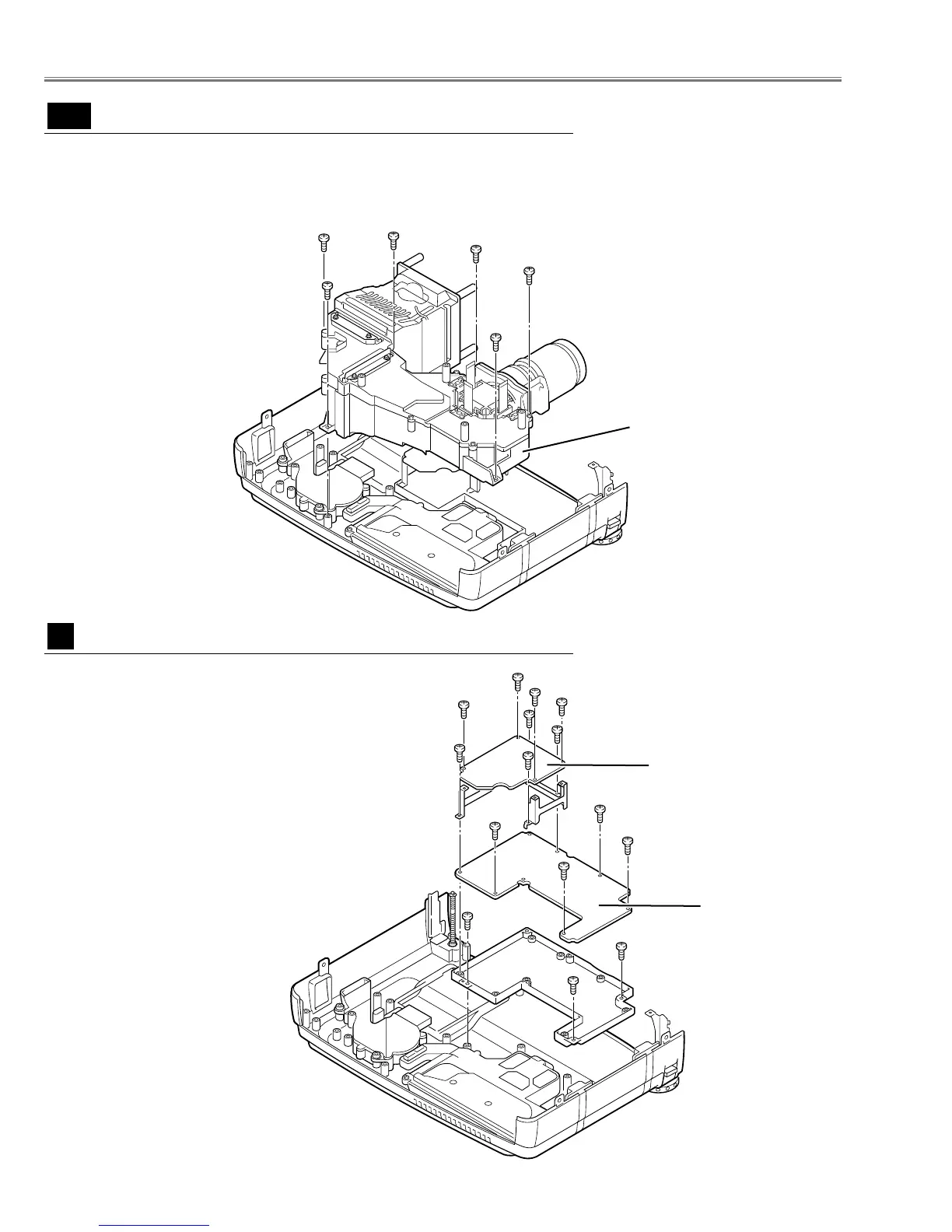

Fig.9
Power and P.F. Board removal
9
A
Power board
A
A
A
A
A
A
A
B
B
B
B
C
C
C
P. F. board
Fig.8-2
Optical Unit removal
8
-2
Optical unit
C
C
C
C
C
C
