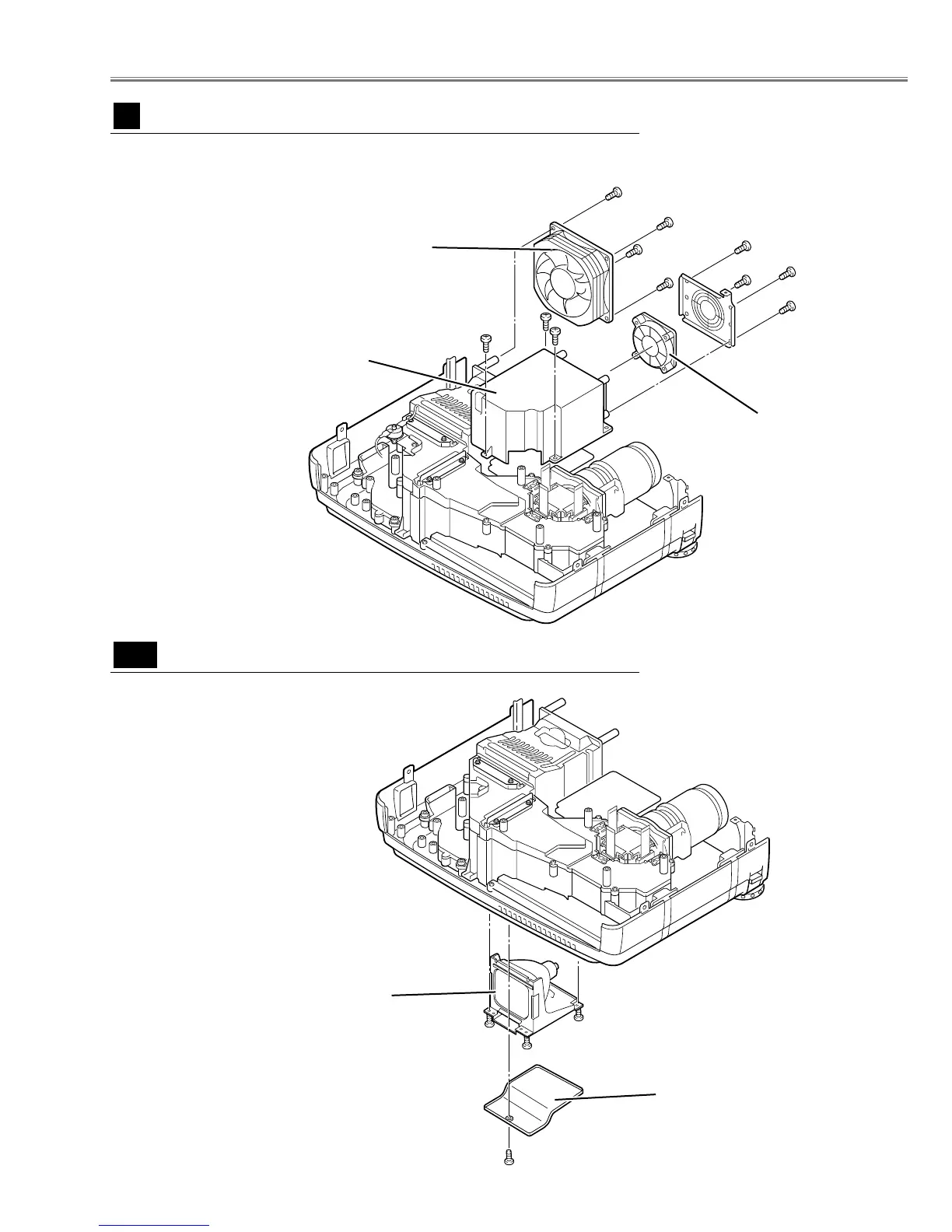

1 Remove 4 screws A to take the Fan(FN901) off.
2 Remove 4 screws B to take the Fan(FN905) off.
3 Remove 3 screws C to take the Power Box Cover upward off.
Mechanical Disassemblies
1 Remove 1 screw A to take the Lamp Cover off.
2 Loosen 3 screws B to take the Lamp assembly by
pulling the handle.
Step to next procedure.
Fig.8-1
Fig.7
Power Box Cover and Fans(FN901, FN906) removal
7
Optical Unit removal
8
-1
A
A
A
A
B
BB
B
C
C
C
FN901
FN906
Power box cover
Lamp cover
Lamp ass’y
A
B
B
B
To Next Page
