-10-

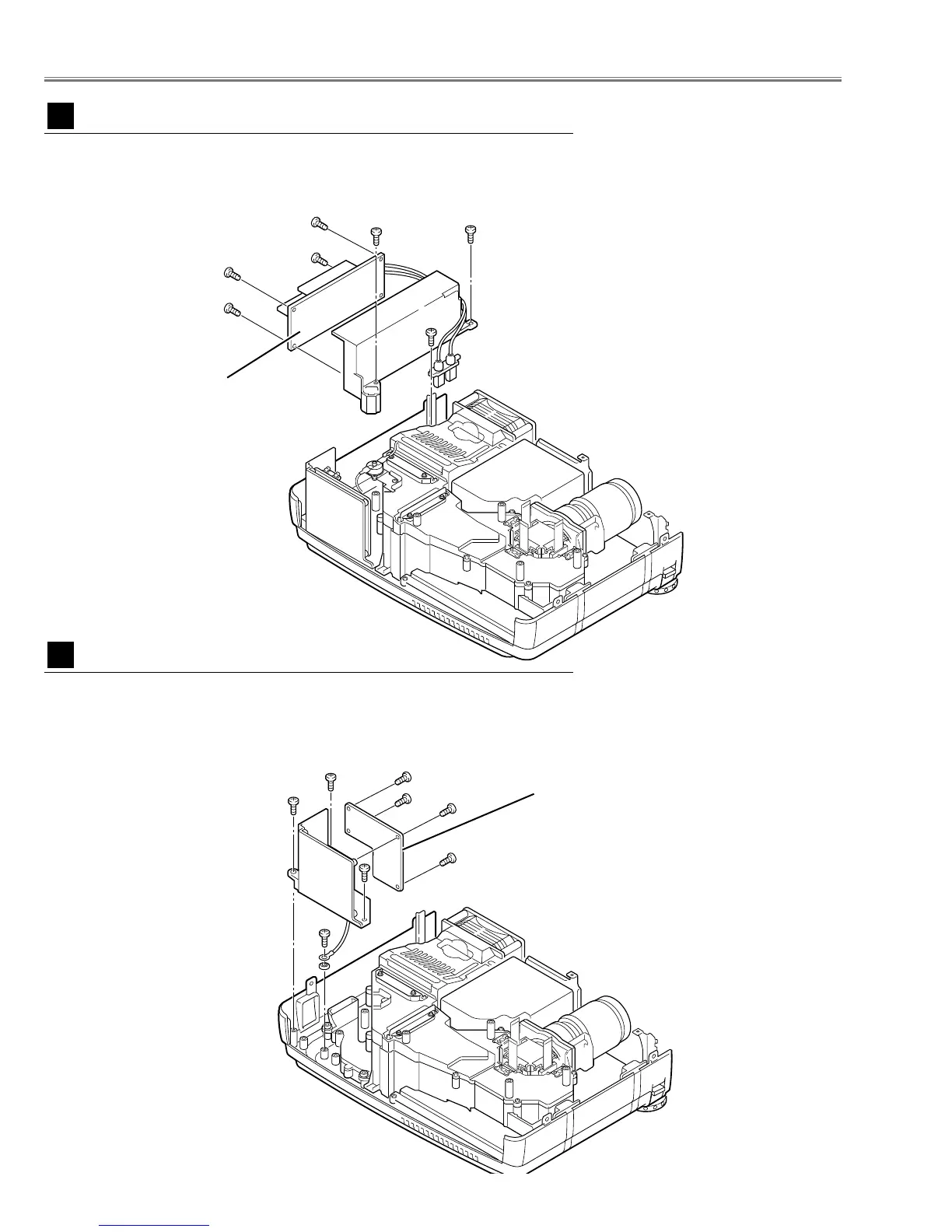

Mechanical Disassemblies
1 Remove 1 screw A and disconnect the Lamp Socket.
2 Remove 2 screws B to take the Lamp Ballast ass’y upward off.
3 Remove 4 screws C to take the Lamp Ballast Board off.
Fig.5
1
Remove 3 screws A and pull the Filter Board ass’y upward.
2 Remove 1 screw B to take the grounding lead from the cabinet bottom.
3 Remove 4 screws C to take the Filter Board off.
Fig.6
Lamp Ballast Unit removal
5
Filter Board removal
6
A
Lamp ballast board
BB
C
C
C
C
A
A
A
B
C
C
C
C
Filter board
To Next Page
