Sanyo PLC PLC-ET30L Service Manual

-22-
Mechanical Disassembly
6-2
Lens cover ass'y removal-2.
1. Remove 2 screws-A(T3X8) and remove the Stopper button.
2. Remove the Button, remove the Spring and remove the Holder.
7
Optical engine removal.
1. Remove 5 screws-A(T3X10) and remove the Optical engine.
A
A
A
A
A
A
A

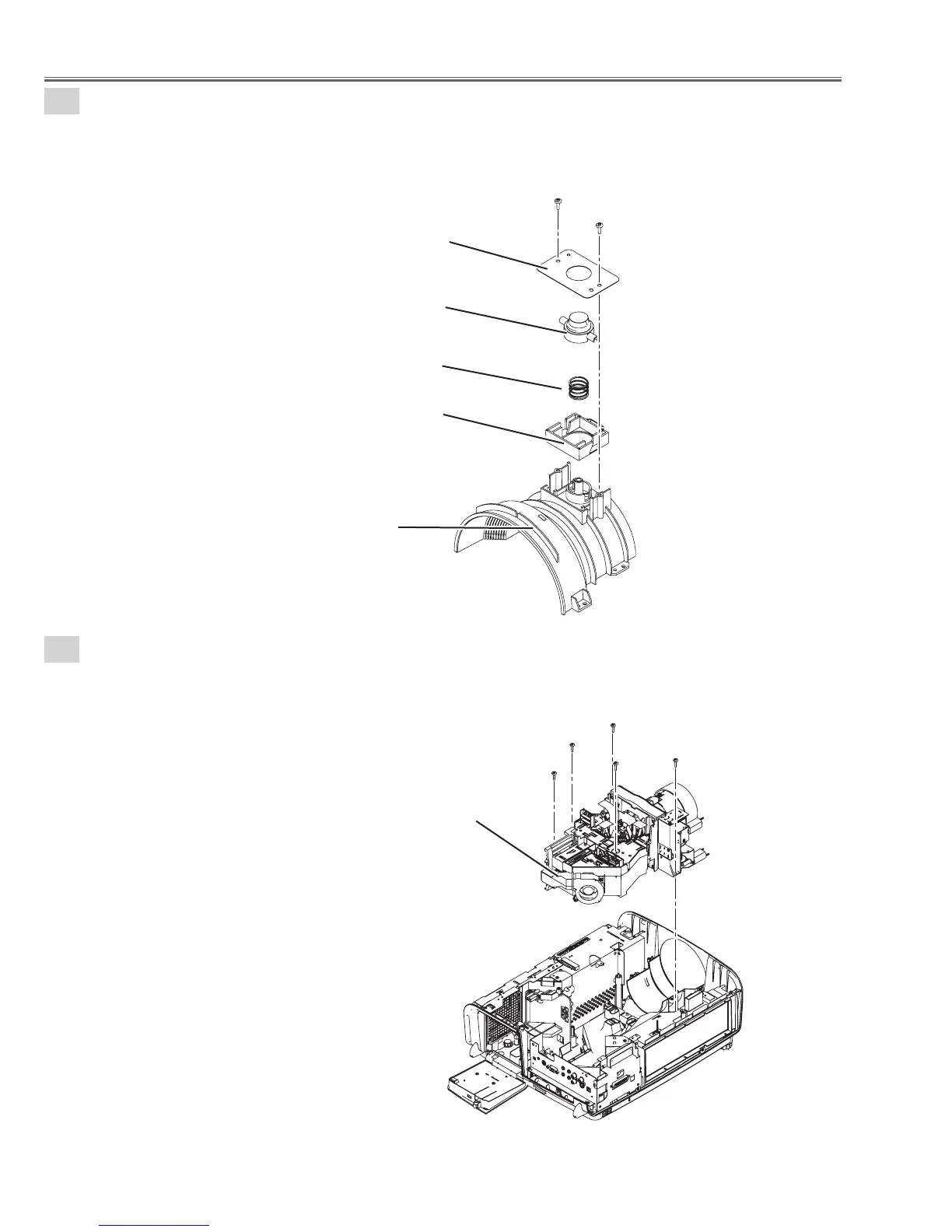

Fig. 6-2
Fig. 7
Stopper button
Button
Spring
Holder
Lens cover top
Optical engine
