-52-
Optical Adjustment
White
CY
AN
MAGENT
A
White
CY
AN
MAGENT
A

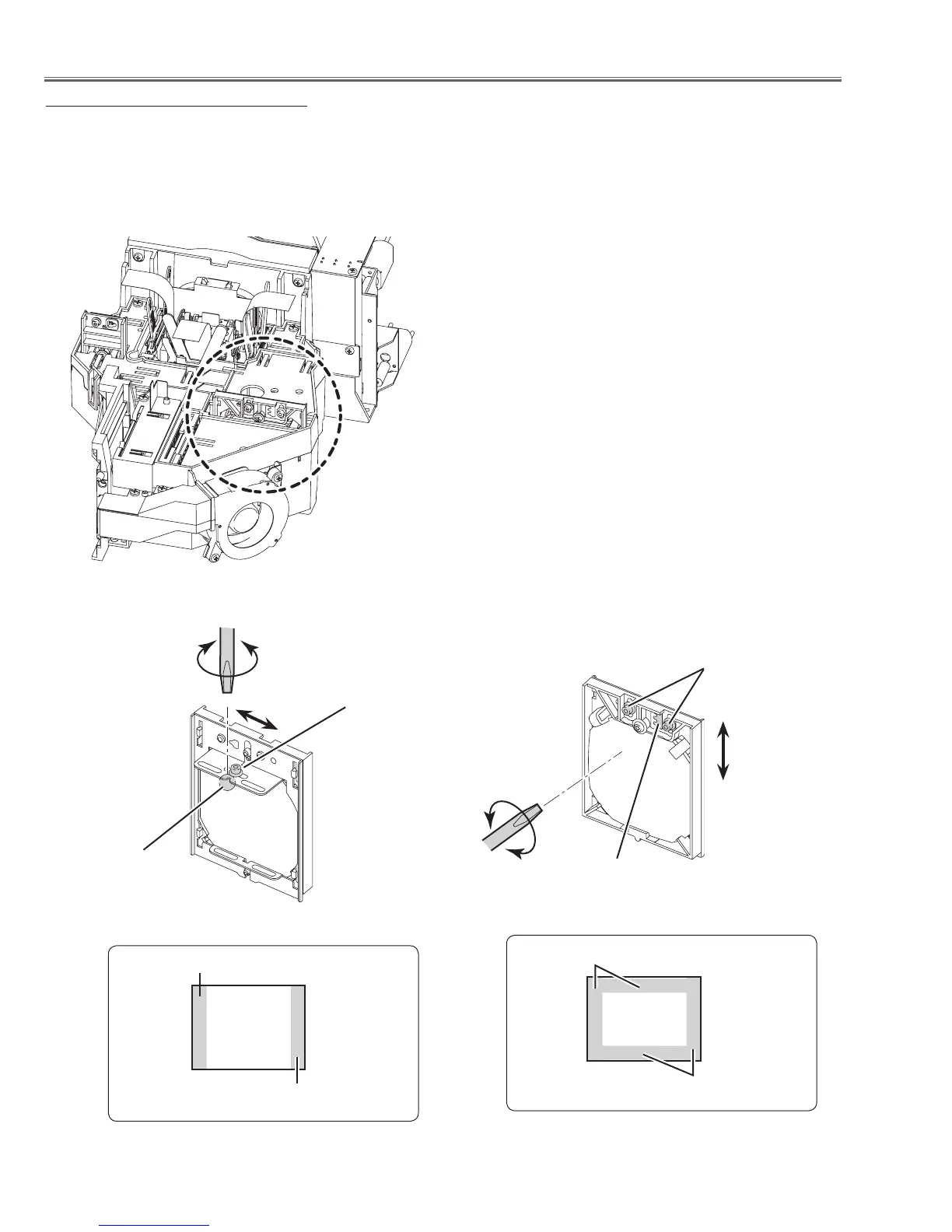

Condenser lens adjustment-1
1.
Adjust the slot E to make shading appears on the right and left(magenta and cyan) of
the screen as shown in figure.
2.
Adjust the slot F to make shading appears on the top and bottom(cyan and magenta)
of the screen as shown in figure.
Condenser lens adjustment -1
Slot-E
Slot-F
Screw-A
Screws-B
51
53
