-55-

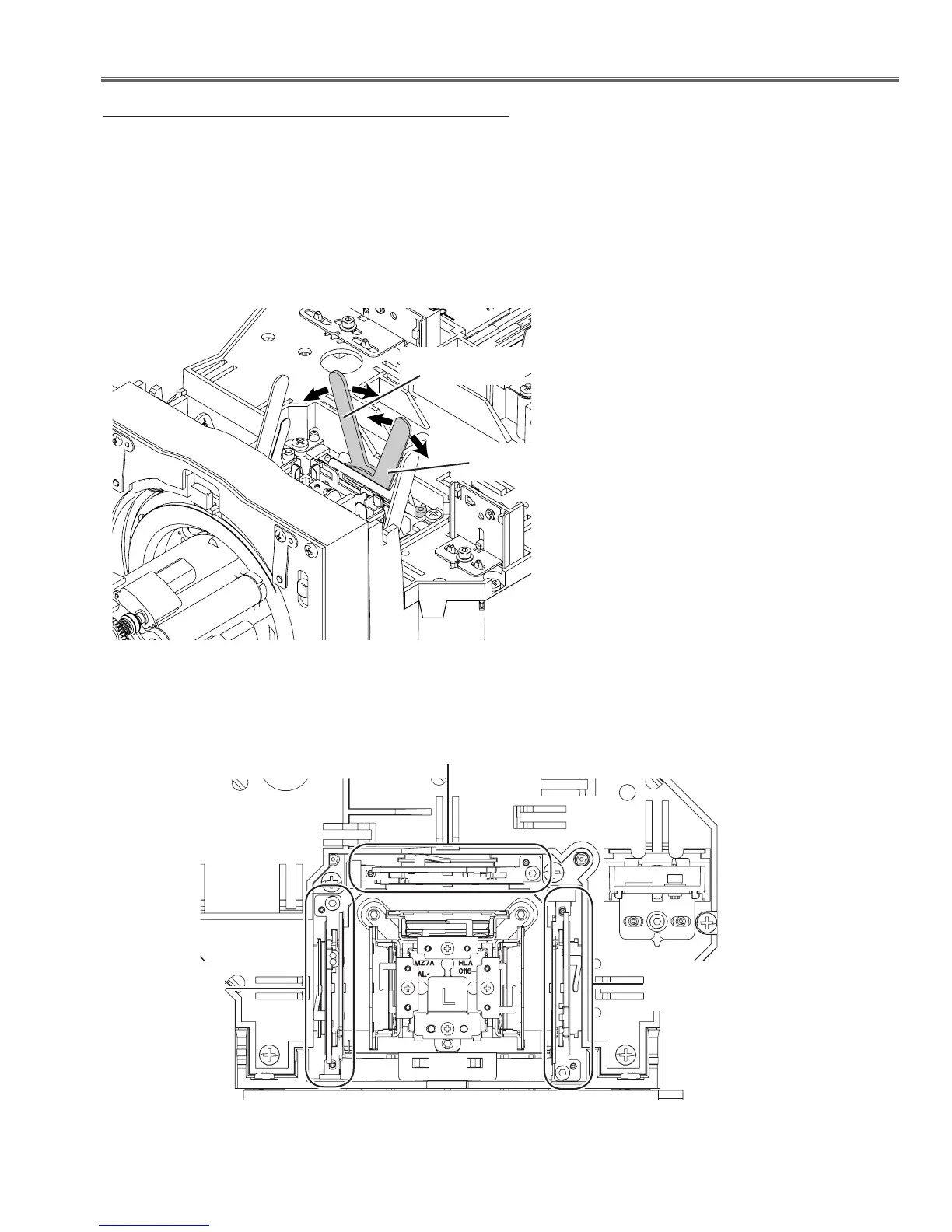

Optical Adjustment
2. Contrast adjustment
OF
POL
Lever-K
1 Select the internal test pattern signal "All black" from the projector's menu "Menu -> Setting -> Test pattern".
2 Turn the lever K (POL) to obtain the darkest brightness and proper black color uniformity on the screen.
3 Turn the lever L (OF) to obtain the darkest brightness and proper black color uniformity on the screen.
Repeat steps 2 to 3 for remaining R and B contrast adjustment.
The adjustment should be taken in order of G-panel, R-panel and B-panel.
This adjustment should be taken in the dark room to adjust precisely.
