-24-
Mechanical Disassembly
9-1

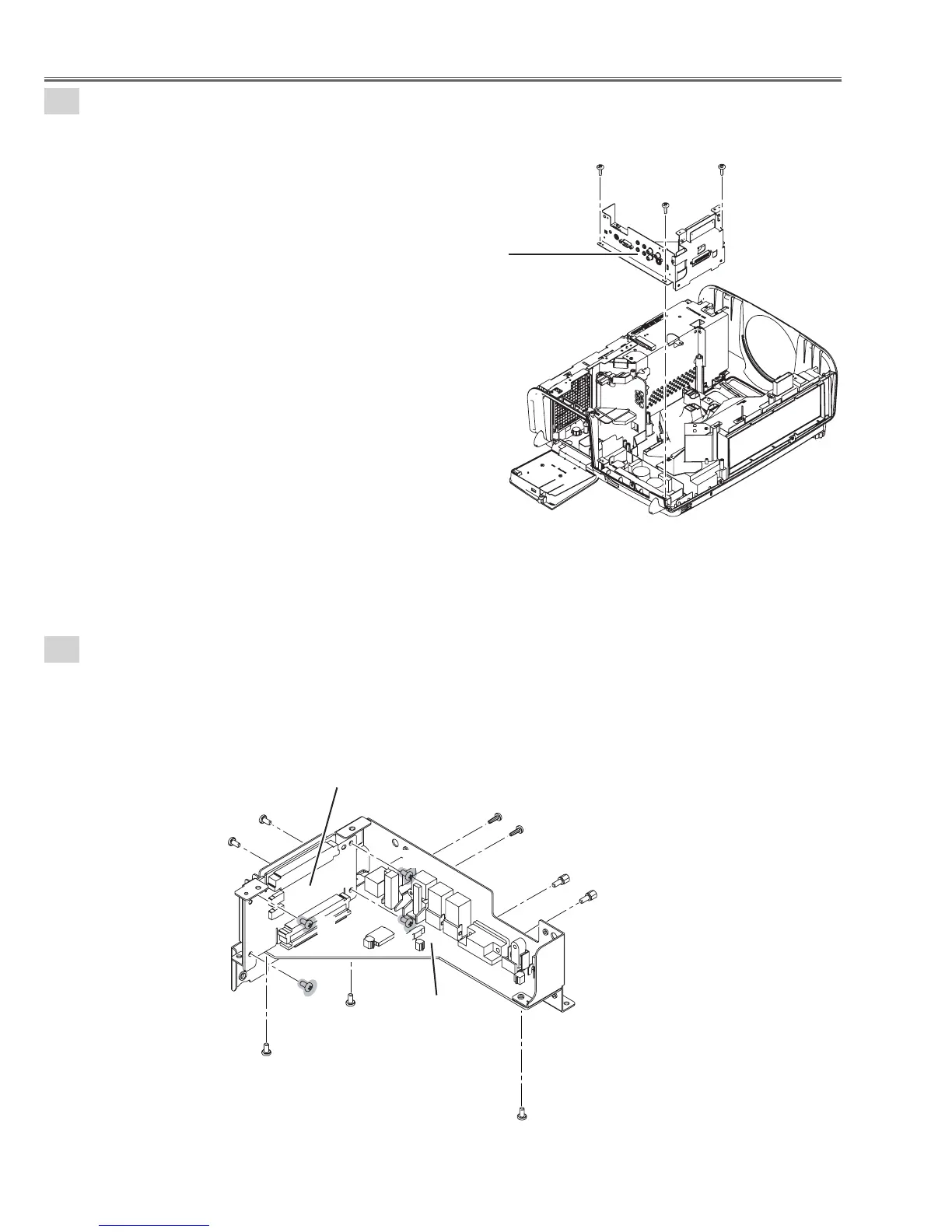

AV board & Network joint board ass'y removal-1.
1. Remove 3 screws-A(T3X8) and remove the AV board & Netwark joint board ass'y.
9-2
AV board & Network joint board ass'y removal-2.
1. Remove 3 screws-A(M3X6), 4 screws-B(T3x8), 2 screws-C(M2.6X10) and 2 screws-D(T3x8)
and 2 nuts-E.
2. Remove the AV board ass'y and remove the Network joint board ass'y.
A
A
A
Fig.9-1
AV board & Network joint board ass'y
Fig.9-2
AV board ass'y
Network joint board ass'y
A
A
B
B
D
D
A
B
B
E
E
C
C
To Next Page
