Sanyo PLC PLC-ET30L Service Manual

-26-
Mechanical Disassembly
11-1

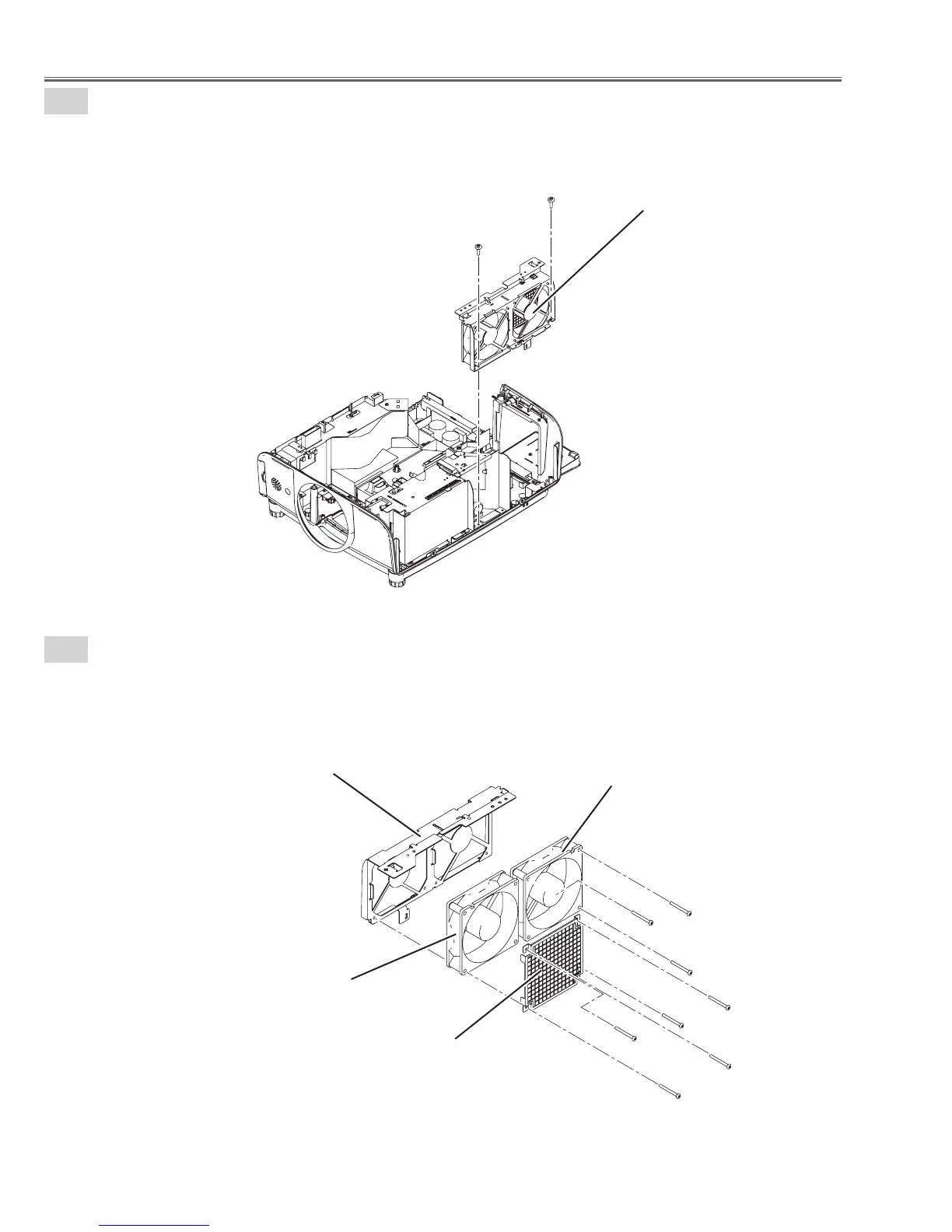

Exhaust Fan(FN901, FN902) ass'y removal-1.
1. Remove 2 screws-A(T3X8) and remove the Exhaust Fan(FN901, FN902) ass'y.
11-2
Exhaust Fan(FN901, FN902) ass'y removal-2.
1. Remove 4 screws-A(M3X28), remove the Fan guard cover and the Fan(FN901).
2. Remove 4 screws-B(M3X28) and remove the Fan(FN902).
A
A
Fig.11-1
Exhaust Fan ass'y
A
A
A
A
B
B
B
B
Fig.11-2
Fan(FN902)
Fan(FN901)
Fan guard cover
Holder Fan
