-13-

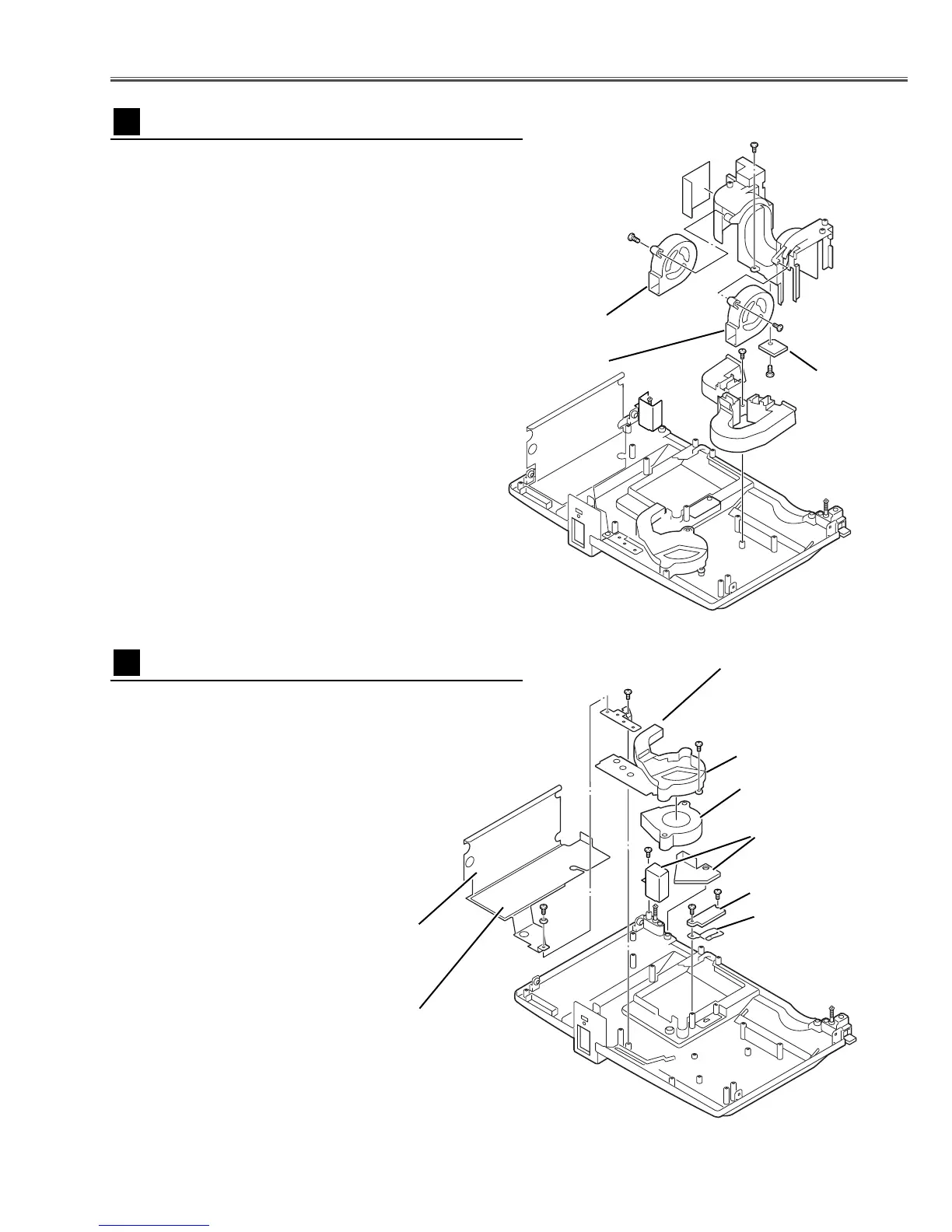

1 Remove 1 screws A (T4x4) to take the shield plate off.
2 Remove 2 screws B (T3x8) to take the Fan (FN901) and
the duct off.
3 Remove 2 screws C (T3x8) to take the SW Board and
the spring off.
Mechanical Disassemblies
Fig.11
FN901 and Lamp Cover SW removal
11
FN901
SW Board
Spring
Earth Plate
Duct
B
B
C
C
1 Remove 1 screw A (T3x8) to take the Duct under the
Panel.
2 Remove 1 screw B (T3x8) to take the Holder with the
Fans(FN902 and FN905) off.
3 Remove 2 screws C (T3x10) to take the Fans (FN902
and FN905) off.
4 Remove 1 screw D (T3x6) to take the Sensor Board off.
Fig.10
FN902, FN905 and Sensor Board removal
10
A
B
C
C
D
Sensor Board
FN902
FN905
Shield Plate
A
Spacer sheet
Spacer
To Next Page
