-16-

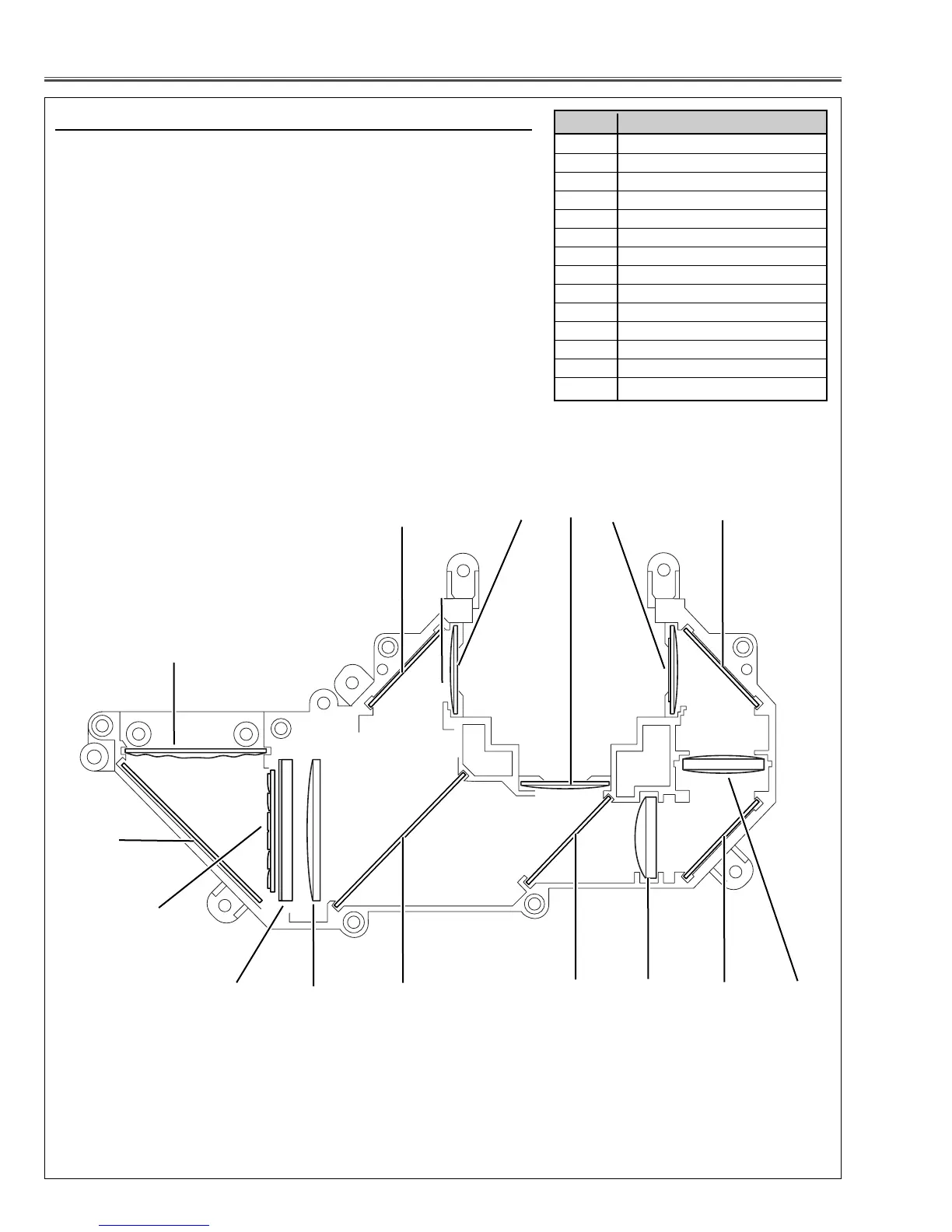

Optical Parts Disassemblies
When the optical parts in the optical unit mounting or assembling, the
parts must be mounted in the specified location and direction as
shown in figure below.
14
12
Fig.5
3
1
2
4
9
Locations and Directions
13
6
1 Integrator lens (IN)
2 Mirror (W)
3 Integrator lens (OUT)
4 PBS (polarizing beam splitter)
5 Condenser lens (IN)
6 Dichroic mirror (B)
7 Dichroic mirror (G)
8Relay lens (IN)
9 Mirror (R)
10 Relay lens (OUT)
11 Condenser lens (R)
12 Condenser lens (G)
13 Condenser lens (B)
14 Mirror (B)
Key No. Description
10
11
5
7 8 9
