-9-

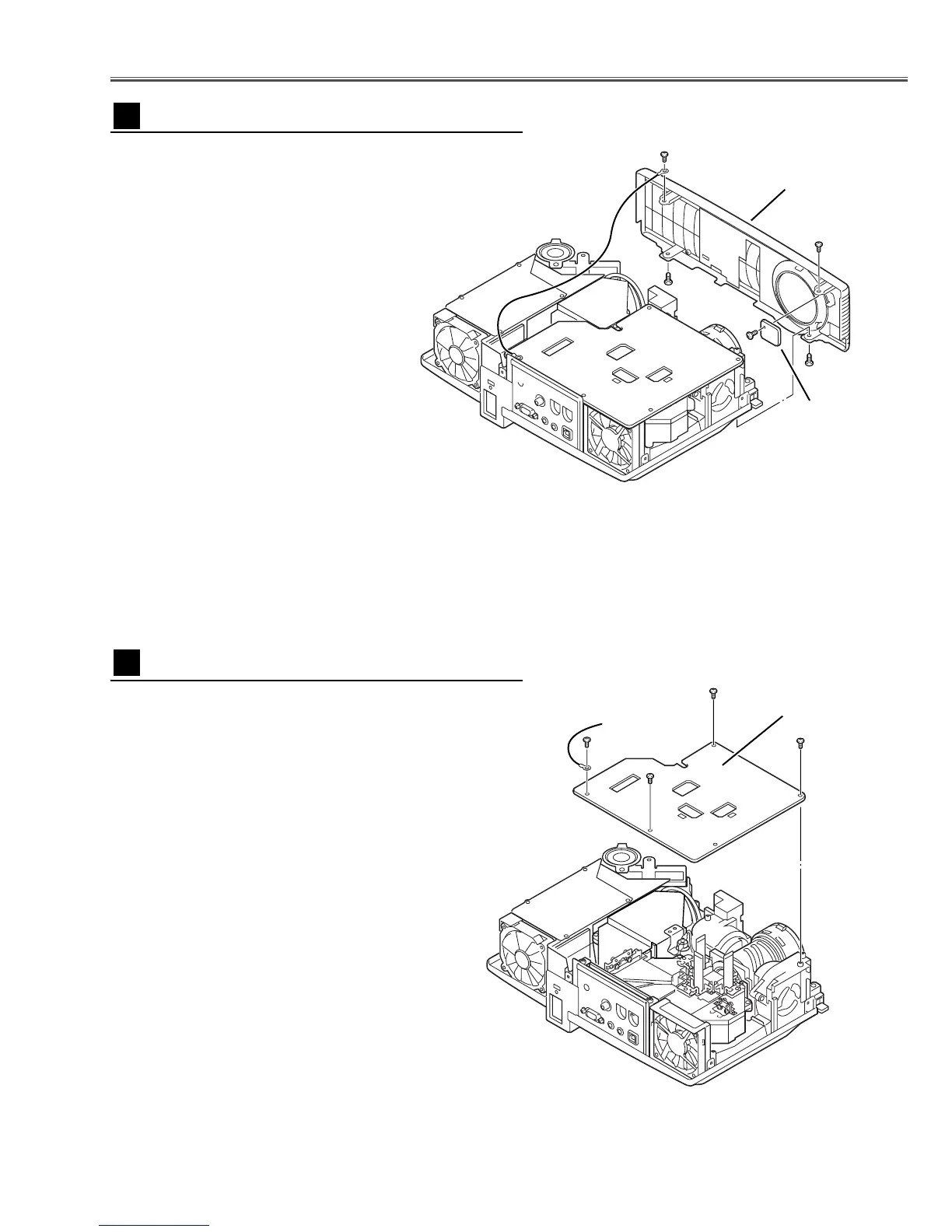

Mechanical Disassemblies
1 Remove 4 screws (M3x6) to take the Main Board upward.
Fig.3
Main Board removal
3
Main Board
1 Remove 2 screws A (M3x6) and 2 screws B (M3x6
black) to take the Cabinet Front off.
2 Remove 1 screw C (T3x6) to the R/C Board on the
Cabinet Front.
Fig.2
Cabinet Front and R/C Board removal
2
C
A
A
B
B
R/C Board
Cabinet Front
